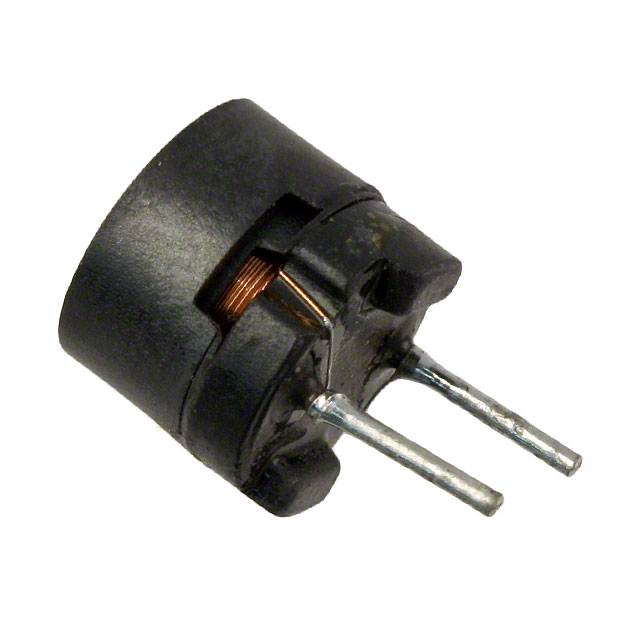

RL875S Series

Catalog

FIXED IND 8.2MH 81MA 30.6 OHM TH

Part	Frequency - Self Resonant	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Current Rating (Amps)	Shielding	Type	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Q @ Freq	Inductance	Material - Core	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Mounting Type	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Bourns Inc. RL875S-822K-RC	500 kHz	30.6 Ohm	1 kHz	81 mA	Shielded	Drum Core Wirewound	10 %	0.307 in	7.8 mm	85 252 kHz	8.2 mH	Ferrite	Radial Vertical Cylinder	-40 C	105 ░C	0.295 in	7.5 mm	Through Hole
Bourns Inc. RL875S-100L-RC	25 MHz		2.52 MHz	2.4 A	Shielded	Drum Core Wirewound	15 %	0.307 in	7.8 mm	2.52 MHz 60	10 µH	Ferrite	Radial Vertical Cylinder	-40 C	105 ░C	0.295 in	7.5 mm	Through Hole
Bourns Inc. RL875S-681K-RC	2 MHz	2.07 Ohm	1 kHz	0.28 A	Shielded	Drum Core Wirewound	10 %	0.307 in	7.8 mm	45 796 kHz	680 µH	Ferrite	Radial Vertical Cylinder	-40 C	105 ░C	0.295 in	7.5 mm	Through Hole

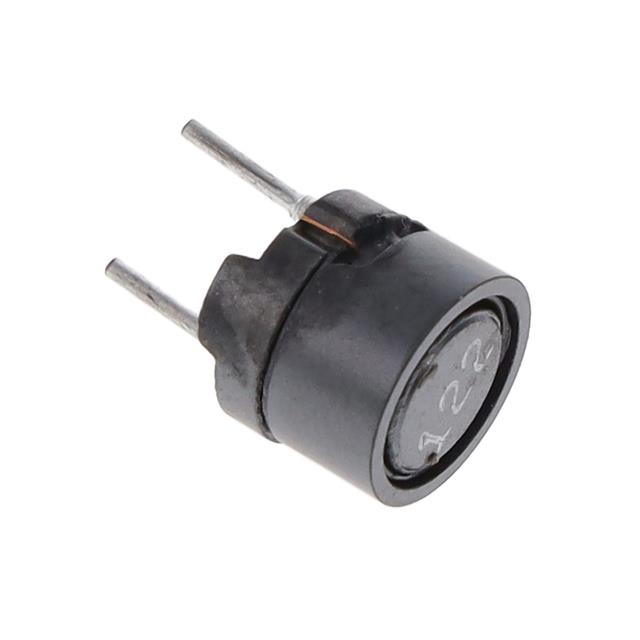

Bourns Inc. RL875S-122K-RC	1.5 MHz	3.9 Ohm	1 kHz	0.21 A	Shielded	Drum Core Wirewound	10 %	0.307 in	7.8 mm	110 252 kHz	1200 µH	Ferrite	Radial Vertical Cylinder	-40 C	105 ░C	0.295 in	7.5 mm	Through Hole
Bourns Inc. RL875S-391K-RC	3.5 MHz	1.28 Ohm	1 kHz	0.37 A	Shielded	Drum Core Wirewound	10 %	0.307 in	7.8 mm	50 796 kHz	390 µH	Ferrite	Radial Vertical Cylinder	-40 C	105 ░C	0.295 in	7.5 mm	Through Hole
Bourns Inc. RL875S-562K-RC	1 MHz	20.4 Ohm	1 kHz	99 mA	Shielded	Drum Core Wirewound	10 %	0.307 in	7.8 mm		5.6 mH	Ferrite	Radial Vertical Cylinder	-40 C	105 ░C	0.295 in	7.5 mm	Through Hole	252 kHz	95
Bourns Inc. RL875S-271K-RC	4 MHz	860 mOhm	1 kHz	0.45 A	Shielded	Drum Core Wirewound	10 %	0.307 in	7.8 mm	40 796 kHz	270 µH	Ferrite	Radial Vertical Cylinder	-40 C	105 ░C	0.295 in	7.5 mm	Through Hole
Bourns Inc. RL875S-471K-RC	2.5 MHz		1 kHz	0.34 A	Shielded	Drum Core Wirewound	10 %	0.307 in	7.8 mm	45 796 kHz	470 µH	Ferrite	Radial Vertical Cylinder	-40 C	105 ░C	0.295 in	7.5 mm	Through Hole			1.44 Ohm
Bourns Inc. RL875S-390L-RC	11 MHz		2.52 MHz	1.2 A	Shielded	Drum Core Wirewound	15 %	0.307 in	7.8 mm	2.52 MHz 30	39 µH	Ferrite	Radial Vertical Cylinder	-40 C	105 ░C	0.295 in	7.5 mm	Through Hole			150 mOhm
Bourns Inc. RL875S-472K-RC	1 MHz	14.7 Ohm	1 kHz	110 mA	Shielded	Drum Core Wirewound	10 %	0.307 in	7.8 mm		4.7 mH	Ferrite	Radial Vertical Cylinder	-40 C	105 ░C	0.295 in	7.5 mm	Through Hole	252 kHz	95
