A-M08 Series

Catalog

CBL ASSEMBLY 4 POS M TO WIRE 100

Part	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Fastening Type	Termination	Mounting Feature	Number of Positions	Ingress Protection	Color	Voltage Rating	Shell Material	Shielding	Current Rating (Amps)	Connector Type	Mounting Type	Features	Material Flammability Rating	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Orientation	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating	Contact Material	Contact Finish - Mating	Shell Size - Insert

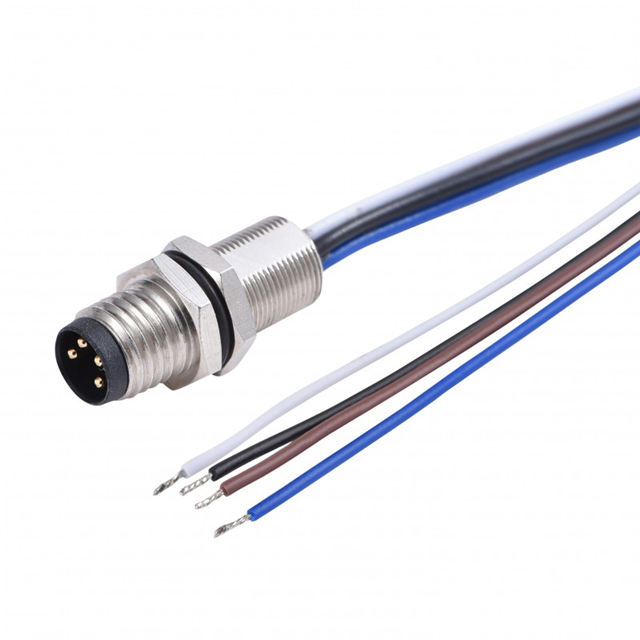

Assmann WSW Components A-M08A04MST01016BK00	Metal	85 °C	-25 °C	Epoxy Plastic	Threaded	Wire Leads	Front and Rear Side Nut	4	IP67/IP68	Black	60 VAC	Brass	Unshielded	3 A	Plug Male Pins	Panel Mount

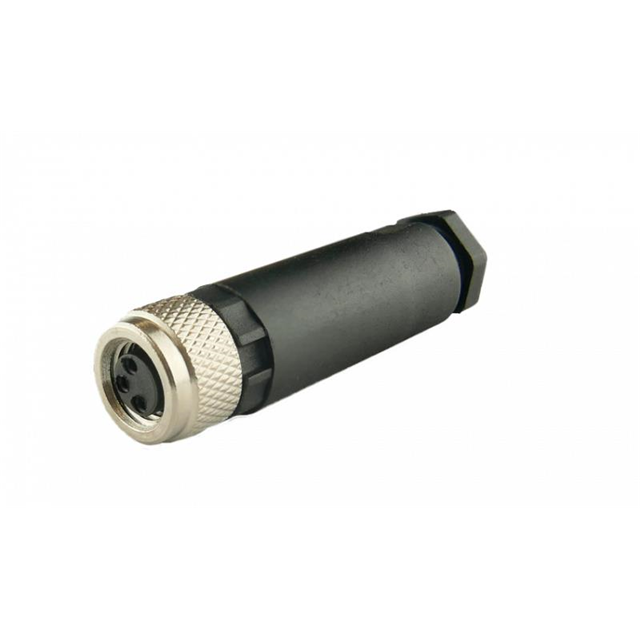

Assmann WSW Components A-M08-03-FGPA-GEB1	Metal	85 °C	-25 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	Threaded	Screw			IP65 IP67	Black Silver	60 VAC	Brass	Unshielded	3 A	Plug Female Sockets	Free Hanging (In-Line)	Backshell Coupling Nut	UL94 V-0	0.217 in	5.5 mm	0.118 in	3 mm	A	Nickel	0.025 µm	1 µin	Polyamide (PA66) Nylon 6/6 Glass Filled	Phosphor Bronze	Gold	M8-3

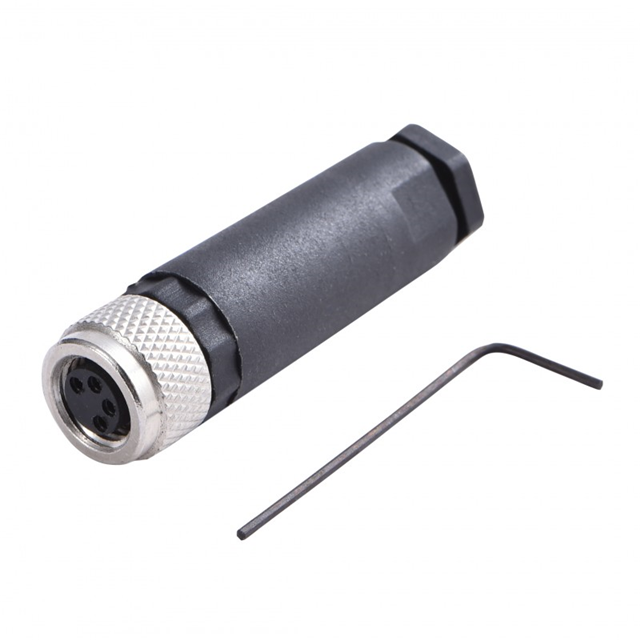

Assmann WSW Components A-M08-04-FGPA-GEB1	Metal	85 °C	-25 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	Threaded	Screw		4	IP65 IP67	Black Silver	60 VAC	Brass	Unshielded	3 A	Plug Female Sockets	Free Hanging (In-Line)	Backshell Coupling Nut	UL94 V-0	0.217 in	5.5 mm	0.118 in	3 mm	A	Nickel	0.025 µm	1 µin	Polyamide (PA66) Nylon 6/6 Glass Filled	Phosphor Bronze	Gold	M8-4

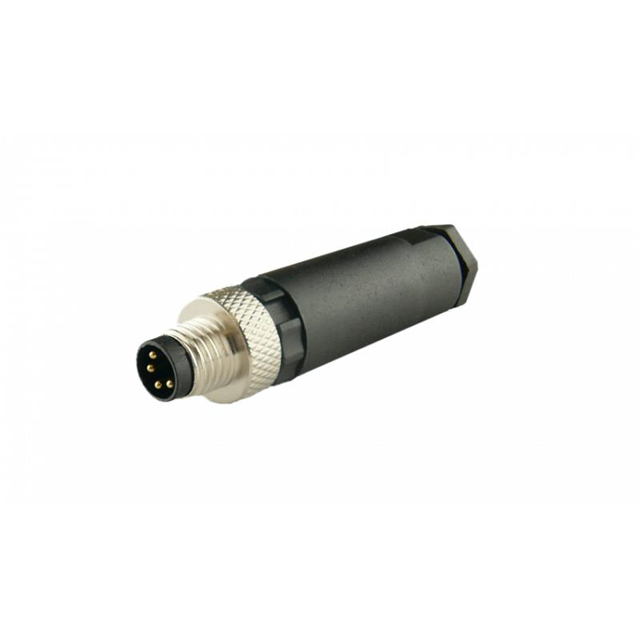

Assmann WSW Components A-M08-04-MGPA-GEB1	Metal	85 °C	-25 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	Threaded	Screw		4	IP65 IP67	Black Silver	30 VAC	Brass	Unshielded	3 A	Receptacle Male Pins	Free Hanging (In-Line)	Backshell	UL94 V-0	0.217 in	5.5 mm	0.118 in	3 mm	A	Nickel	0.025 µm	1 µin	Polyamide (PA66) Nylon 6/6 Glass Filled	Phosphor Bronze	Gold	M8-4
