8020.5016 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

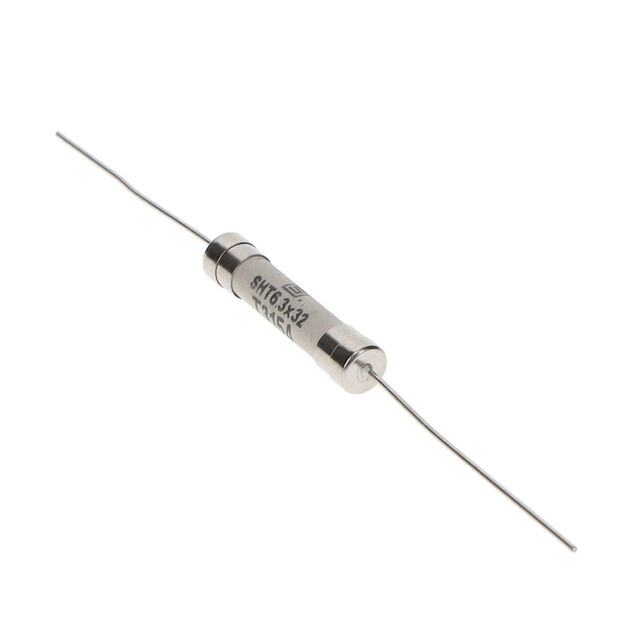

FUSE CERM 3.15A 500VAC 400VDC
| Part | Melting I˛t | Melting I²t | Fuse Type | Voltage Rating - AC | Package / Case [y] | Package / Case | Package / Case [x] | Mounting Type | Breaking Capacity @ Rated Voltage | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Current Rating (Amps) | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 39 | 39 | Cartridge Ceramic | 500 V | 3AB 3AG | 0.25 " | Through Hole | 1.5 kA | 400 V | 85 °C | -40 C | 6.85 mm | 32.8 mm | 0.27 in | 1.291 in | 3.15 A | Slow Blow |
