CF-LD-1 Series

Manufacturer: Nidec Components Corporation

Catalog

SWITCH ROCKER SPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Circuit	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Type	Color - Actuator/Cap	Voltage Rating - DC	Actuator Marking

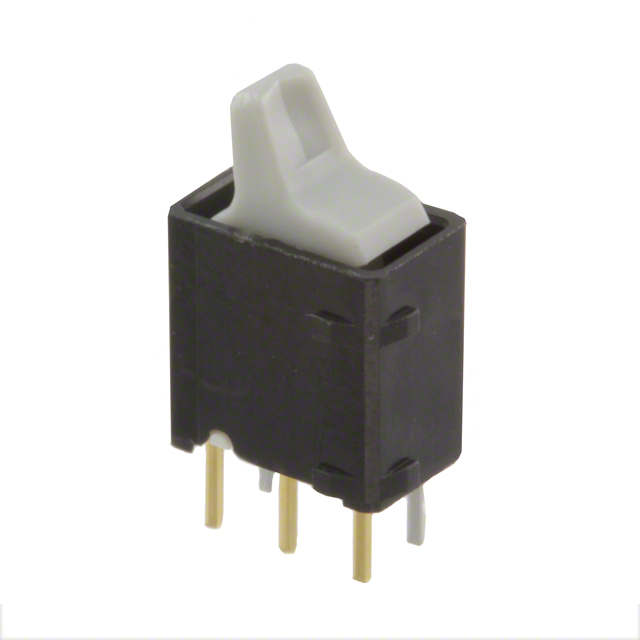

Nidec Components Corporation CF-LD-1DC-AW2W	10000 Cycles	50000 Cycles	SPDT	0.4 VA	28 V	On-On	Through Hole	85 °C	-40 C	PC Pin	Paddle	White	28 V	No Marking
Nidec Components Corporation CF-LD-1DC6-AW2	10000 Cycles	50000 Cycles	SPDT	0.4 VA	28 V	On-On	Right Angle Through Hole Vertical	85 °C	-40 C	PC Pin	Paddle	White	28 V	No Marking

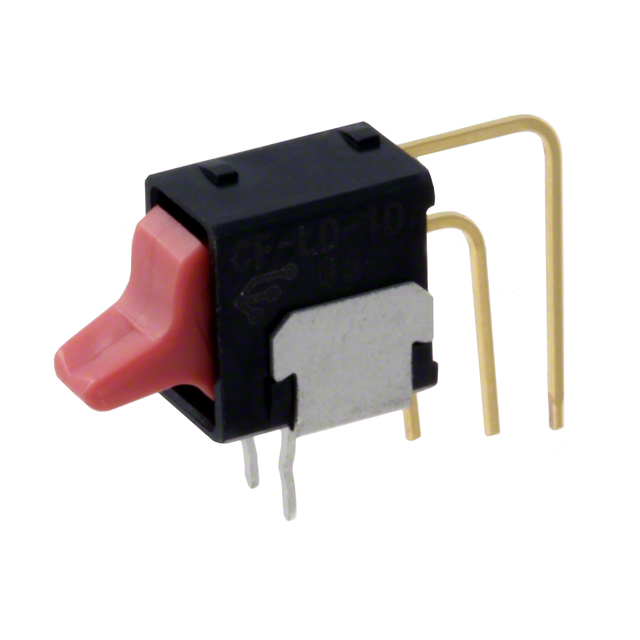

Nidec Components Corporation CF-LD-1DC6-AR2W	10000 Cycles	50000 Cycles	SPDT	0.4 VA	28 V	On-On	Right Angle Through Hole Vertical	85 °C	-40 C	PC Pin	Paddle	Red	28 V	No Marking

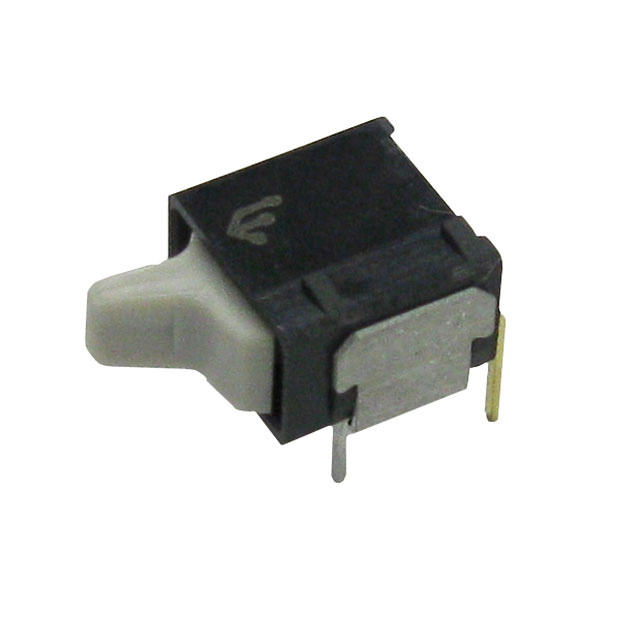

Nidec Components Corporation CF-LD-1DC4-AG2W	10000 Cycles	50000 Cycles	SPDT	0.4 VA	28 V	On-On	Right Angle Through Hole	85 °C	-40 C	PC Pin	Paddle		28 V	No Marking
Nidec Components Corporation CF-LD-1DC-AR2	10000 Cycles	50000 Cycles	SPDT	0.4 VA	28 V	On-On	Through Hole	85 °C	-40 C	PC Pin	Paddle	Red	28 V	No Marking
Nidec Components Corporation CF-LD-1DC-AW2	10000 Cycles	50000 Cycles	SPDT	0.4 VA	28 V	On-On	Through Hole	85 °C	-40 C	PC Pin	Paddle	White	28 V	No Marking
Nidec Components Corporation CF-LD-1DC4-AR2	10000 Cycles	50000 Cycles	SPDT	0.4 VA	28 V	On-On	Right Angle Through Hole	85 °C	-40 C	PC Pin	Paddle	Red	28 V	No Marking

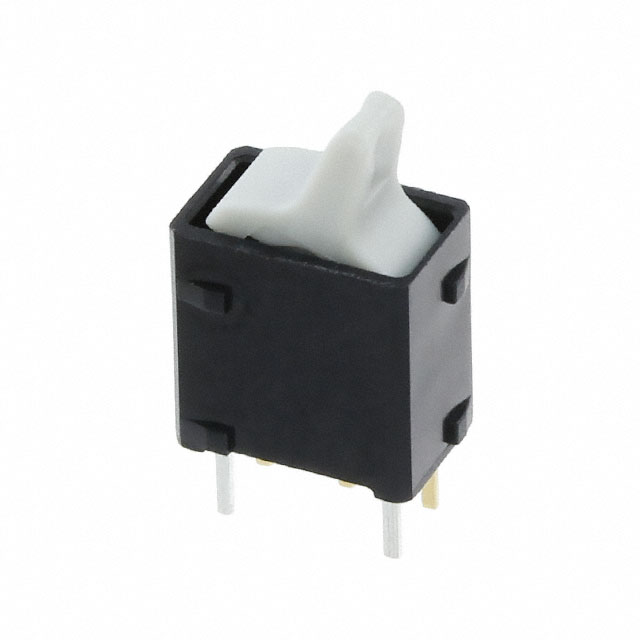

Nidec Components Corporation CF-LD-1DC-AG2W	10000 Cycles	50000 Cycles	SPDT	0.4 VA	28 V	On-On	Through Hole	85 °C	-40 C	PC Pin	Paddle		28 V	No Marking

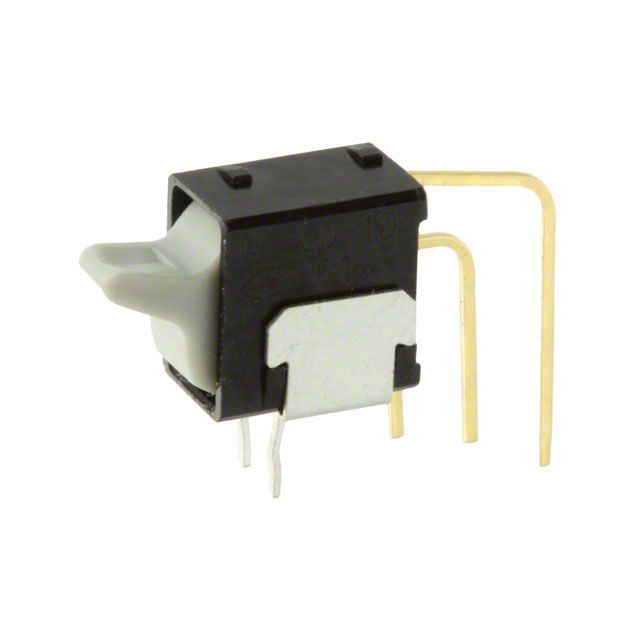

Nidec Components Corporation CF-LD-1DC6-AG2	10000 Cycles	50000 Cycles	SPDT	0.4 VA	28 V	On-On	Right Angle Through Hole Vertical	85 °C	-40 C	PC Pin	Paddle		28 V	No Marking

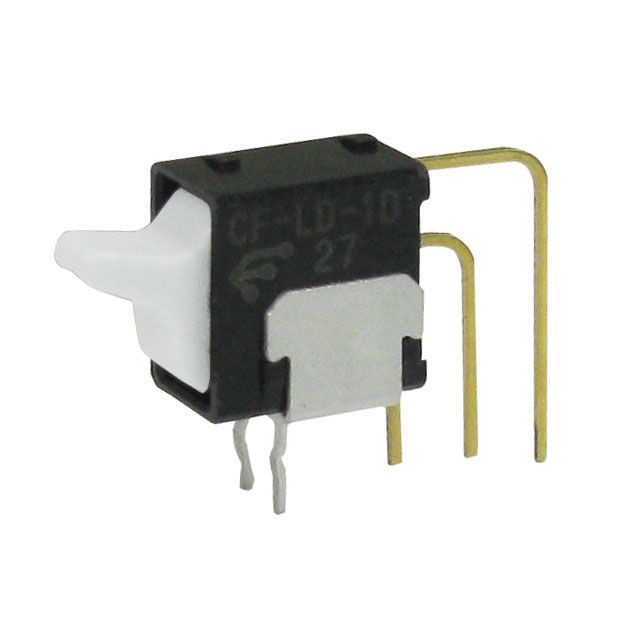

Nidec Components Corporation CF-LD-1DC6-AW2W	10000 Cycles	50000 Cycles	SPDT	0.4 VA	28 V	On-On	Right Angle Through Hole Vertical	85 °C	-40 C	PC Pin	Paddle	White	28 V	No Marking
