LDQ-N514 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

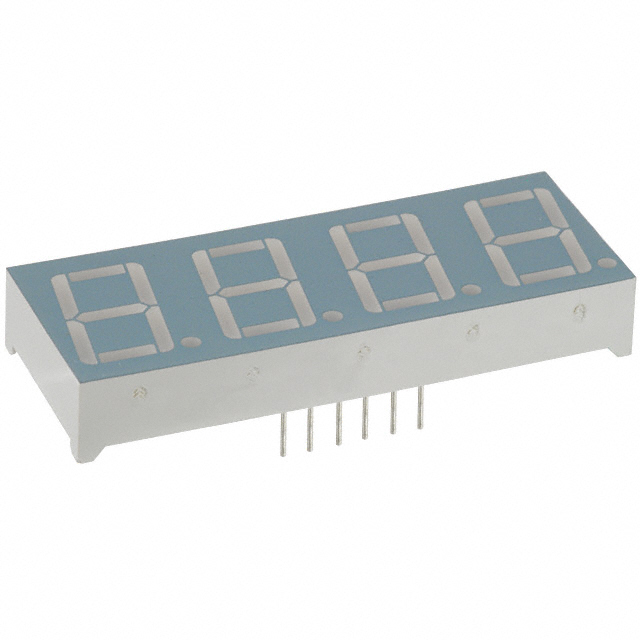

DISP 7SEG 0.56" QUAD RED 12DIP
| Part | Power Dissipation (Max) [Max] | Voltage - Forward (Vf) (Typ) | Display Type | Wavelength - Peak | Digit/Alpha Size | Digit/Alpha Size | Number of Characters | Color | Current - Test | Package / Case | Package / Case | Package / Case | Millicandela Rating | Common Pin | Size / Dimension | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 105 mW | 2 V | 7-Segment | 635 nm | 0.56 in | 14.22 mm | 4 | Red | 10 mA | 15.24 mm | 0.6 in | 12-DIP | 3.9 mcd | Common Cathode | 8 mm | 0.315 in | 0.748 in | 1.98 " | 50.3 mm | 19 mm |
