1658621 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 40 CONTACTS, CABLE MOUNT

Part	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Connector Type	Pitch	Pitch	Number of Positions	Wire Type	Number of Rows [custom]	Color	Cable Termination	Row Spacing	Row Spacing	Features	Fastening Type	Number of Positions [custom]

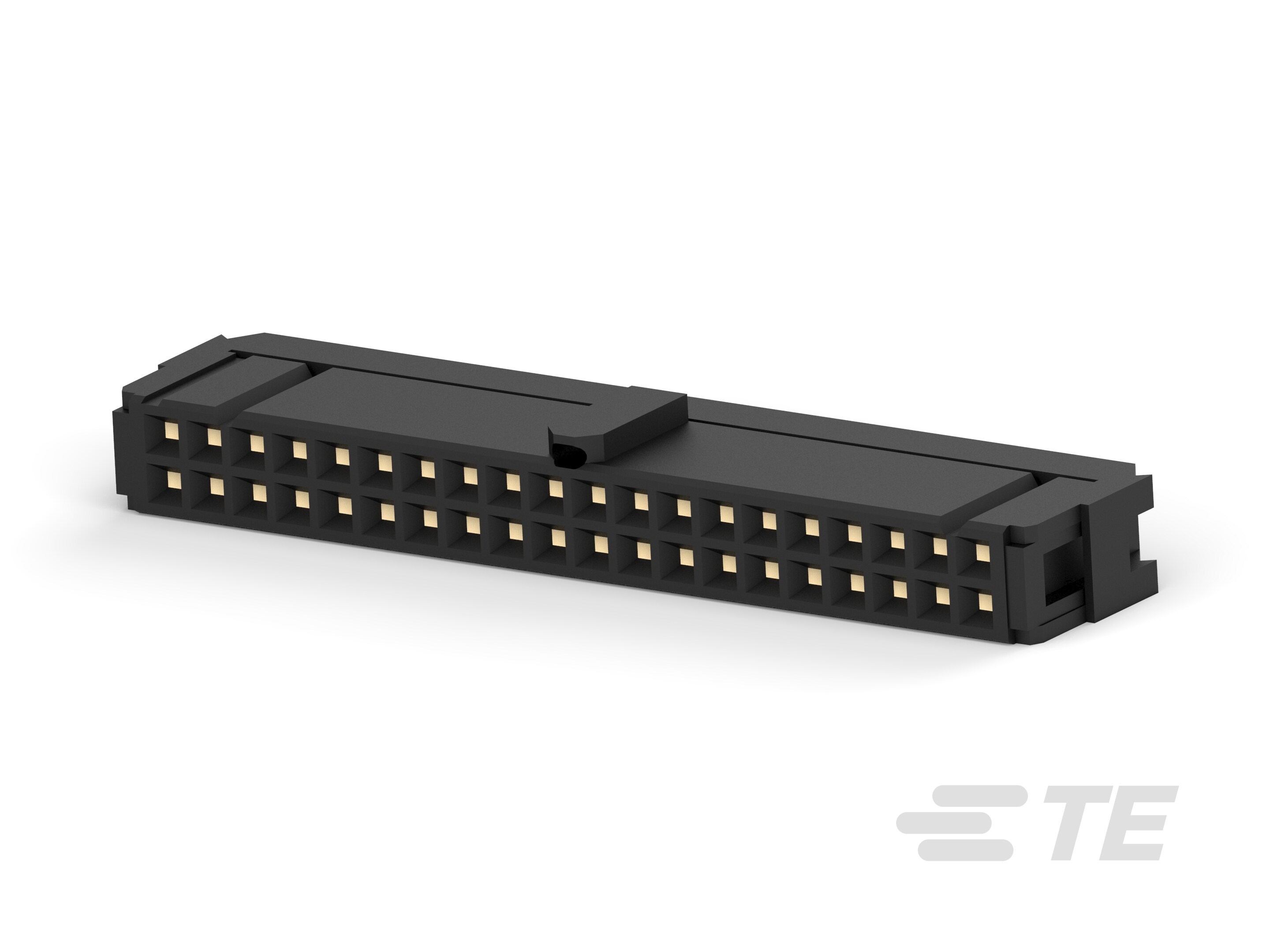

TE Connectivity AMP Connectors 1658621-9	Gold Gold-Palladium	Free Hanging (In-Line)	0.38 µm	15 µin	Forked	Receptacle	0.1 "	2.54 mm	40	Ribbon Cable	2	Black	IDC	2.54 mm	0.1 "	Feed Through Polarizing Key

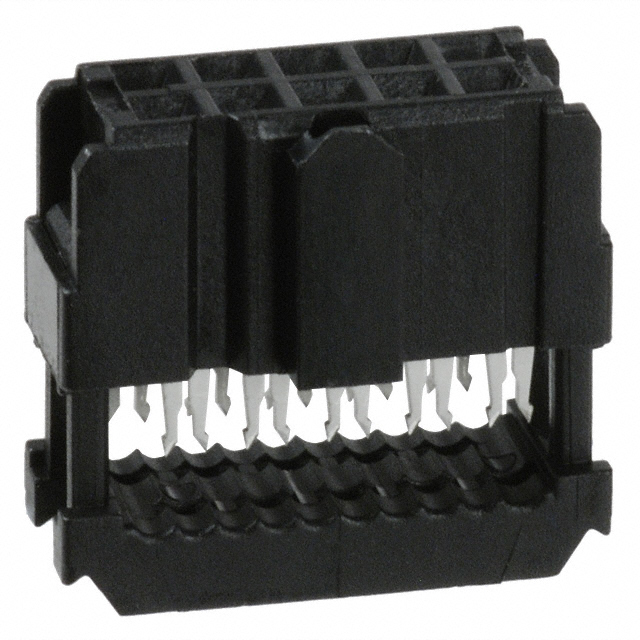

TE Connectivity AMP Connectors 1658621-1	Gold Gold-Palladium	Free Hanging (In-Line)	0.38 µm	15 µin	Forked	Receptacle	0.1 "	2.54 mm	10	Ribbon Cable	2	Black	IDC	2.54 mm	0.1 "	Feed Through Polarizing Key
TE Connectivity AMP Connectors 1658621-1	Gold Gold-Palladium	Free Hanging (In-Line)	0.38 µm	15 µin	Female Socket	Receptacle	0.1 "	2.54 mm	10	Ribbon Cable	2	Black	IDC	2.54 mm	0.1 "	Feed Through Polarizing Key	Push-Pull

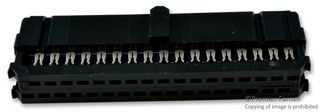

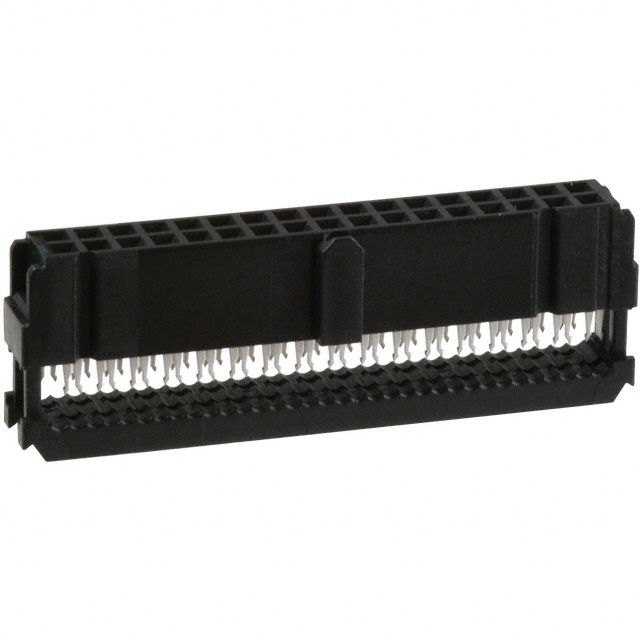

TE Connectivity AMP Connectors 1658621-8	Gold Gold-Palladium	Free Hanging (In-Line)	0.38 µm	15 µin	Forked	Receptacle	0.1 "	2.54 mm		Ribbon Cable	2	Black	IDC	2.54 mm	0.1 "	Feed Through Polarizing Key		34

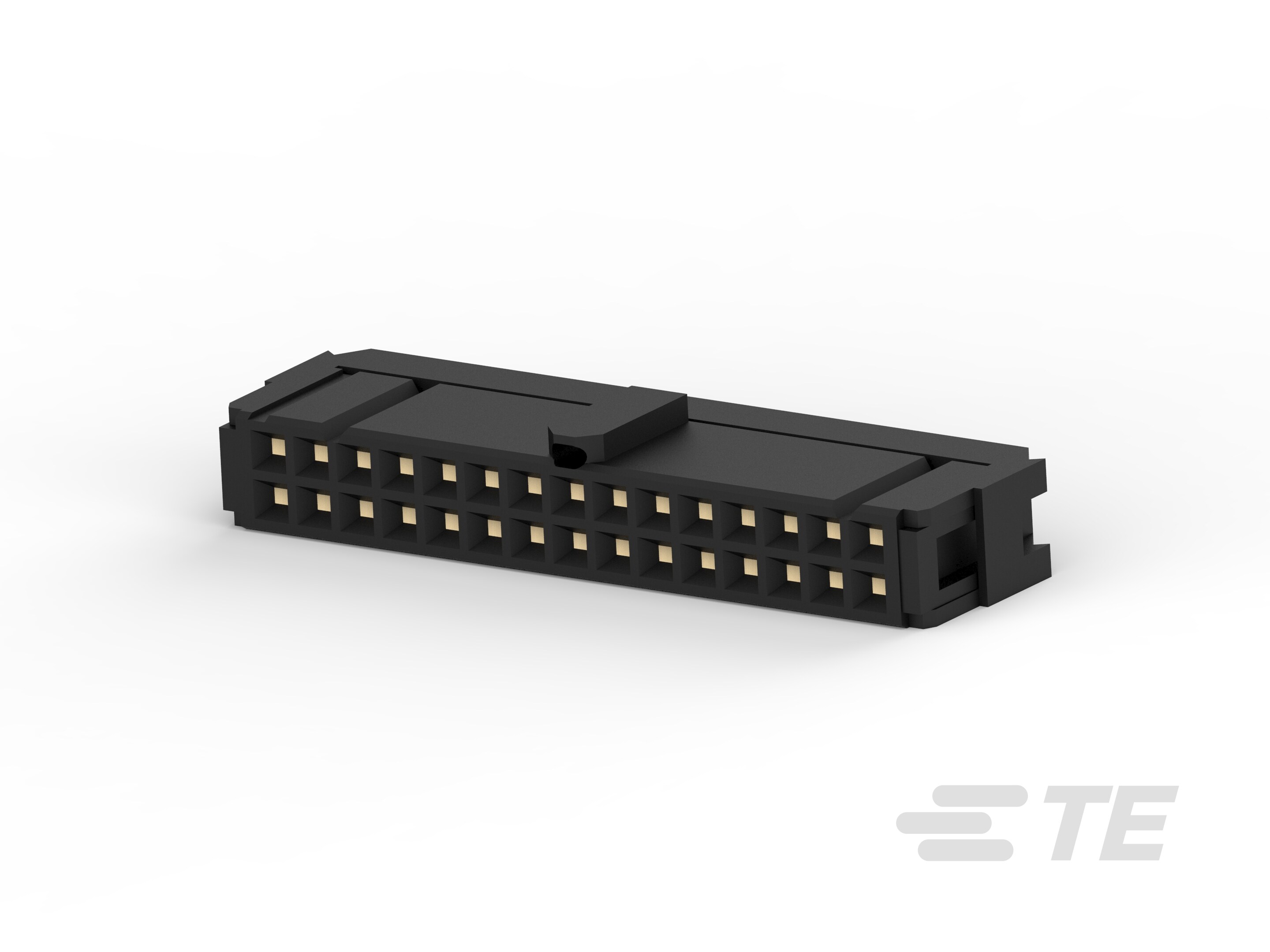

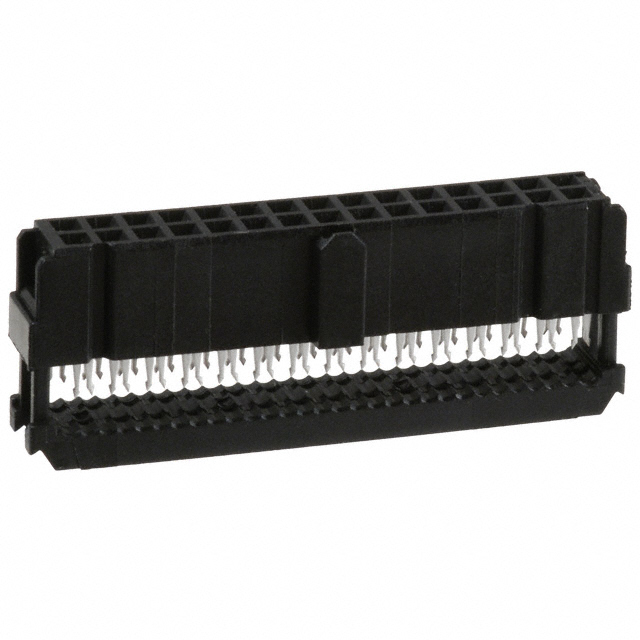

TE Connectivity AMP Connectors 1658621-7	Gold Gold-Palladium	Free Hanging (In-Line)	0.38 µm	15 µin	Forked	Receptacle	0.1 "	2.54 mm	30	Ribbon Cable	2	Black	IDC	2.54 mm	0.1 "	Feed Through Polarizing Key

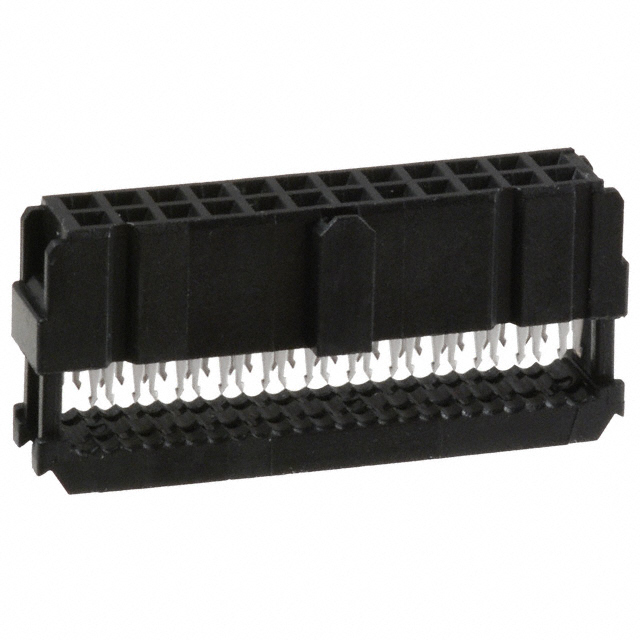

TE Connectivity AMP Connectors 1658621-5	Gold Gold-Palladium	Free Hanging (In-Line)	0.38 µm	15 µin	Forked	Receptacle	0.1 "	2.54 mm	24	Ribbon Cable	2	Black	IDC	2.54 mm	0.1 "	Feed Through Polarizing Key

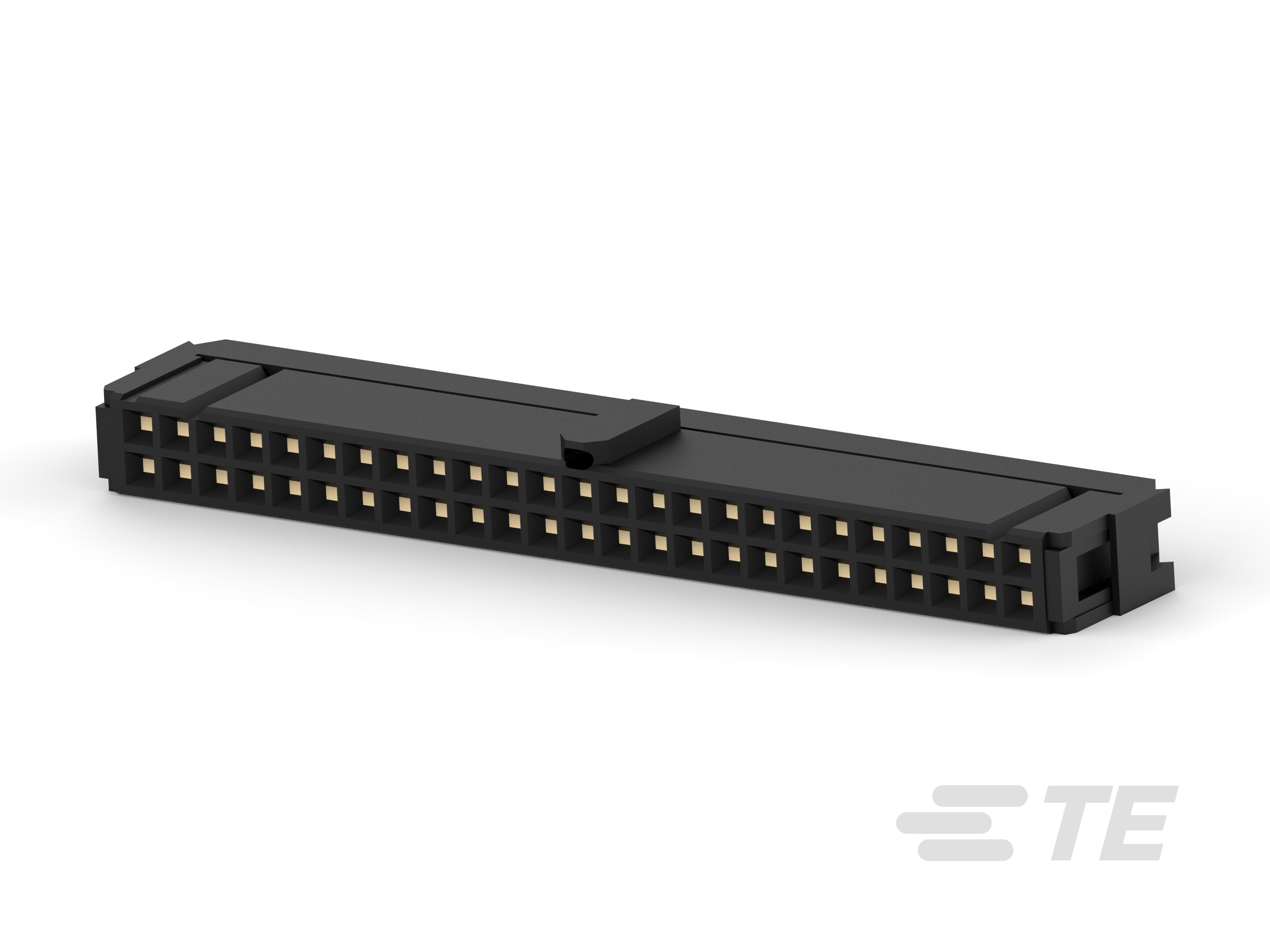

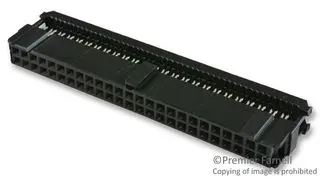

TE Connectivity AMP Connectors 1-1658621-0	Gold Gold-Palladium	Free Hanging (In-Line)	0.38 µm	15 µin	Forked	Receptacle	0.1 "	2.54 mm	50	Ribbon Cable	2	Black	IDC	2.54 mm	0.1 "	Feed Through Polarizing Key
TE Connectivity AMP Connectors 1658621-4	Gold Gold-Palladium	Free Hanging (In-Line)	0.38 µm	15 µin	Forked	Receptacle	0.1 "	2.54 mm	20	Ribbon Cable	2	Black	IDC	2.54 mm	0.1 "	Feed Through Polarizing Key
