8104 Series
Manufacturer: Belden Inc.
Beta
⌘K

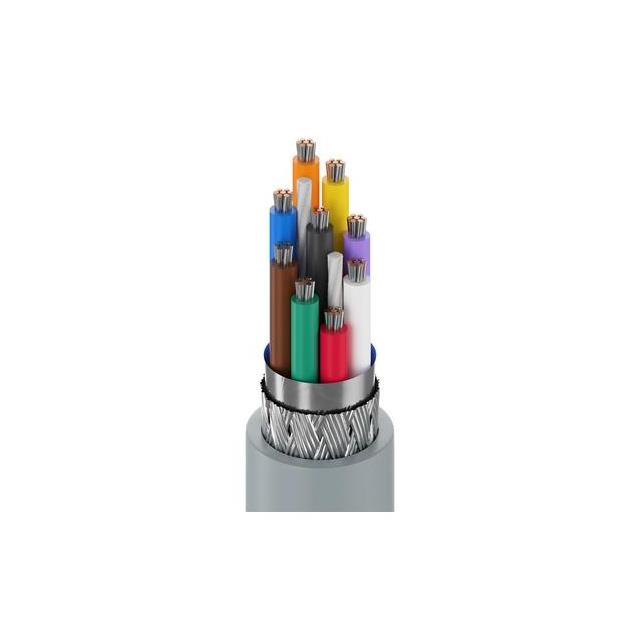

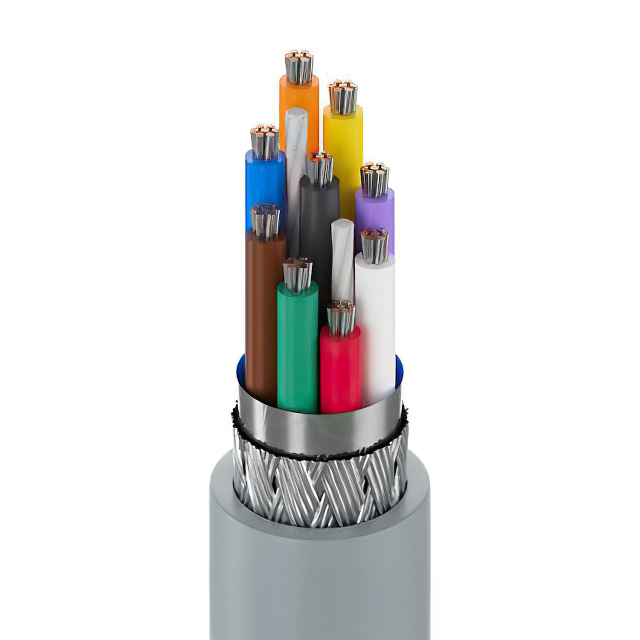

MULTI-PAIR 8CON 24AWG CHROM
| Part | Shield Coverage | Shield Material | Ratings | Features | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Length | Length | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Conductor Insulation | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | UL Style 2919 | Drain Wire | Chrome | 0.279 in | 7.09 mm | Braid Foil | 152.4 m | 500 ft | 8 | 7 | 32 AWG | Copper Tinned | Foam Polyethylene (FPE) | Multi-Pair | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | Computer | 24 AWG |
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | UL Style 2919 | Drain Wire | Chrome | 0.279 in | 7.09 mm | Braid Foil | 304.8 m | 1000 ft | 8 | 7 | 32 AWG | Copper Tinned | Foam Polyethylene (FPE) | Multi-Pair | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | Computer | 24 AWG |
