LCB8 Series
Manufacturer: Panduit Corp
Beta
⌘K

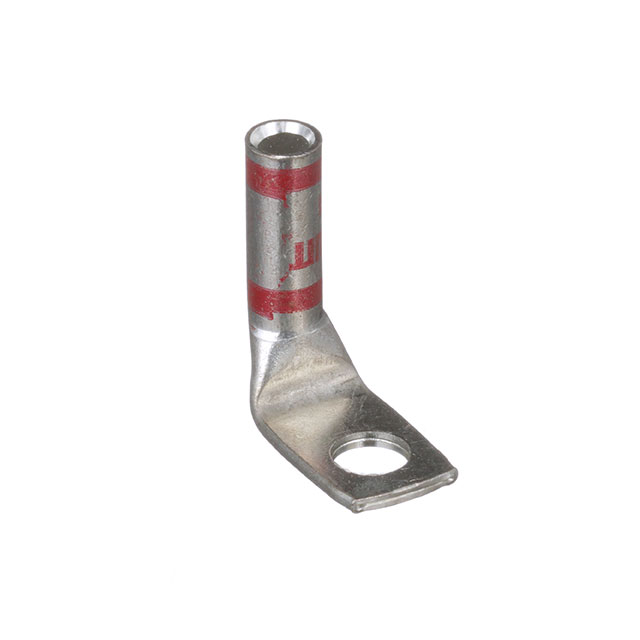

CONN TERM RECT TONG 8 AWG #1/4
| Part | Contact Material | Contact Finish | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Diameter - Ring ID | Diameter - Ring ID | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Terminal Style | Insulation | Wire Gauge | Stud/Tab Size | Mounting Type | Color | Width - Outer Edges [x] | Width - Outer Edges [x] | Tab Thickness | Tab Thickness | Termination | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Copper | Electro-Tin | 6.86 mm | 0.27 in | 0.27 in | 6.86 mm | 0.18 in | 4.57 mm | Single Stud Hole | Non-Insulated | 8 AWG | 0.25 Stud | Free Hanging (In-Line) Right Angle | Red | 12.19 mm | 0.48 " | 1.78 mm | 0.07 in | Barrel Crimp | Rectangular Tongue |
