22-331 Series
Manufacturer: EAO
Beta
⌘K

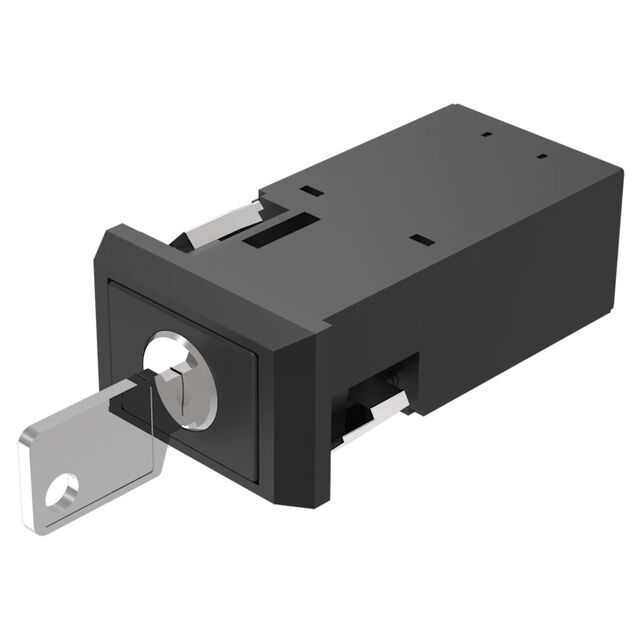

SWITCH KEYLCK 2POS SPST 10A 400V
| Part | Depth Behind Flange [z] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Angle of Throw | Termination Style | Key Removable Positions | Number of Positions | Actuator Type | Mounting Type | Contact Timing | Contact Material | Circuit | Voltage Rating - AC | Switch Function | Features | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 59.5 mm | 30 mm | 22 mm | 90 ° | Screw Terminal | 1 | 2 | Flat Key | Panel Mount | Not Specified | Silver (Ag) | SPST-NO | 400 V | Off-On | IP65 | 10 A |
