LP2S1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PUSH SPST-NO 1MA 20V
| Part | Mechanical Life | Color - Actuator/Cap | Illumination Voltage (Nominal) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Illumination Type, Color | Voltage Rating - DC | Termination Style | Type | Switch Function | Actuator Type | Actuator Marking | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

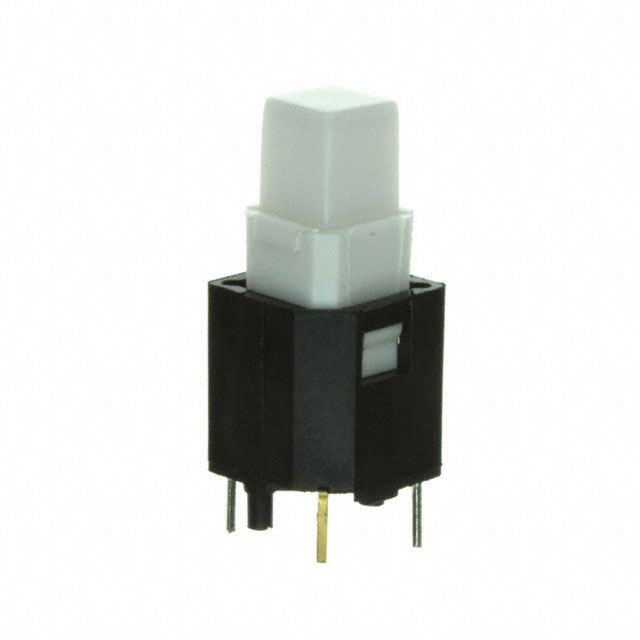

 E-Switch | 300000 Cycles | White | 1.5 VDC | Through Hole | -20 ░C | 70 °C | 1 mA | LED Red | 20 V | PC Pin | Illuminated Standard | Off-Mom | Button Square | No Marking | SPST-NO |
 E-Switch | 300000 Cycles | Red | 1.5 VDC | Through Hole | -20 ░C | 70 °C | 1 mA | LED Red | 20 V | PC Pin | Illuminated Standard | Off-Mom | Button Square | No Marking | SPST-NO |

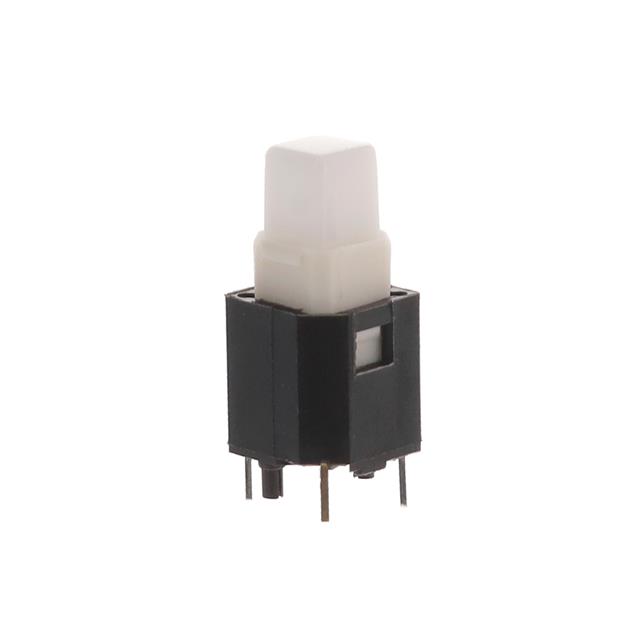

 E-Switch | 300000 Cycles | White | 3.5 VDC | Through Hole | -20 ░C | 70 °C | 1 mA | LED White | 20 V | PC Pin | Illuminated Standard | Off-Mom | Button Square | No Marking | SPST-NO |

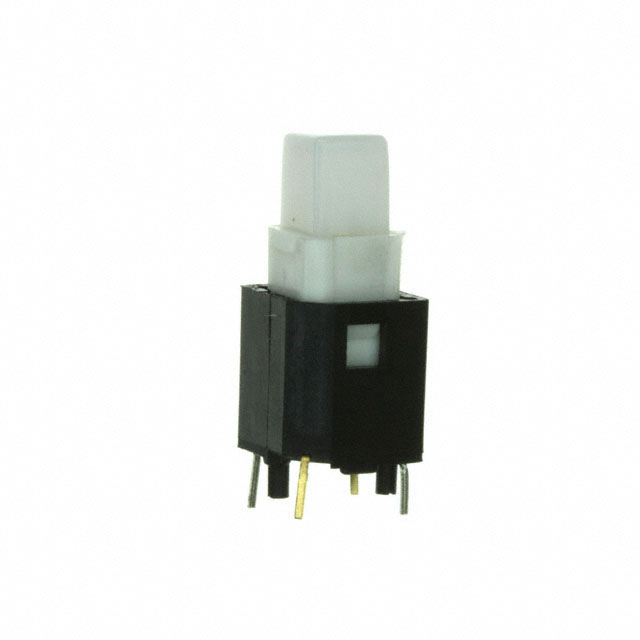

 E-Switch | 300000 Cycles | White | 3.5 VDC | Through Hole | -20 ░C | 70 °C | 1 mA | Blue LED | 20 V | PC Pin | Illuminated Standard | Off-Mom | Button Square | No Marking | SPST-NO |

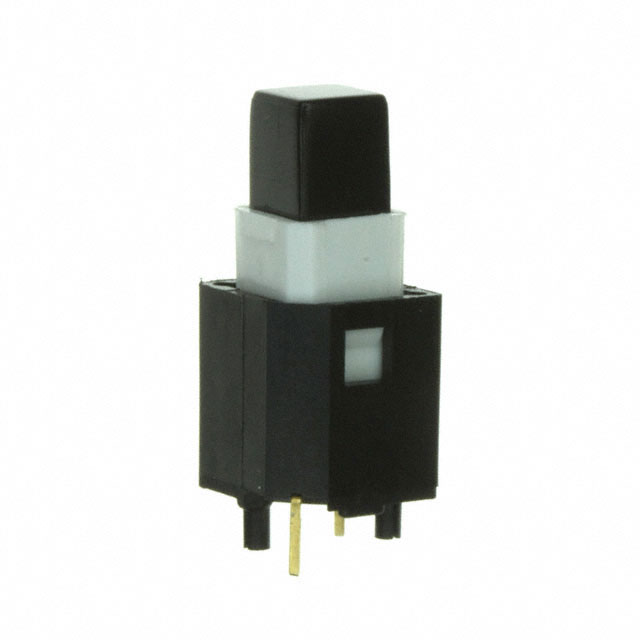

 E-Switch | 300000 Cycles | Black | Through Hole | -20 ░C | 70 °C | 1 mA | 20 V | PC Pin | Standard | Off-Mom | Button Square | No Marking | SPST-NO |
