CBG-2IPX Series
Manufacturer: Lighthorse Technologies, Inc
Beta
⌘K

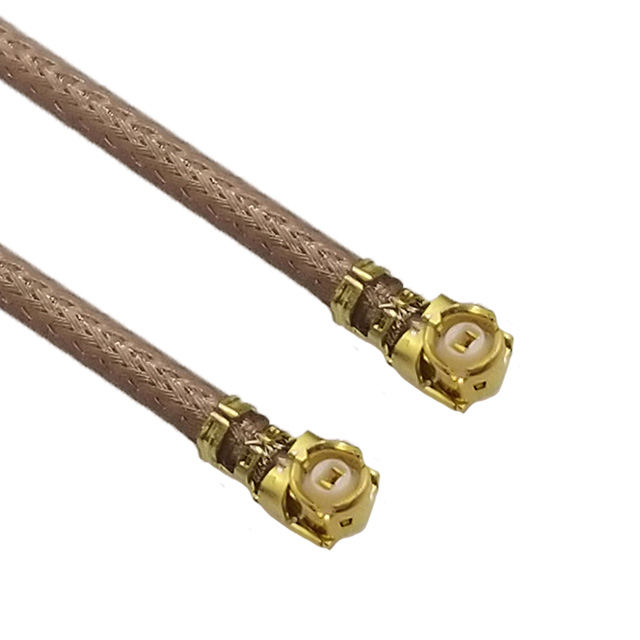

CBL ASSY IPEX MHF1 PLUG-PLG 9.5"
| Part | 1st Connector | Style | 2nd Connector | Features | 1st Connector Mounting Type | Length | Length | 2nd Connector Mounting Type | Color | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Impedance | 1st Contact Gender | 2nd Contact Gender | Overall Impedance | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Opposite Orientation Shielded | Free Hanging (In-Line) | 9.5 in | 241.3 mm | Free Hanging (In-Line) | Copper | 9 GHz | 90 °C | -40 C | 50 Ohms | Female | Female | 50 Ohms | RG-178 | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Opposite Orientation Shielded | Free Hanging (In-Line) | 9 in | 228.6 mm | Free Hanging (In-Line) | Copper | 9 GHz | 90 °C | -40 C | 50 Ohms | Female | Female | 50 Ohms | RG-178 | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Opposite Orientation Shielded | Free Hanging (In-Line) | 7.5 in | 190.5 mm | Free Hanging (In-Line) | Copper | 9 GHz | 90 °C | -40 C | 50 Ohms | Female | Female | 50 Ohms | RG-178 | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Opposite Orientation Shielded | Free Hanging (In-Line) | 4.5 in | 114.3 mm | Free Hanging (In-Line) | Copper | 9 GHz | 90 °C | -40 C | 50 Ohms | Female | Female | 50 Ohms | RG-178 | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug I-PEX MHF1 Plug Right Angle Right Angle U.FL (UMCC) | I-PEX MHF1 I-PEX MHF1 to I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) I-PEX MHF1 Plug Right Angle | Opposite Orientation Shielded | Free Hanging (In-Line) | 266.7 mm | Free Hanging (In-Line) | Copper | 9 GHz | 90 °C | -40 C | 50 Ohms | Female | Female | 50 Ohms | RG-178 | 10.5 in | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug I-PEX MHF1 Plug Right Angle Right Angle U.FL (UMCC) | I-PEX MHF1 I-PEX MHF1 to I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) I-PEX MHF1 Plug Right Angle | Opposite Orientation Shielded | Free Hanging (In-Line) | Free Hanging (In-Line) | Copper | 9 GHz | 90 °C | -40 C | 50 Ohms | Female | Female | 50 Ohms | RG-178 | 12 in | 304.8 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Opposite Orientation Shielded | Free Hanging (In-Line) | 5 in | 127 mm | Free Hanging (In-Line) | Copper | 9 GHz | 90 °C | -40 C | 50 Ohms | Female | Female | 50 Ohms | RG-178 | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Opposite Orientation Shielded | Free Hanging (In-Line) | 1 in | 25.4 mm | Free Hanging (In-Line) | Copper | 9 GHz | 90 °C | -40 C | 50 Ohms | Female | Female | 50 Ohms | RG-178 | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Opposite Orientation Shielded | Free Hanging (In-Line) | 5.5 in | 139.7 mm | Free Hanging (In-Line) | Copper | 9 GHz | 90 °C | -40 C | 50 Ohms | Female | Female | 50 Ohms | RG-178 | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | Opposite Orientation Shielded | Free Hanging (In-Line) | 2 in | 50.8 mm | Free Hanging (In-Line) | Copper | 9 GHz | 90 °C | -40 C | 50 Ohms | Female | Female | 50 Ohms | RG-178 |
