8523 Series

Catalog

HOOK-UP STRND 20AWG BLU 100'

Part	Length [x]	Length [x]	Qualification	Conductor Material	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Cable Type	Features	Length	Length
Belden Inc. 8523 006100	100 ft	30.5 m	MIL-W-76C Type MW	Copper Tinned	1 kV	80 °C	-40 C	0.43 mm	0.017 "	20 AWG	Blue	10	30 AWG	1.78 mm	0.07 "	Poly-Vinyl Chloride (PVC)	Hook-Up	Chemical Resistant
Belden Inc. 8523 0071000			MIL-W-76C Type MW	Copper Tinned	1 kV	80 °C	-40 C	0.43 mm	0.017 "	20 AWG	Violet	10	30 AWG	1.78 mm	0.07 "	Poly-Vinyl Chloride (PVC)	Hook-Up	Chemical Resistant	304.8 m	1000 ft
Belden Inc. 8523 0051000			MIL-W-76C Type MW	Copper Tinned	1 kV	80 °C	-40 C	0.43 mm	0.017 "	20 AWG	Green	10	30 AWG	1.78 mm	0.07 "	Poly-Vinyl Chloride (PVC)	Hook-Up	Chemical Resistant	304.8 m	1000 ft

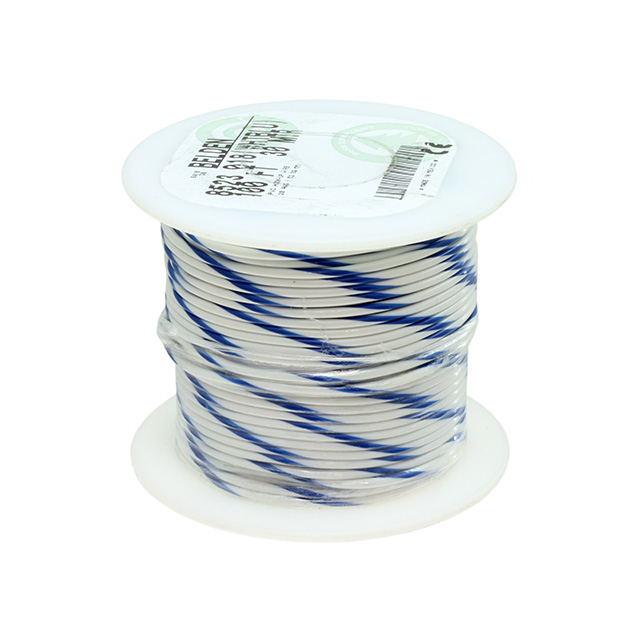

Belden Inc. 8523 018100	100 ft	30.5 m	MIL-W-76C Type MW	Copper Tinned	1 kV	80 °C	-40 C	0.43 mm	0.017 "	20 AWG	White Blue Stripe	10	30 AWG	1.78 mm	0.07 "	Poly-Vinyl Chloride (PVC)	Hook-Up	Chemical Resistant
Belden Inc. 8523 0081000			MIL-W-76C Type MW	Copper Tinned	1 kV	80 °C	-40 C	0.43 mm	0.017 "	20 AWG	Gray	10	30 AWG	1.78 mm	0.07 "	Poly-Vinyl Chloride (PVC)	Hook-Up	Chemical Resistant	304.8 m	1000 ft
Belden Inc. 8523 004100	100 ft	30.5 m	MIL-W-76C Type MW	Copper Tinned	1 kV	80 °C	-40 C	0.43 mm	0.017 "	20 AWG	Yellow	10	30 AWG	1.78 mm	0.07 "	Poly-Vinyl Chloride (PVC)	Hook-Up	Chemical Resistant
Belden Inc. 8523 010100	100 ft	30.5 m	MIL-W-76C Type MW	Copper Tinned	1 kV	80 °C	-40 C	0.43 mm	0.017 "	20 AWG	Black	10	30 AWG	1.78 mm	0.07 "	Poly-Vinyl Chloride (PVC)	Hook-Up	Chemical Resistant
Belden Inc. 8523 003100	100 ft	30.5 m	MIL-W-76C Type MW	Copper Tinned	1 kV	80 °C	-40 C	0.43 mm	0.017 "	20 AWG	Orange	10	30 AWG	1.78 mm	0.07 "	Poly-Vinyl Chloride (PVC)	Hook-Up	Chemical Resistant
Belden Inc. 8523 0061000			MIL-W-76C Type MW	Copper Tinned	1 kV	80 °C	-40 C	0.43 mm	0.017 "	20 AWG	Blue	10	30 AWG	1.78 mm	0.07 "	Poly-Vinyl Chloride (PVC)	Hook-Up	Chemical Resistant	304.8 m	1000 ft
Belden Inc. 8523 009100	100 ft	30.5 m	MIL-W-76C Type MW	Copper Tinned	1 kV	80 °C	-40 C	0.43 mm	0.017 "	20 AWG	White	10	30 AWG	1.78 mm	0.07 "	Poly-Vinyl Chloride (PVC)	Hook-Up	Chemical Resistant
