0778-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [custom]	Length - Overall [custom]	Contact Material	Mounting Hole Diameter	Mounting Hole Diameter	Contact Finish	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Socket Depth [z]	Socket Depth [z]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]
Mill-Max Manufacturing Corp. 0778-0-18-15-07-27-10-0	-55 C	125 °C	2.72 mm	0.107 in	3.96 mm	0.156 "	14.86 mm	0.585 in	Beryllium Copper	3.63 mm	0.143 in	Gold	No Tail	30 Áin	0.76 Ám	6.99 mm	0.275 in	Press-Fit	2.08 mm	0.082 "	0.065 "	1.65 mm

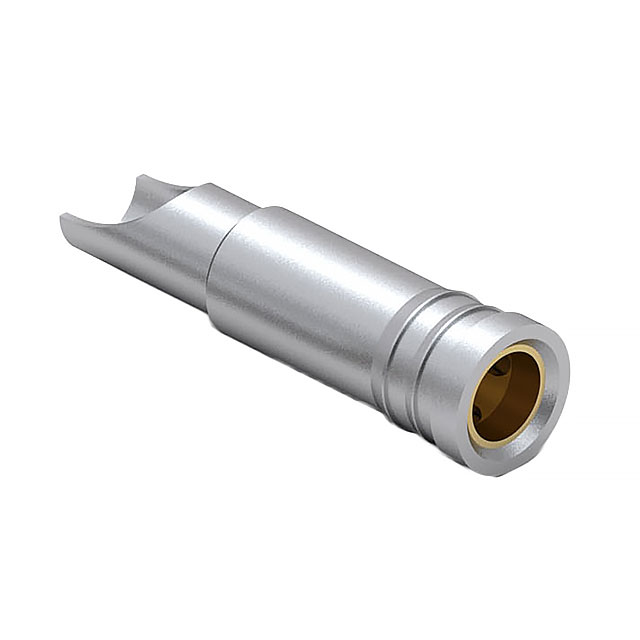

Mill-Max Manufacturing Corp. 0778-0-18-80-07-27-10-0	-55 C	125 °C	2.72 mm	0.107 in	3.96 mm	0.156 "	14.86 mm	0.585 in	Beryllium Copper	3.63 mm	0.143 in	Gold	No Tail	30 Áin	0.76 Ám	6.99 mm	0.275 in	Press-Fit	2.08 mm	0.082 "	0.065 "	1.65 mm
Mill-Max Manufacturing Corp. 0778-0-18-01-07-27-10-0	-55 C	125 °C	2.72 mm	0.107 in	3.96 mm	0.156 "	14.86 mm	0.585 in	Beryllium Copper	3.63 mm	0.143 in	Gold	No Tail	30 Áin	0.76 Ám	6.99 mm	0.275 in	Press-Fit	2.08 mm	0.082 "	0.065 "	1.65 mm
