960216 Series
Manufacturer: 3M (TC)
Beta
⌘K

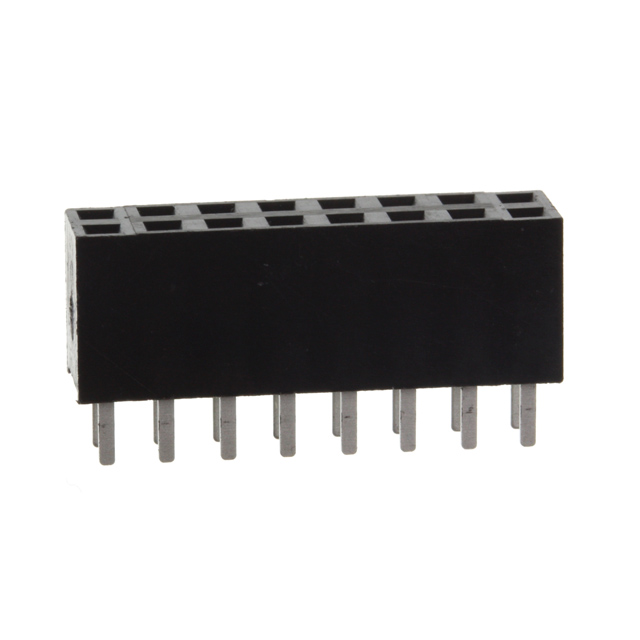

CONN RCPT 16POS 0.1 GOLD PCB
| Part | Number of Rows | Current Rating (Amps) | Connector Type | Insulation Color | Contact Finish - Mating | Mounting Type | Contact Material | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Material Flammability Rating | Number of Positions Loaded | Insulation Height | Insulation Height | Fastening Type | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 2 | 2 A | Receptacle | Black | Gold | Through Hole | Copper Alloy | 3.5 mm | 0.138 in | Flash | Tin | 0.1 in | 2.54 mm | -25 °C | 105 ░C | Solder | Female Socket | 2.54 mm | 0.1 in | Thermoplastic | 16 | 1.02 Ám | 40 Áin | 1000 VDC | UL94 V-0 | All | 0.335 " | 8.51 mm | Push-Pull | Square |
 3M (TC) | 2 | 2 A | Receptacle | Black | Gold | Through Hole | Copper Alloy | 3 mm | 0.118 in | Flash | Tin | 0.1 in | 2.54 mm | -25 °C | 105 ░C | Solder | Female Socket | 2.54 mm | 0.1 in | Thermoplastic | 16 | 1.02 Ám | 40 Áin | 1000 VDC | UL94 V-0 | All | 0.28 in | 7.1 mm | Push-Pull | Square |
