837-035 Series
Manufacturer: EDAC Inc.
Beta
⌘K

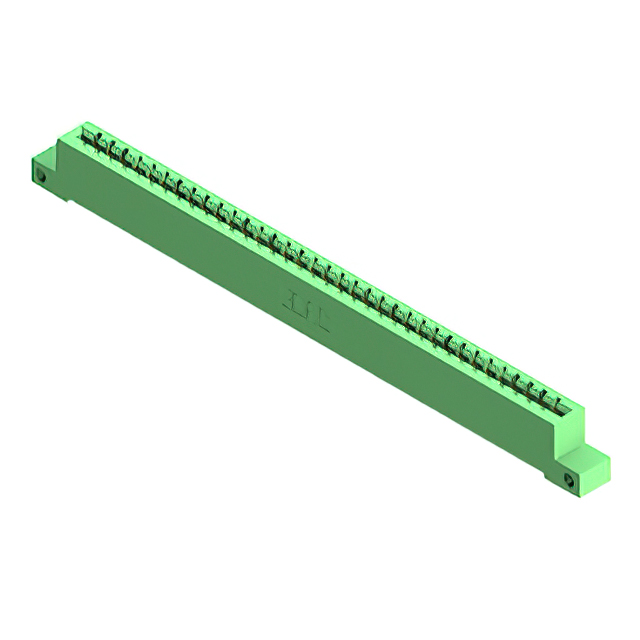

CONN EDGE SGL FMALE 35POS 0.156
| Part | Material - Insulation | Termination Rows | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Pitch | Pitch | Contact Finish | Number of Positions/Bay/Row | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Gender | Color | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Read Out | Contact Type | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Wire Wrap | 0.156 " | 3.96 mm | Non Specified - Single Edge | 3.96 mm | 0.156 in | Gold | 35 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Through Hole | 0.25 Ám | 10 Áin | 1 | 125 °C | -40 C | 35 | Single | Cantilever | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | 0.128 " | 3.25 mm | Non Specified - Single Edge | 3.96 mm | 0.156 in | Gold | 35 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Through Hole | 0.25 Ám | 10 Áin | 1 | 125 °C | -40 C | 35 | Single | Cantilever | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | Non Specified - Single Edge | 3.96 mm | 0.156 in | Gold | 35 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Through Hole | 0.25 Ám | 10 Áin | 1 | 125 °C | -40 C | 35 | Single | Cantilever | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | Non Specified - Single Edge | 3.96 mm | 0.156 in | Gold | 35 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Through Hole | 0.25 Ám | 10 Áin | 1 | 125 °C | -40 C | 35 | Single | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | Non Specified - Single Edge | 3.96 mm | 0.156 in | Gold | 35 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Through Hole | 0.25 Ám | 10 Áin | 1 | 125 °C | -40 C | 35 | Single | Cantilever | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | 0.128 " | 3.25 mm | Non Specified - Single Edge | 3.96 mm | 0.156 in | Gold | 35 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Through Hole | 0.25 Ám | 10 Áin | 1 | 125 °C | -40 C | 35 | Single | Cantilever | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | Non Specified - Single Edge | 3.96 mm | 0.156 in | Gold | 35 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Through Hole | 0.25 Ám | 10 Áin | 1 | 125 °C | -40 C | 35 | Single | Cantilever | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | Non Specified - Single Edge | 3.96 mm | 0.156 in | Gold | 35 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Right Angle Through Hole | 0.25 Ám | 10 Áin | 1 | 125 °C | -40 C | 35 | Single | Cantilever | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Wire Wrap | 0.128 " | 3.25 mm | Non Specified - Single Edge | 3.96 mm | 0.156 in | Gold | 35 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Through Hole | 0.25 Ám | 10 Áin | 1 | 125 °C | -40 C | 35 | Single | Cantilever | Side Mount Opening Unthreaded |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder Eyelet(s) | 0.128 " | 3.25 mm | Non Specified - Single Edge | 3.96 mm | 0.156 in | Gold | 35 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Through Hole | 0.25 Ám | 10 Áin | 1 | 125 °C | -40 C | 35 | Single | Cantilever | Flush Mount Top Opening Unthreaded |
