PPPC101 Series

Catalog

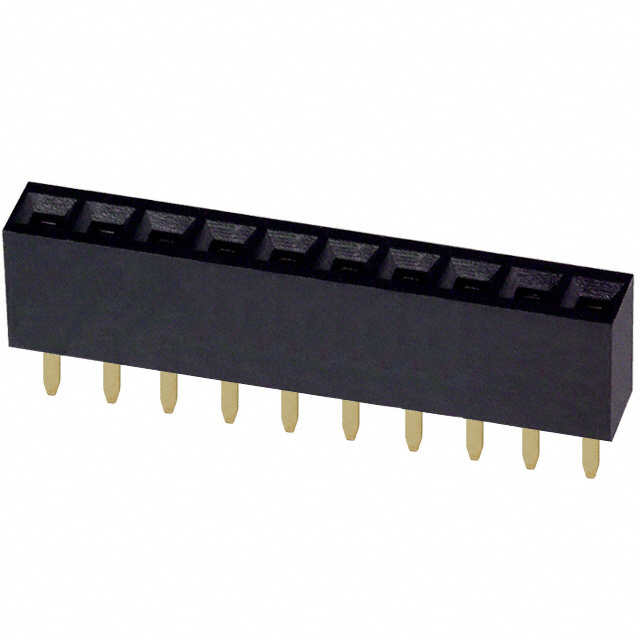

CONN HDR 10POS 0.1 GOLD PCB

Part	Contact Shape	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Material Flammability Rating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Positions	Insulation Color	Contact Finish - Mating	Termination	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Rows	Mounting Type	Connector Type	Pitch - Mating	Pitch - Mating
Sullins Connector Solutions PPPC101LFBN	Square	Flash	Phosphor Bronze	Polyester	Female Socket	0.126 "	3.2 mm	Push-Pull	UL94 V-0	Flash	All	0.335 "	8.51 mm	10	Black	Gold	Solder	3 A	250 V	-40 C	105 ░C	Gold	1	Through Hole	Header	0.1 "	2.54 mm
Sullins Connector Solutions PPPC101LFBN-RC	Square	Flash	Phosphor Bronze	Polyester	Female Socket	0.126 "	3.2 mm	Push-Pull	UL94 V-0	Flash	All	0.335 "	8.51 mm	10	Black	Gold	Solder	3 A	250 V	-40 C	105 ░C	Gold	1	Through Hole	Header	0.1 "	2.54 mm
