083611 Series
Manufacturer: Molex
Beta
⌘K

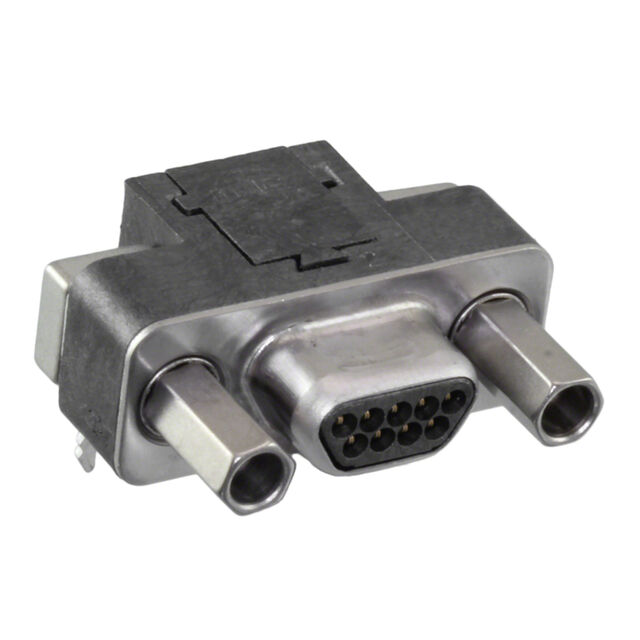

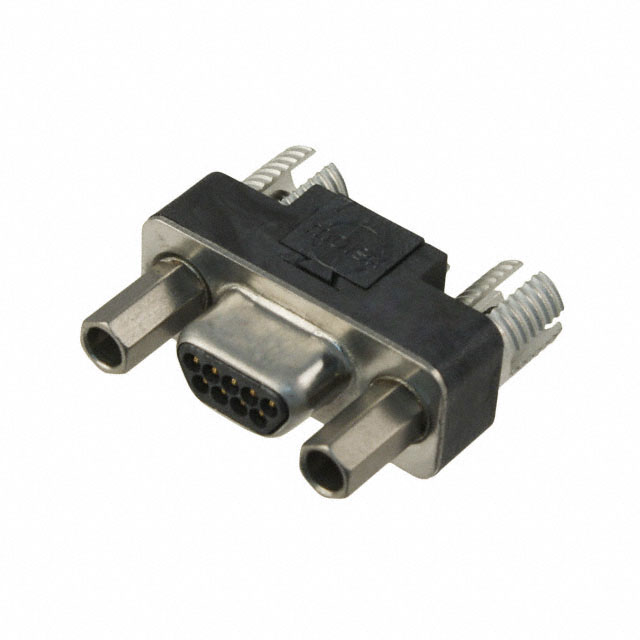

CONN MICRO-D PLUG 9POS R/A
| Part | Flange Feature | Number of Positions | Connector Style | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Type | Dielectric Material | Contact Finish | Material Flammability Rating | Contact Material | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Female Screwlock (2-56) Mating Side | 9 | D-Type Micro-D | Nickel Plated Steel | 0.05 | 0.05 | Panel Mount Right Angle Through Hole | Board Lock Shielded | 125 °C | -40 °C | 2 | Signal | Liquid Crystal Polymer (LCP) | Gold | UL94 V-0 | Copper Alloy | Male Pins Plug | 15 µin | 0.38 µm | |||
 Molex | 9 | D-Type Micro-D | Nickel Plated Steel | 0.05 | 0.05 | Panel Mount Right Angle Through Hole | Board Lock Shielded | 125 °C | -40 °C | 2 | Signal | Liquid Crystal Polymer (LCP) | Gold | UL94 V-0 | Copper Alloy | Male Pins Plug | 15 µin | 0.38 µm | Solder | |||
 Molex | Female Screwlock (2-56) Mating Side | 9 | D-Type Micro-D | Nickel Plated Steel | 0.05 | 0.05 | Panel Mount Right Angle Through Hole | Board Lock Shielded | 125 °C | -40 °C | 2 | Signal | Liquid Crystal Polymer (LCP) | Gold | UL94 V-0 | Copper Alloy | Male Pins Plug | 15 µin | 0.38 µm | Solder | ||
Molex | Housing/Shell (Unthreaded) | 9 | D-Type Micro-D | Nickel Plated Steel | 0.05 | 0.05 | Through Hole | Shielded | 125 °C | -40 °C | 2 | Signal | Liquid Crystal Polymer (LCP) | Gold | UL94 V-0 | Copper Alloy | Male Pins Plug | 15 µin | 0.38 µm | Solder | ||
Molex | ||||||||||||||||||||||
Molex | Housing/Shell (Unthreaded) | 9 | D-Type Micro-D | Nickel Plated Steel | 0.05 | 0.05 | Panel Mount Right Angle Through Hole | Shielded | 125 °C | -40 °C | 2 | Signal | Liquid Crystal Polymer (LCP) | Gold | UL94 V-0 | Copper Alloy | Male Pins Plug | 15 µin | 0.38 µm | Solder | 0.269 in | 6.85 mm |
 Molex | Female Screwlock (2-56) Mating Side | 9 | D-Type Micro-D | Nickel Plated Steel | 0.05 | 0.05 | Through Hole | Shielded | 125 °C | -40 °C | 2 | Signal | Liquid Crystal Polymer (LCP) | Gold | UL94 V-0 | Copper Alloy | Male Pins Plug | 15 µin | 0.38 µm | Solder |
