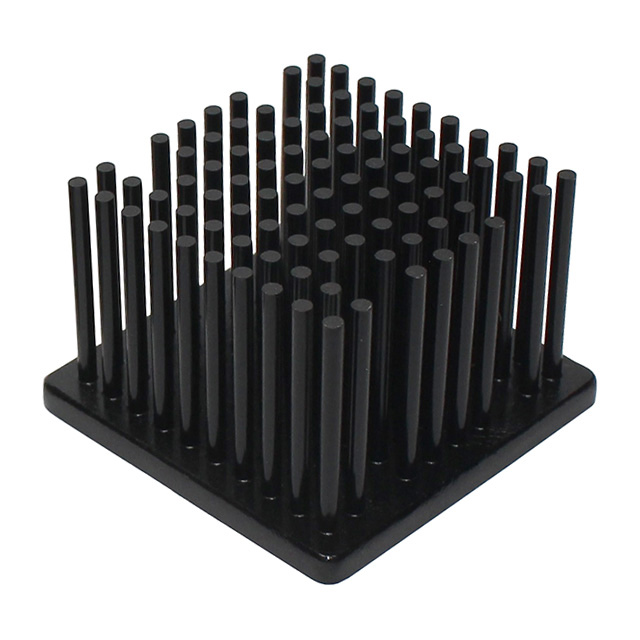

APR35 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Material Finish	Type	Shape	Thermal Resistance @ Forced Air Flow	Thermal Resistance @ Natural	Fin Height	Fin Height	Attachment Method	Material	Length [x]	Length [x]	Package Cooled	Fin Height [custom]	Fin Height [custom]	Fin Height [z]	Fin Height [z]	Fin Height [custom]	Fin Height [custom]
CTS Thermal Management Products APR35-35-33CB/A01	24 Months	Black Anodized	Top Mount	Pin Fins Square	1.9 °C/W	8.22 °C/W	1.283 in	32.6 mm	Thermal Tape Adhesive (Included)	Aluminum Alloy	1.366 in	34.7 mm	ASIC BGA CPU LGA
CTS Thermal Management Products APR35-35-12CB/A01	24 Months	Black Anodized	Top Mount	Pin Fins Square	3.5 °C/W				Thermal Tape Adhesive (Included)	Aluminum	1.366 in	34.7 mm	ASIC BGA CPU LGA	0.457 in	11.6 mm
CTS Thermal Management Products APR35-35-15CB/A01	24 Months	Black Anodized	Top Mount	Pin Fins Square	2.97 °C/W	10.6 °C/W		14.6 mm	Thermal Tape Adhesive (Included)	Aluminum Alloy	1.366 in	34.7 mm	ASIC BGA CPU LGA	0.575 in
CTS Thermal Management Products APR35-35-28CB/A01	24 Months	Black Anodized	Top Mount	Pin Fins Square	2.06 °C/W	8.87 °C/W			Thermal Tape Adhesive (Included)	Aluminum Alloy	1.366 in	34.7 mm	ASIC BGA CPU LGA			27.6 mm	1.087 in
CTS Thermal Management Products APR35-35-23CB/A01	24 Months	Black Anodized	Top Mount	Pin Fins Square	2.28 °C/W	9.49 °C/W			Thermal Tape Adhesive (Included)	Aluminum Alloy	1.366 in	34.7 mm	ASIC BGA CPU LGA					22.61 mm	0.89 in
CTS Thermal Management Products APR35-35-18CB/A01	24 Months	Black Anodized	Top Mount	Pin Fins Square	2.7 °C/W	10.2 °C/W			Thermal Tape Adhesive (Included)	Aluminum Alloy	1.366 in	34.7 mm	ASIC BGA CPU LGA			19.6 mm	0.772 in
CTS Thermal Management Products APR35-35-21CB/A01	24 Months	Black Anodized	Top Mount	Pin Fins Square	2.51 °C/W	9.85 °C/W	0.811 in	20.6 mm	Thermal Tape Adhesive (Included)	Aluminum Alloy	1.366 in	34.7 mm	ASIC BGA CPU LGA
