LCB500 Series

Catalog

CONN TERM RECT TONG 500 MCM #1/2

Part	Terminal Type	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Tab Thickness	Tab Thickness	Terminal Style	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Wire Gauge	Wire Gauge	Color	Mounting Type	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Termination	Stud/Tab Size	Contact Finish	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall
Panduit Corp LCB500-12F-6	Rectangular Tongue	0.53 in	13.46 mm	5.59 mm	0.22 in	Single Stud Hole	Copper	39.12 mm	1.54 "	Non-Insulated	500 kcmil	500 kcmil	Brown	Free Hanging (In-Line) Right Angle	26.92 mm	1.06 in	Barrel Crimp	1/2 Stud	Electro-Tin

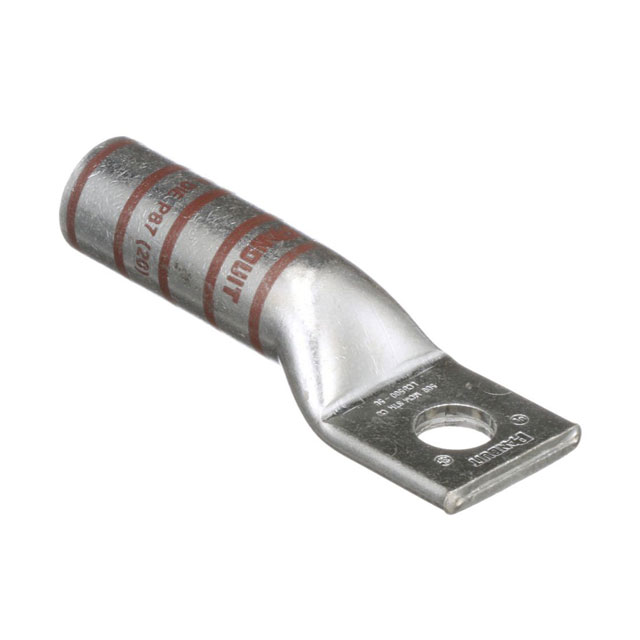

Panduit Corp LCB500-58-6	Rectangular Tongue			5.59 mm	0.22 in	Single Stud Hole	Copper	39.12 mm	1.54 "	Non-Insulated	500 kcmil	500 kcmil	Brown	Free Hanging (In-Line)	26.92 mm	1.06 in	Barrel Crimp		Electro-Tin	0.625 Stud	120.4 mm	4.74 in

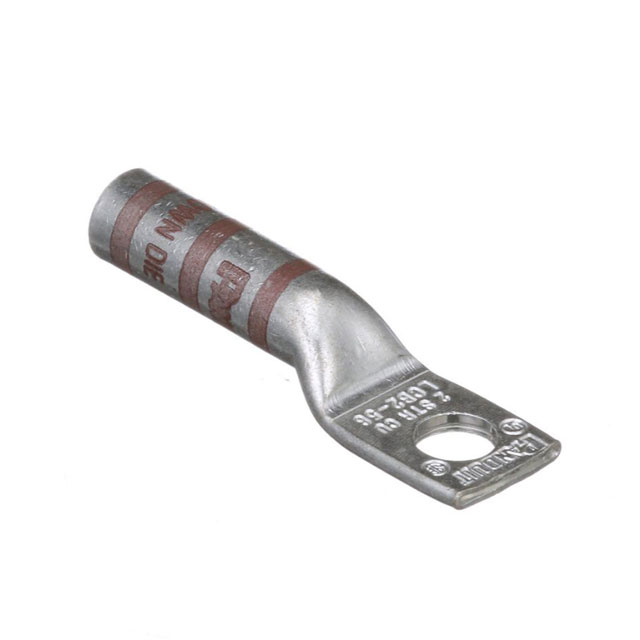

Panduit Corp LCB500-12-6	Rectangular Tongue	0.53 in	13.46 mm	5.59 mm	0.22 in	Single Stud Hole	Copper	39.12 mm	1.54 "	Non-Insulated	500 kcmil	500 kcmil	Brown	Free Hanging (In-Line)	26.92 mm	1.06 in	Barrel Crimp	1/2 Stud	Electro-Tin				4.53 in	115 mm

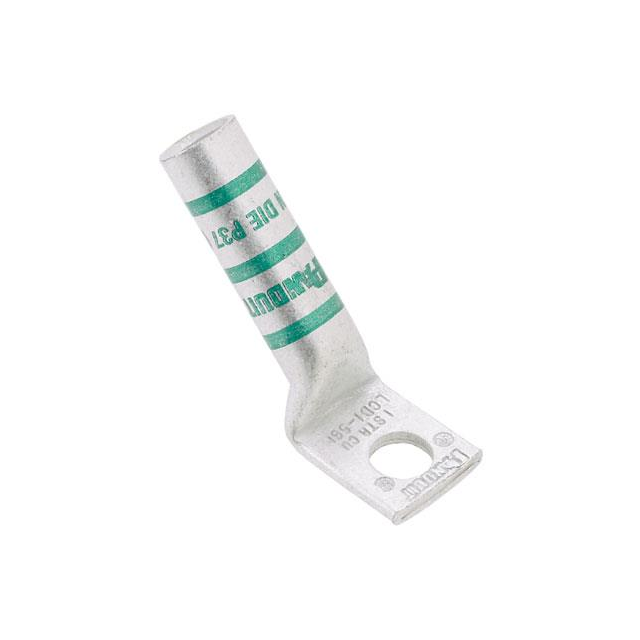

Panduit Corp LCB500-58H-6	Rectangular Tongue			5.59 mm	0.22 in	Single Stud Hole	Copper	39.12 mm	1.54 "	Non-Insulated	500 kcmil	500 kcmil	Brown	45° Angle Free Hanging (In-Line)	26.92 mm	1.06 in	Barrel Crimp		Electro-Tin	0.625 Stud
