H2072 Series

Catalog

TERMINAL, TURRET, 2.11MM, NON INSULATED

Part	Termination	Board Thickness	Board Thickness	Staking Side ID [Max]	Staking Side ID [Min]	Staking Side ID [Min]	Staking Side ID [Max]	Number of Turrets	Diameter - Turret Head [diameter]	Diameter - Turret Head [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Terminal Type	Length - Above Board [x]	Length - Above Board [x]	Staking Side OD [Max]	Staking Side OD [Min]	Staking Side OD [Min]	Staking Side OD [Max]	Contact Material	Length - Overall [x]	Length - Overall [x]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Insulation	Mounting Type	Staking Side OD [Max]	Length - Below Flange [Max] [x]	Length - Below Flange [Min] [x]	Length - Below Flange [Min] [x]	Length - Below Flange [Max] [x]	Length - Overall	Length - Overall	Board Thickness [custom]	Board Thickness [custom]

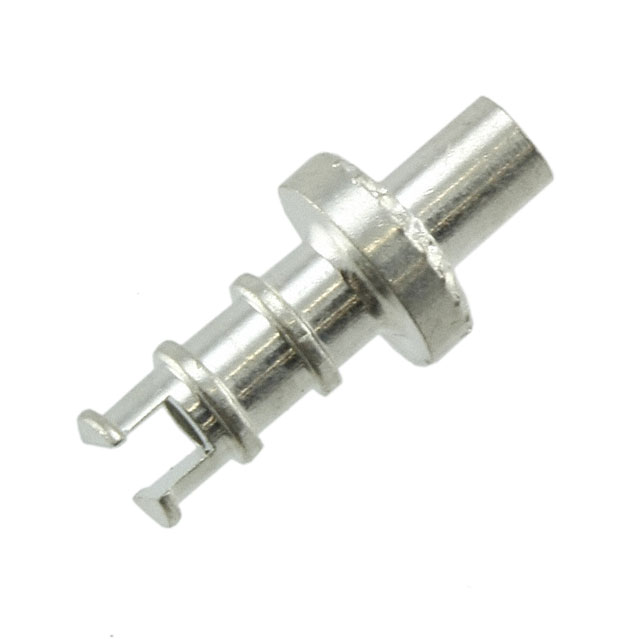

Harwin Inc. H2072Z01	Swage	0.063 in	1.6 mm	0.049 in	1.17 mm	0.046 "	1.24 mm	Triple	0.1 in	2.54 mm	2.39 mm	0.094 "	0.083 in	2.11 mm	0.079 in	2.01 mm	Fork Single End	6.52 mm	0.257 in	2.01 mm	1.87 mm	0.074 "	0.079 in	Brass Alloy	0.351 in	8.91 mm	Tin	3.96 mm	0.156 "	Non-Insulated	Through Hole

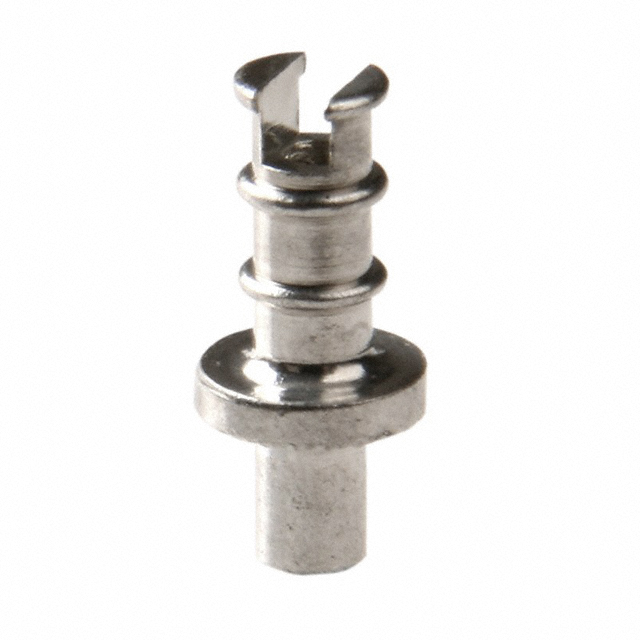

Harwin Inc. H2072-01	Swage	0.063 in	1.6 mm	0.06 in	1.4 mm	0.055 in	1.53 mm	Triple	0.128 in	3.25 mm			0.089 in	2.26 mm	0.085 in	2.17 mm	Fork Single End	6.35 mm	0.25 in		2.03 mm	0.08 in	0.085 "	Brass Alloy	0.344 in	8.74 mm	Tin	3.96 mm	0.156 "	Non-Insulated	Through Hole	2.16 mm	2.51 mm	2.39 mm	0.094 "	0.099 "

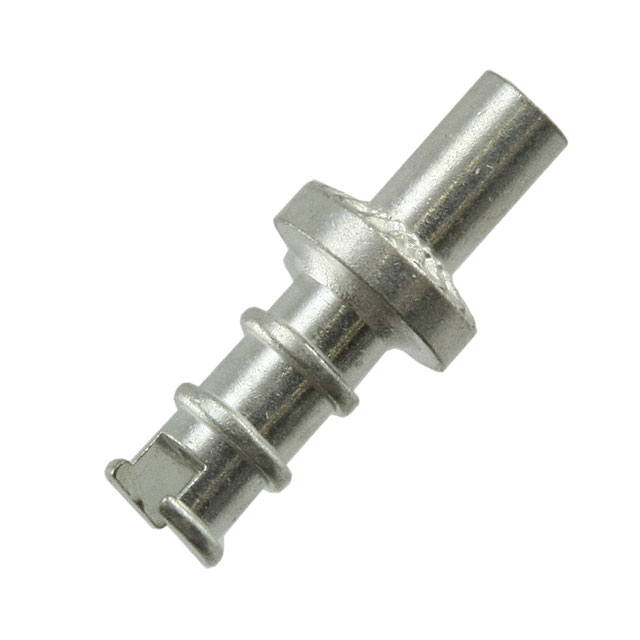

Harwin Inc. H2072ZL1	Swage			0.048 "	1.17 mm	0.046 "	1.22 mm	Triple	0.1 in	2.54 mm	3.18 mm	0.125 "	0.083 in	2.11 mm	0.079 in	2.01 mm	Fork Single End	6.52 mm	0.257 in	2.01 mm	1.87 mm	0.074 "	0.079 in	Brass Alloy			Tin	3.96 mm	0.156 "	Non-Insulated	Through Hole						9.7 mm	0.382 "	0.094 in	2.39 mm
