LNJ306 Series

Catalog

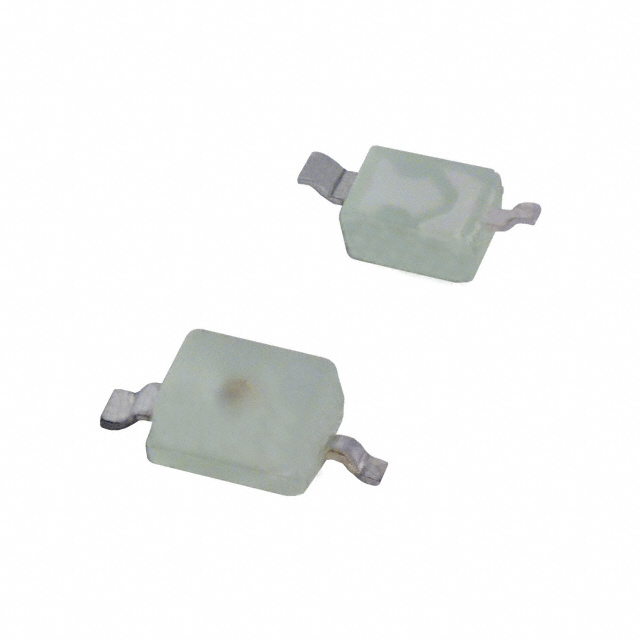

LED GREEN DIFFUSED SMD

Part	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Style	Height (Max) [Max] [z]	Wavelength - Peak	Lens Transparency	Package / Case	Configuration	Color	Current - Test	Lens Color	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Lens Size [y]	Lens Size [x]	Supplier Device Package
Panasonic Industrial Automation Sales LNJ306G5TR02	2.03 V	5 mcd	Rectangle with Flat Top	1.1 mm	565 nm	Diffused	0805	Standard	Green	10 mA	Green	Surface Mount	1.25 mm	1.7 mm	1.25 mm	1.7 mm
Panasonic Industrial Automation Sales LNJ306G5TUWQ	2.03 V	5 mcd	Rectangle with Flat Top	1.1 mm	565 nm	Diffused	0805	Standard	Green	10 mA	Green	Surface Mount	1.25 mm	1.7 mm	1.25 mm	1.7 mm	SMD
Panasonic Industrial Automation Sales LNJ306G5PRX	2.03 V	0.65 mcd	Rectangle with Flat Top	1.1 mm	555 nm	Diffused	0805	Standard	Green	10 mA	Green	Surface Mount	1.25 mm	1.7 mm	1.25 mm	1.7 mm
Panasonic Industrial Automation Sales LNJ306G5URA	2.03 V	2.6 mcd	Rectangle with Flat Top	1.1 mm	565 nm	Diffused	0805	Standard	Green	10 mA	Green	Surface Mount	1.25 mm	1.7 mm	1.25 mm	1.7 mm	S-J Type LED
