170225 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

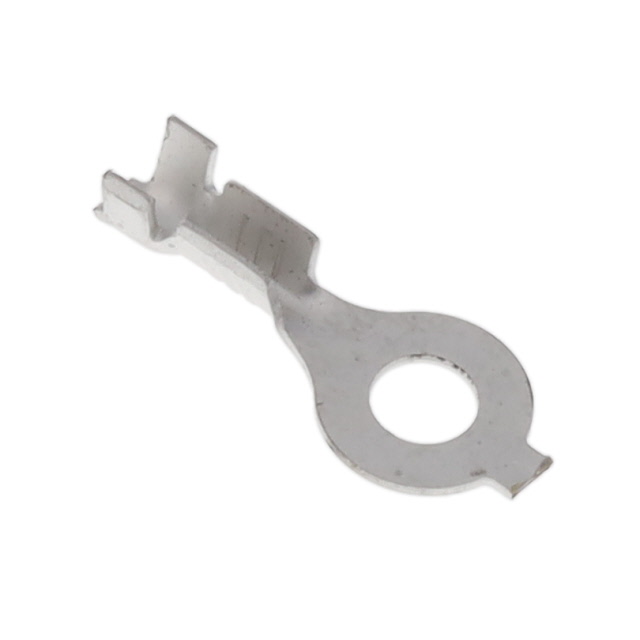

CONN RING CIRC 18-22AWG #6 CRIMP
| Part | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation | Contact Finish | Features | Wire Gauge [Max] | Wire Gauge [Min] | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] | Termination | Terminal Type | Mounting Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2.79 mm | 0.11 " | 1.52 mm | 0.06 in | Non-Insulated | Tin | Serrated Termination | 22 AWG | 17.5 AWG | 6 Stud | 18.1 mm | 0.713 in | Crimp | Circular | Free Hanging (In-Line) | 0.295 in | 7.49 mm | Brass |
