GZC02 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD R/A 2POS 2.54MM

Part	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Insulation Material	Connector Type	Insulation Color	Number of Positions	Shrouding	Current Rating (Amps)	Style	Termination	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Material Flammability Rating	Number of Positions Loaded	Voltage Rating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]
Sullins Connector Solutions GZC02SGSN-M89	Tin-Lead	0.1 "	2.54 mm	Male Pin	2.54 µm	100 µin	Gold	Nylon 9T Polyamide (PA9T)	Header	Black	2	Unshrouded	3 A	Board to Board Cable	Solder	Push-Pull	-65 ░C	125 °C	Phosphor Bronze	1	0.25 µm	10 µin	Right Angle Surface Mount	8.08 mm	0.318 in	Square	UL94 V-0	All	600 V	3.56 mm	0.14 in
Sullins Connector Solutions GZC02DABN-M30	Tin-Lead	0.1 "	2.54 mm	Male Pin	2.54 µm	100 µin	Gold	Nylon 9T Polyamide (PA9T)	Header	Black	4	Unshrouded	3 A	Board to Board Cable	Solder	Push-Pull	-65 ░C	125 °C	Phosphor Bronze		0.25 µm	10 µin	Surface Mount	5.84 mm	0.23 in	Square	UL94 V-0	All	600 V	2.54 mm	0.1 in	0.1 in	2.54 mm	2

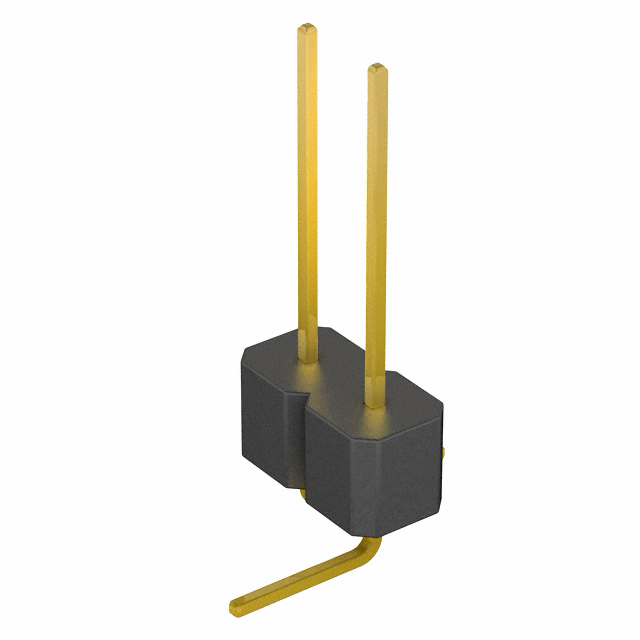

Sullins Connector Solutions GZC02SABN-M30	Tin-Lead	0.1 "	2.54 mm	Male Pin	2.54 µm	100 µin	Gold	Nylon 9T Polyamide (PA9T)	Header	Black	2	Unshrouded	3 A	Board to Board Cable	Solder	Push-Pull	-65 ░C	125 °C	Phosphor Bronze	1	0.25 µm	10 µin	Surface Mount	5.84 mm	0.23 in	Square	UL94 V-0	All	600 V	2.54 mm	0.1 in

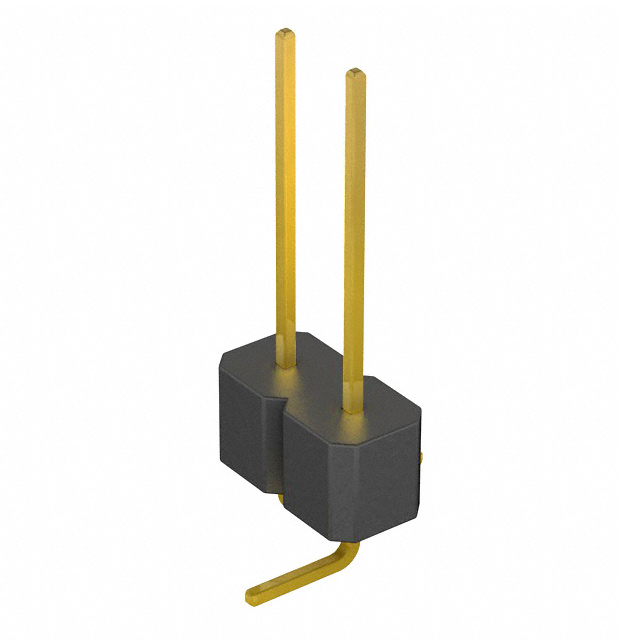

Sullins Connector Solutions GZC02SFBN-M30	Tin-Lead	0.1 "	2.54 mm	Male Pin	2.54 µm	100 µin	Gold	Nylon 9T Polyamide (PA9T)	Header	Black	2	Unshrouded	3 A	Board to Board Cable	Solder	Push-Pull	-65 ░C	125 °C	Phosphor Bronze	1	0.25 µm	10 µin	Surface Mount	8.08 mm	0.318 in	Square	UL94 V-0	All	600 V	2.54 mm	0.1 in
