2825272 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN WIRE TO BOARD HDR 10 POS 4.2MM SOLDER ST THRU-HOLE TRAY
| Part | Pitch - Mating | Pitch - Mating | Number of Positions | Voltage Rating | Number of Positions Loaded | Connector Type | Insulation Material | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Contact Shape | Contact Material | Fastening Type | Contact Type | Style | Row Spacing - Mating | Row Spacing - Mating | Termination | Mounting Type | Number of Rows | Material Flammability Rating | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Shrouding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 4.2 mm | 0.165 in | 10 | 600 VAC | All | Header | Nylon Polyamide (PA) | Tin | 3.5 mm | 0.138 in | Square | Copper Alloy | Locking Ramp | Male Pin | Board to Cable/Wire | 4.2 mm | 0.165 in | Solder | Through Hole | 2 | UL94 V-0 | 12.8 mm | 0.504 in | -40 °C | 105 ░C | 13 A | Shrouded - 4 Wall | |

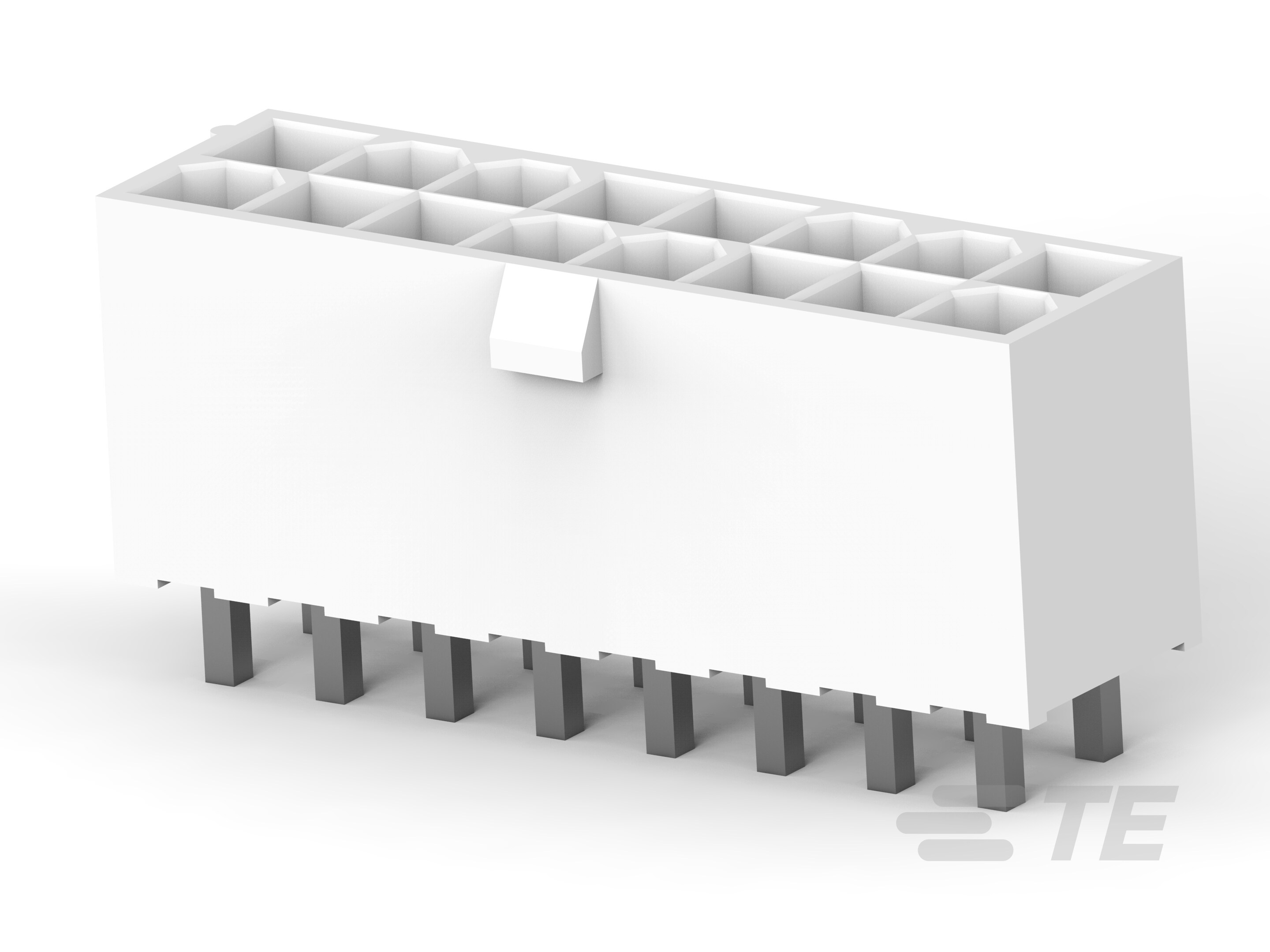

 TE Connectivity Raychem Cable Protection | 4.2 mm | 0.165 in | 600 VAC | All | Header | Nylon Polyamide (PA) | Tin | 3.5 mm | 0.138 in | Square | Copper Alloy | Locking Ramp | Male Pin | Board to Cable/Wire | 4.2 mm | 0.165 in | Solder | Through Hole | 2 | UL94 V-0 | 12.8 mm | 0.504 in | -40 °C | 105 ░C | 13 A | Shrouded - 4 Wall | 16 |
