APBVA3010 Series

Catalog

LED RED/YLW CLR CHIP SMD R/A

Part	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Wavelength - Dominant	Height (Max) [z]	Viewing Angle	Lens Color	Mounting Type	Lens Style	Voltage - Forward (Vf) (Typ)	Color	Millicandela Rating	Configuration	Supplier Device Package	Wavelength - Peak	Lens Size [y]	Lens Size [x]	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant
Kingbright APBVA3010EYC	Clear	3 mm	2 mm	20 mA 20 mA	588nm Yellow 625nm Red	1 mm	140 °	Colorless	Right Angle Surface Mount	Rectangle with Domed Top	2 V 2.1 V	Red Yellow	6 mcd 15 mcd	Common Anode	Chip LED	590 nm 627 nm	1 mm	2 mm	3-SMD No Lead

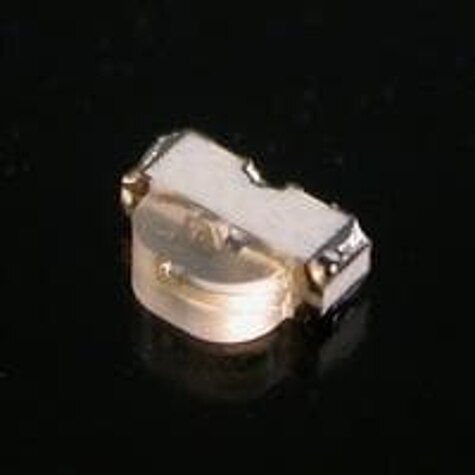

Kingbright APBVA3010SURKCGKC	Clear	3 mm	2 mm		570nm Green 630nm Red	1 mm	140 °	Colorless	Right Angle Surface Mount	Rectangle with Domed Top	1.95 V 2.1 V	Green Red		Common Anode	Chip LED	574 nm 650 nm	1 mm	2 mm	3-SMD No Lead	50 mcd	200 mcd	20 mA	20 mA
Kingbright APBVA3010YSGC	Clear	3 mm	2 mm	20 mA 20 mA	568nm Green 588nm Yellow	1 mm	140 °	Colorless	Right Angle Surface Mount	Rectangle with Domed Top	2.1 V 2.2 V	Green Yellow	6 mcd 15 mcd	Common Anode	Chip LED		1 mm	2 mm	3-SMD No Lead					565nm Green 590nm Yellow
Kingbright APBVA3010SYKCGKC	Clear	3 mm	2 mm	20 mA 20 mA		1 mm	140 °	Colorless	Right Angle Surface Mount	Rectangle with Domed Top		Green Yellow	50 mcd 150 mcd	Common Anode	Chip LED		1 mm	2 mm	3-SMD No Lead					574nm Green 590nm Yellow	2.1 V	2 V	570 nm 590 nm
