ST1W008S Series

Catalog

CONN MICRO SD CARD HINGED TYPE

Part	Contact Finish Thickness	Mounting Type	Contact Finish	Number of Positions	Mounting Feature	Card Type	Insertion, Removal Method	Connector Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Features

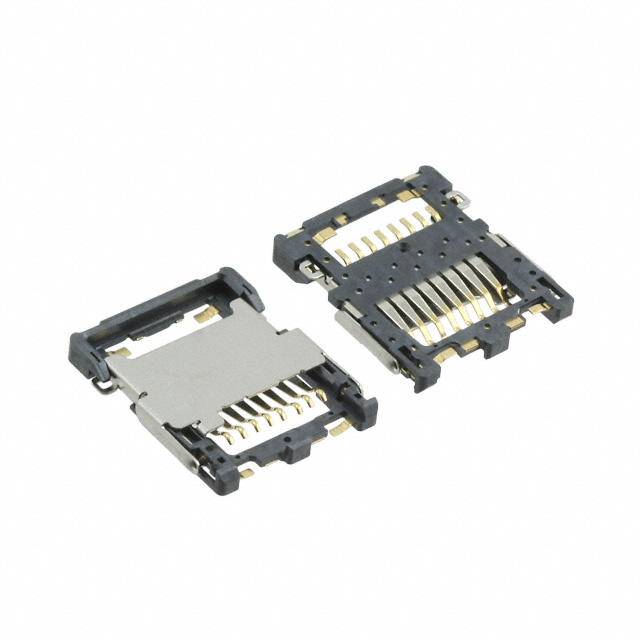

JAE Electronics ST1W008S4ER1500	Flash	Right Angle Surface Mount	Gold	8	Normal Standard - Top	Secure Digital - microSD™	Hinged Lid	Connector and Ejector	2 mm	0.079 in
JAE Electronics ST1W008S4AC100		Right Angle Surface Mount	Gold	8	Normal Standard - Top	Secure Digital - microSD™	Hinged Lid		2 mm	0.079 in

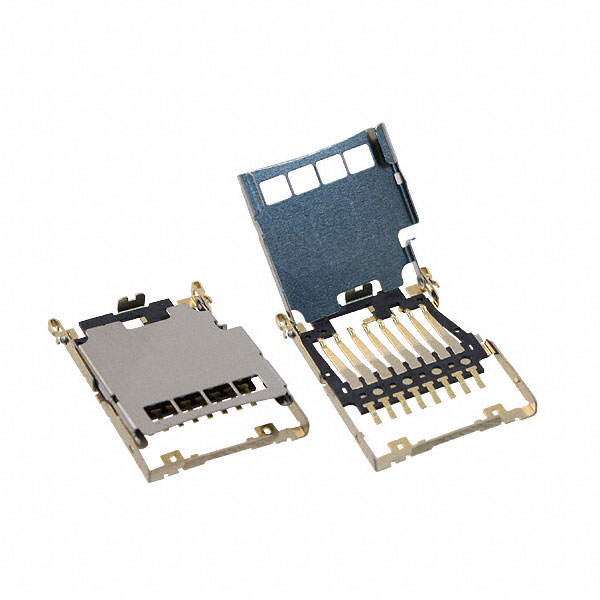

JAE Electronics ST1W008S4GR300		Right Angle Surface Mount	Gold	8	Normal Standard - Top	Secure Digital - microSD™	Hinged Lid	Connector and Ejector			20 µin	0.51 µm	0.055 in	1.4 mm

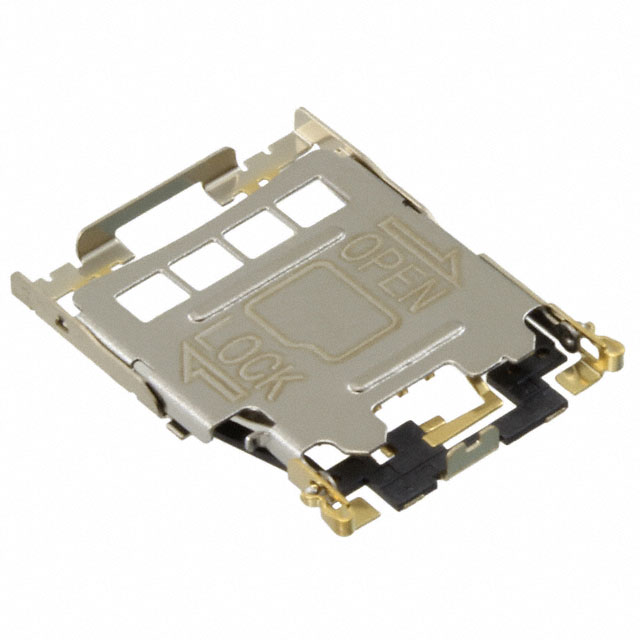

JAE Electronics C2777-ST1W008S4TR300		Right Angle Surface Mount	Gold	8	Normal Standard - Top	Secure Digital - microSD™	Hinged Lid	Connector and Ejector	2 mm	0.079 in	19.7 µin	0.5 µm

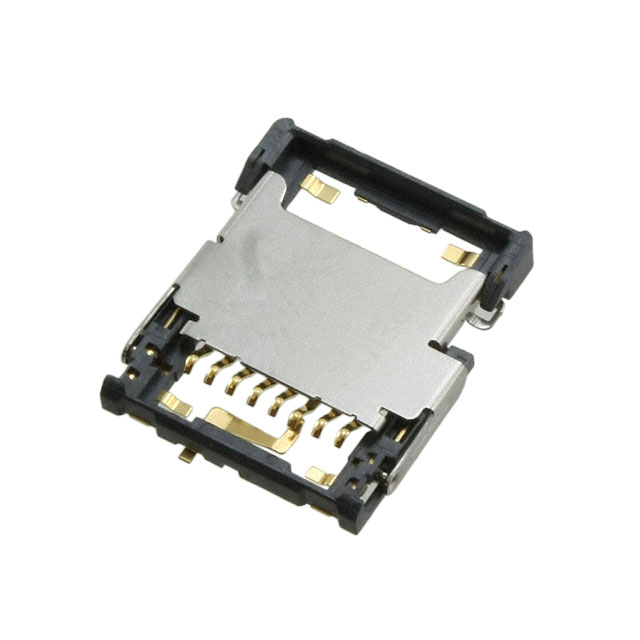

JAE Electronics ST1W008S4BR1500		Right Angle Surface Mount	Gold	9	Normal Standard - Top	Secure Digital - microSD™	Hinged Lid	Connector and Ejector	2 mm	0.079 in	20 µin	0.51 µm			Switch
JAE Electronics ST1W008S4E		Right Angle Surface Mount	Gold	8	Normal Standard - Top	Secure Digital - microSD™	Hinged Lid	Connector and Ejector	2 mm	0.079 in	19.7 µin	0.5 µm

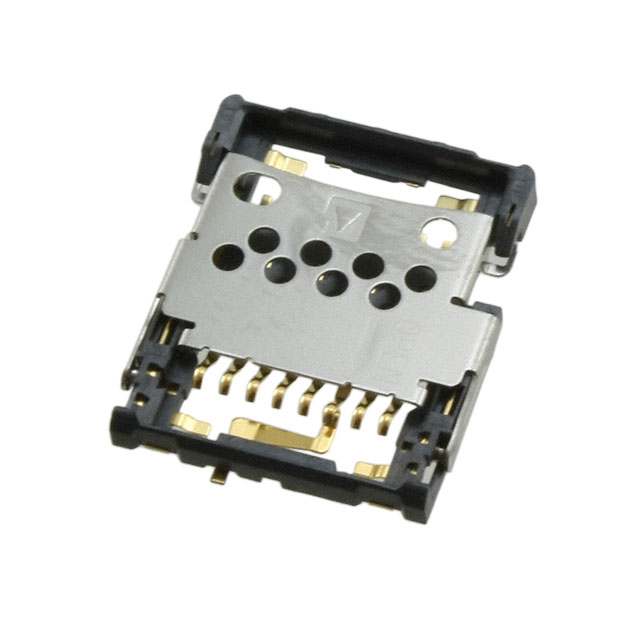

JAE Electronics ST1W008S4DR1500		Right Angle Surface Mount	Gold	9	Normal Standard - Top	Secure Digital - microSD™	Hinged Lid	Connector and Ejector	2 mm	0.079 in	19.7 µin	0.5 µm			Switch

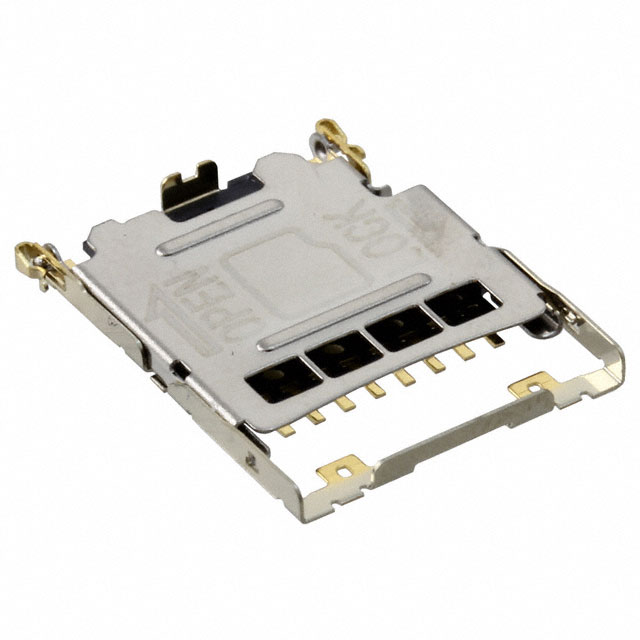

JAE Electronics ST1W008S4TR2000		Right Angle Surface Mount	Gold	9	Normal Standard - Top	Secure Digital - microSD™	Hinged Lid	Connector and Ejector			19.7 µin	0.5 µm	0.055 in	1.4 mm	Switch

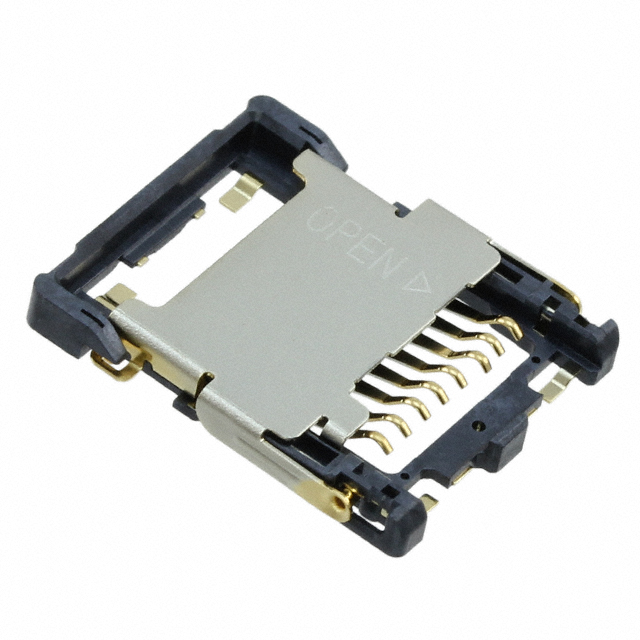

JAE Electronics ST1W008S4AR1500		Right Angle Surface Mount	Gold	8	Normal Standard - Top	Secure Digital - microSD™	Hinged Lid	Connector and Ejector	2 mm	0.079 in	19.7 µin	0.5 µm
JAE Electronics ST1W008S4GR2000		Right Angle Surface Mount	Gold	8	Normal Standard - Top	Secure Digital - microSD™	Hinged Lid	Connector and Ejector					0.055 in	1.4 mm
