746-120 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 120POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Number of Positions	Card Type	Number of Positions/Bay/Row [custom]	Read Out	Termination	Gender	Contact Material	Contact Type	Pitch	Pitch	Contact Finish	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Color
EDAC Inc. 746-120-525-201	2	Polyester Thermoplastic	120	Non Specified - Dual Edge	60	Dual	Press-Fit	Female	Copper Alloy	Cantilever	3.18 mm	0.125 in	Gold	2	30 Áin	0.76 Ám	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
EDAC Inc. 746-120-553-201	2	Polyester Thermoplastic	120	Non Specified - Dual Edge	60	Dual	Press-Fit Wire Wrap	Female	Copper Alloy	Cantilever	3.18 mm	0.125 in	Gold	2	30 Áin	0.76 Ám	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
EDAC Inc. 746-120-520-601	2	Polyester Thermoplastic	120	Non Specified - Dual Edge	60	Dual	Press-Fit	Female	Copper Alloy	Cantilever	3.18 mm	0.125 in	Gold	2	30 Áin	0.76 Ám	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
EDAC Inc. 746-120-540-601	2	Polyester Thermoplastic	120	Non Specified - Dual Edge	60	Dual	Press-Fit Wire Wrap	Female	Copper Alloy	Cantilever	3.18 mm	0.125 in	Gold	2	30 Áin	0.76 Ám	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
EDAC Inc. 746-120-540-606	2	Polyester Thermoplastic	120	Non Specified - Dual Edge	60	Dual	Press-Fit Wire Wrap	Female	Copper Alloy	Cantilever	3.18 mm	0.125 in	Gold	2	30 Áin	0.76 Ám	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
EDAC Inc. 746-120-553-606	2	Polyester Thermoplastic	120	Non Specified - Dual Edge	60	Dual	Press-Fit Wire Wrap	Female	Copper Alloy	Cantilever	3.18 mm	0.125 in	Gold	2	30 Áin	0.76 Ám	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
EDAC Inc. 746-120-540-206	2	Polyester Thermoplastic	120	Non Specified - Dual Edge	60	Dual	Press-Fit Wire Wrap	Female	Copper Alloy	Cantilever	3.18 mm	0.125 in	Gold	2	30 Áin	0.76 Ám	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black

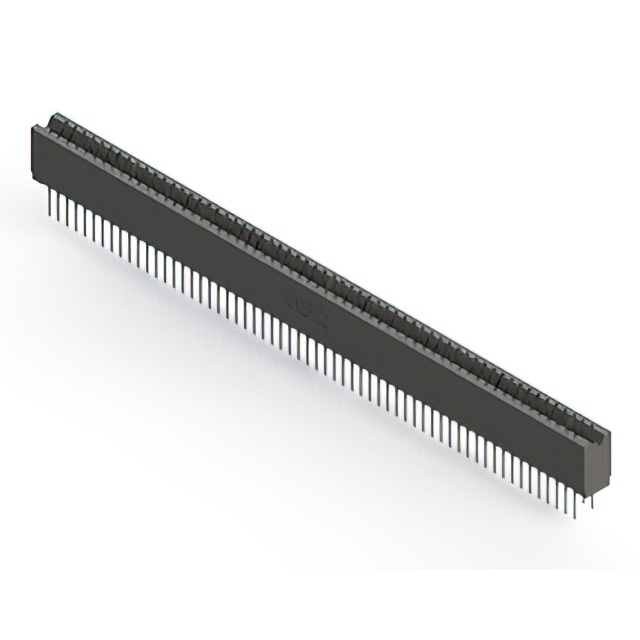

EDAC Inc. 746-120-527-206	2	Polyester Thermoplastic	120	Non Specified - Dual Edge	60	Dual	Press-Fit	Female	Copper Alloy	Cantilever	3.18 mm	0.125 in	Gold	2	30 Áin	0.76 Ám	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black

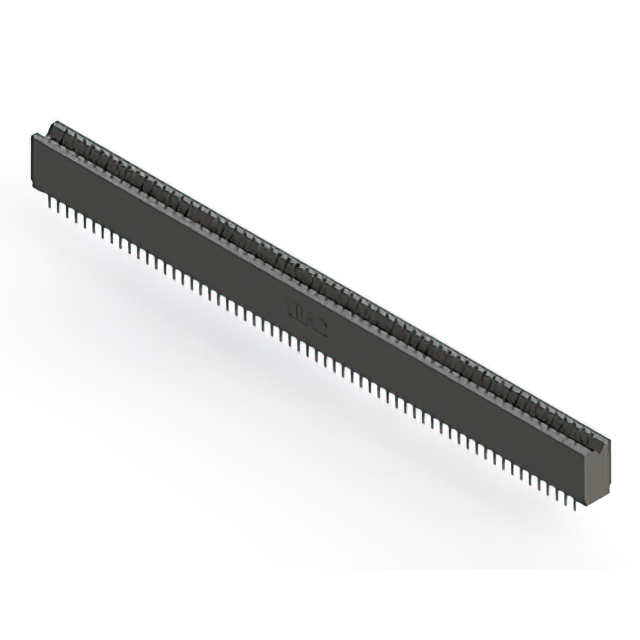

EDAC Inc. 746-120-520-206	2	Polyester Thermoplastic	120	Non Specified - Dual Edge	60	Dual	Press-Fit	Female	Copper Alloy	Cantilever	3.18 mm	0.125 in	Gold	2	30 Áin	0.76 Ám	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
EDAC Inc. 746-120-545-201	2	Polyester Thermoplastic	120	Non Specified - Dual Edge	60	Dual	Press-Fit Wire Wrap	Female	Copper Alloy	Cantilever	3.18 mm	0.125 in	Gold	2	30 Áin	0.76 Ám	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
