3276 Series

Catalog

CONN SPLICE 10-12/14-16AWG CRIMP

Part	Insulation	Features	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Color	Number of Wire Entries	Mounting Type	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Thickness [custom]	Thickness [custom]	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]
TE Connectivity Raychem Cable Protection 327638	Fully Insulated	Serrated Mating Area Step Up/Step Down	Butt Splice Individual Openings Inline	10 AWG 14 AWG	12 AWG 16 AWG	Crimp	Yellow	2

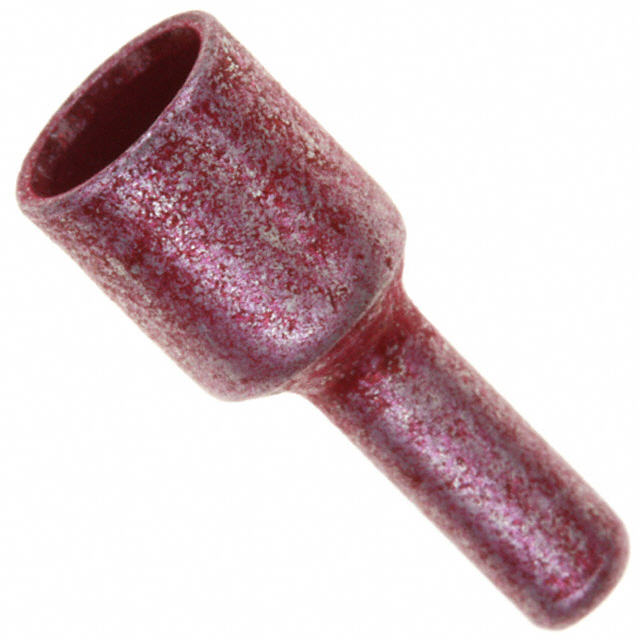

TE Connectivity Raychem Cable Protection 327636	Non-Insulated	Step Up/Step Down	Butt Splice Individual Openings Inline	10 AWG 17.5 AWG	12 AWG 22 AWG	Crimp	Red	2

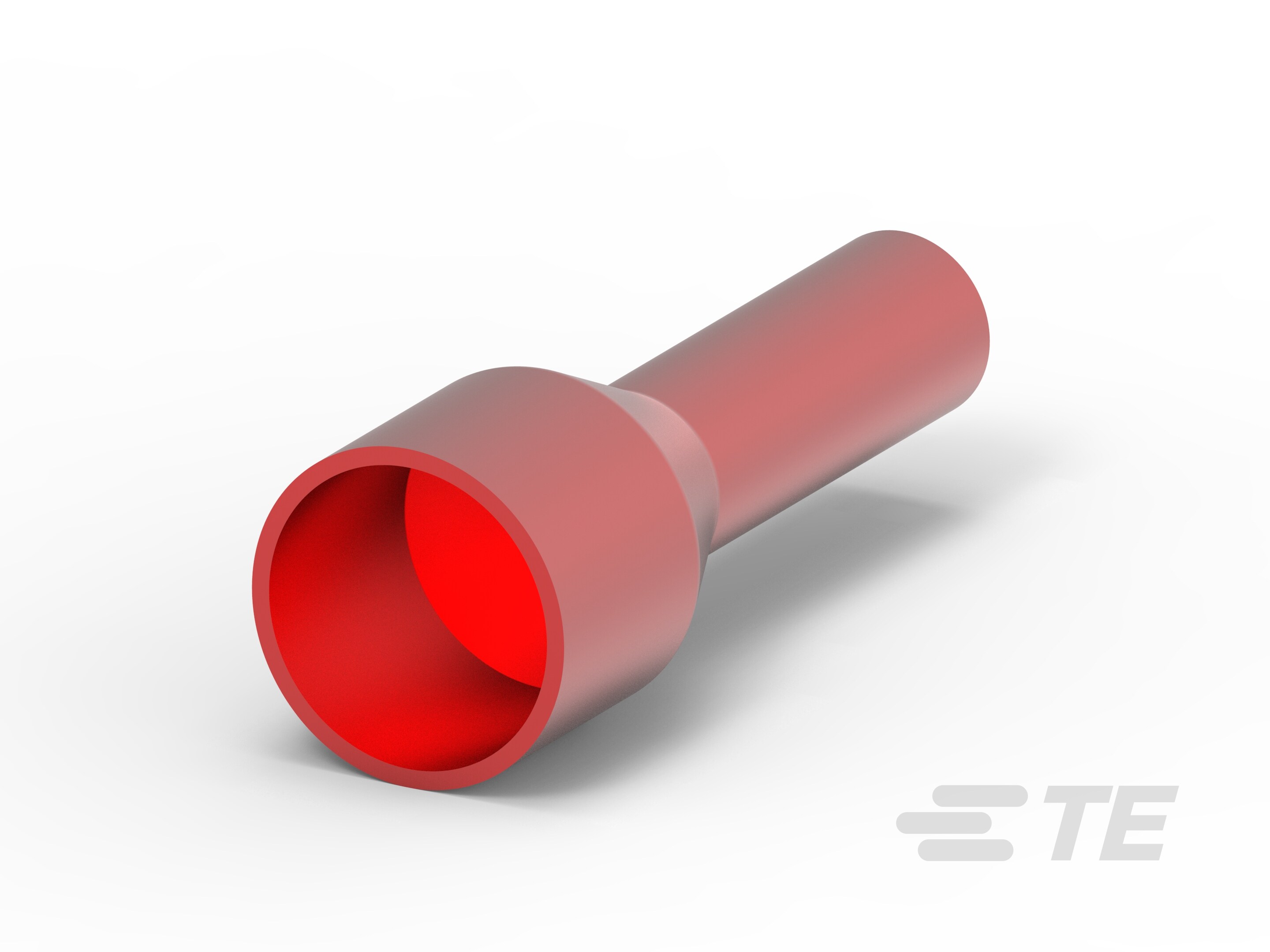

TE Connectivity Raychem Cable Protection 327635	Non-Insulated	Step Up/Step Down	Butt Splice Individual Openings Inline	14 AWG 17.5 AWG	16 AWG 22 AWG	Crimp	Red	2
TE Connectivity Raychem Cable Protection 327640	Non-Insulated	Serrated Termination	Circular	22 AWG	26 AWG	Crimp			Free Hanging (In-Line)	2 Stud	0.344 in	8.74 mm	0.46 mm	0.018 in	Copper	3.56 mm	0.14 in
