5973604 Series

Manufacturer: DIALIGHT

Catalog

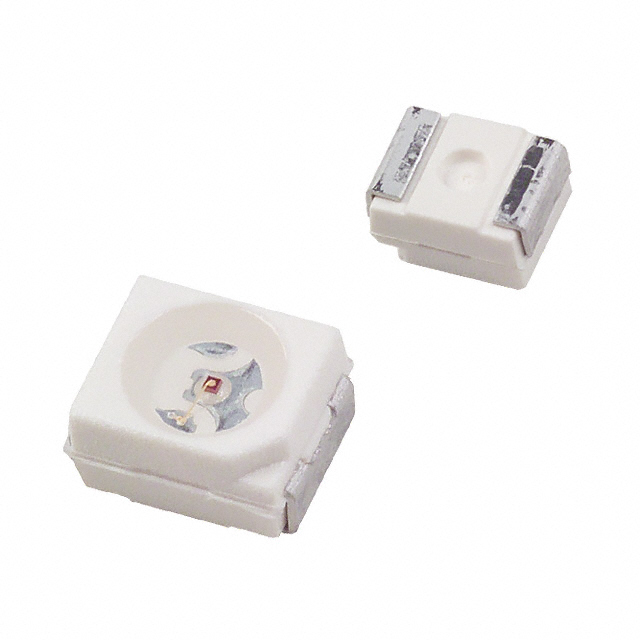

LED BLUE 0603 SMD

Part	Package / Case	Package / Case	Lens Size [y]	Lens Size [x]	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [z]	Millicandela Rating	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Lens Style	Color	Configuration	Mounting Type	Supplier Device Package	Viewing Angle	Wavelength - Peak
DIALIGHT 5973604507F	1608 Metric	0603	0.8 mm	1.2 mm	5 mA	1.6 mm	0.8 mm	0.68 mm	40 mcd	470 nm	2.9 V	Rectangle with Flat Top	Blue	Standard	Surface Mount
DIALIGHT 5973604307F		2-PLCC			20 mA	3.2 mm	2.8 mm	2.1 mm	56 mcd	470 nm	3.9 V	Round with Flat Top	Blue	Standard	Surface Mount	2-PLCC	120 °	468 nm
DIALIGHT 5973604302F		2-PLCC			20 mA	3.2 mm	2.8 mm	2.1 mm	56 mcd	470 nm	3.9 V	Round with Flat Top	Blue	Standard	Surface Mount	2-PLCC	120 °	468 nm
