WL9 Series

Catalog

SENSOR RETROREFLECTIVE 2.5M NPN

Part	Cable Length	Cable Length	Connection Method	Output Configuration	Sensing Distance	Sensing Distance	Response Time	Ingress Protection	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Voltage - Supply [Min]	Voltage - Supply [Max]	Adjustment Type	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]

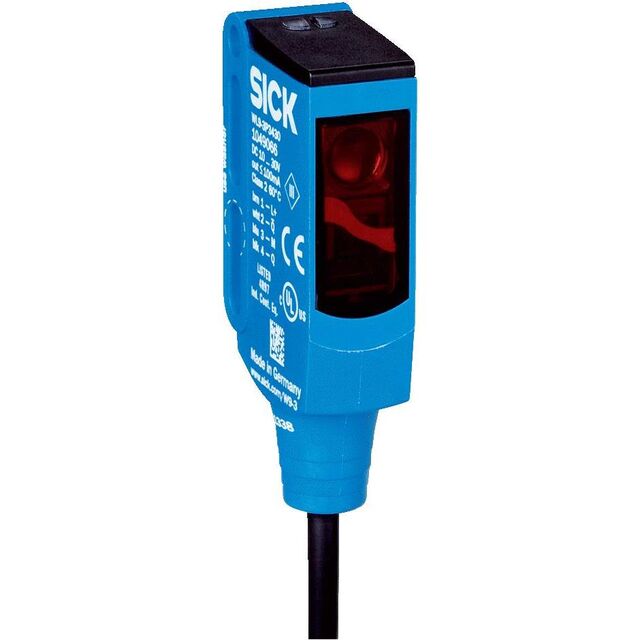

SICK, Inc. 1049069	78.74 "	2 m	Cable	NPN	2.5 m	98.425 in	500 µs	IP66 IP67 IP69K	Retroreflective	-40 °C	60 °C	RED (650nm)	10 VDC	30 VDC
SICK, Inc. WL9-3P1232	196.85 in	5 m	Cable	PNP	5 m 196.85 in		500 µs		Retroreflective	-40 °C	60 °C	RED (650nm)	10 VDC	30 VDC	Adjustable
SICK, Inc. WL9-3N2462			Connector M12	NPN	40 cm	15.748 in	500 µs		Retroreflective	-40 °C	60 °C	RED (650nm)	10 VDC	30 VDC	Adjustable
SICK, Inc. 1065065	4.724 in	120 mm	Cable with Connector	PNP	2.5 m	98.425 in	500 µs	IP66 IP67 IP69K	Retroreflective	-40 °C	60 °C	RED (650nm)	10 VDC	30 VDC
SICK, Inc. WL9-3P3162	4.724 in	120 mm	Cable with Connector	PNP	40 cm	15.748 in	500 µs		Retroreflective	-40 °C	60 °C	RED (650nm)	10 VDC	30 VDC	Adjustable
SICK, Inc. WL9-3P2262			Connector M8	PNP	40 cm	15.748 in	500 µs		Retroreflective	-40 °C	60 °C	RED (650nm)	10 VDC	30 VDC	Adjustable
SICK, Inc. WL9-3P3462	4.724 in	120 mm	Cable with Connector	PNP	40 cm	15.748 in	500 µs		Retroreflective	-40 °C	60 °C	RED (650nm)	10 VDC	30 VDC	Adjustable

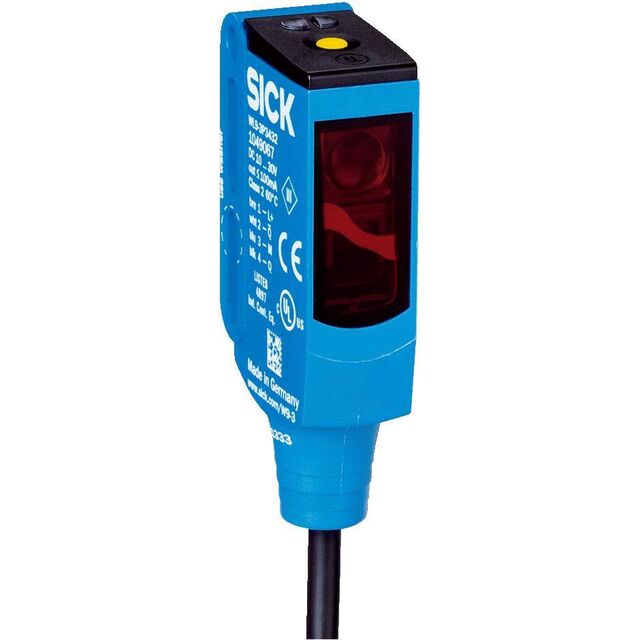

SICK, Inc. 1049067	4.724 in	120 mm	Cable with Connector	PNP	3 m	118.11 in	500 µs	IP66 IP67 IP69K	Retroreflective	-40 °C	60 °C	RED (650nm)	10 VDC	30 VDC	Adjustable
SICK, Inc. 1049054	78.74 "	2 m	Cable	PNP	40 cm	15.748 in	500 µs		Retroreflective	-40 °C	60 °C	RED (650nm)	10 VDC	30 VDC	Adjustable
SICK, Inc. 1049063			Connector M12 4POS	PNP - Dark-ON/Light-ON - Selectable			500 µs	IP66 IP67 IP69K	Retroreflective	-40 C	60 °C	Red LED	10 VDC	30 VDC		0 "	3 m	0 m	118.11 "
