DI-50 Series
Manufacturer: Texmate
Beta
⌘K
PROCESS DC VOLTAGE 2V, 20V OR 20
| Part | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Number of Characters Per Row | Termination Style | Display Characters - Height [z] | Display Characters - Height [z] | Features | Output Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Measuring Range [Max] | Measuring Range [Min] | Mounting Type | Type | Measuring Type | Measuring Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

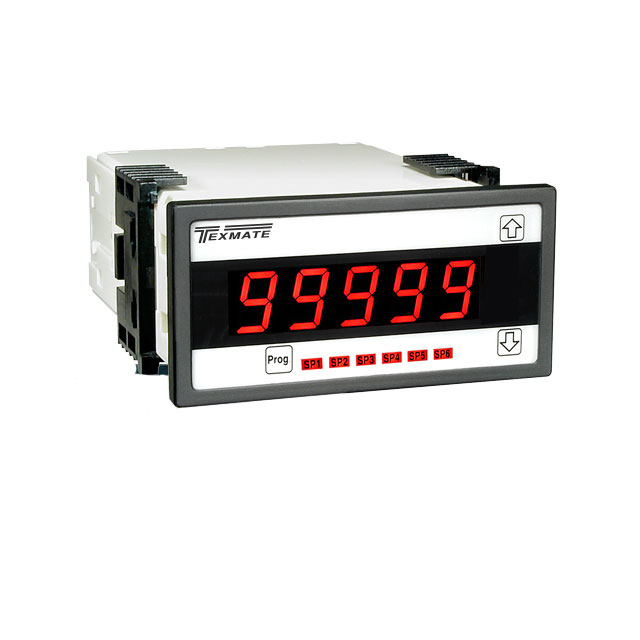

 Texmate | 45 mm | 92 mm | 5 | Plug In Screw Terminals | 14.22 mm | 0.56 in | Configuration Utility Software | Analog Relay (4) | 265 VAC 300 VDC | 85 VAC/DC 95 VDC | 200 V | 0 VDC | Panel Mount | Voltmeter | Voltage | |

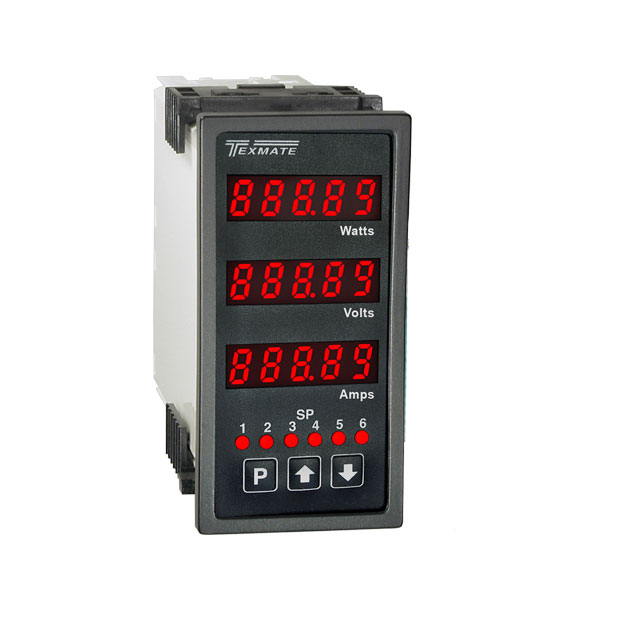

 Texmate | 45 mm | 92 mm | 5 | Plug In Screw Terminals | 11.1 mm | 0.437 " | Configuration Utility Software | Analog Relay (4) | 265 VAC 300 VDC | 85 VAC/DC 95 VDC | Panel Mount | Energy Monitor | Current Voltage Wattage | 5 A 600 V | ||
Texmate | 45 mm | 92 mm | 5 | Plug In Screw Terminals | 14.22 mm | 0.56 in | Configuration Utility Software | Analog Relay (4) | 265 VAC 300 VDC | 85 VAC/DC 95 VDC | 100 mV | 50 mV | Panel Mount | Voltmeter | Voltage |
