A10YBR-P Series
Manufacturer: ODU
Beta
⌘K

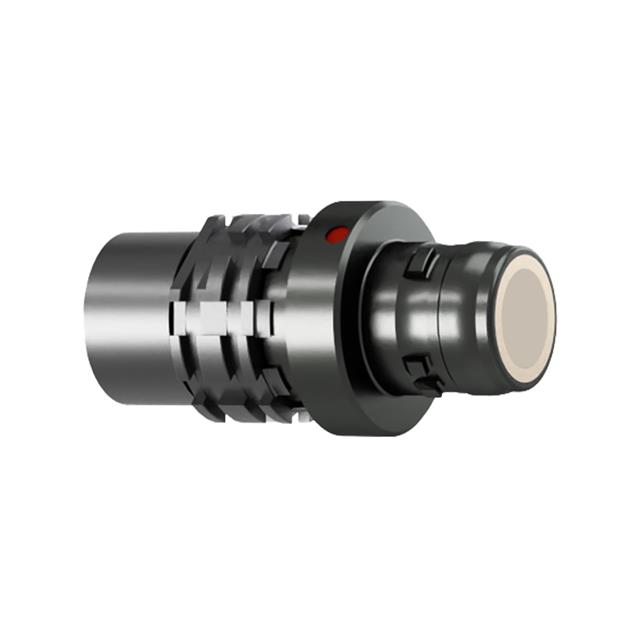

ODU AMC PLUG, BREAK APART, SZ 0,
| Part | Cable Opening | Cable Opening | Operating Temperature [Min] | Operating Temperature [Max] | Backshell Material, Plating | Fastening Type | Shielding | Orientation | Shell Finish | Color | Shell Size - Insert [custom] | Applications | Mounting Type | Ingress Protection | Connector Type | Material Flammability Rating | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Insert Material | Number of Positions | Contact Finish - Mating | Contact Material | Voltage Rating | Primary Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.217 in | 5.5 mm | -51 °C | 125 °C | Aluminum Ruthenium over Electroless Nickel | Push-Pull | Shielded | B | Ruthenium over Electroless Nickel | Silver | 0 | Industrial Medical Military | Free Hanging (In-Line) | IP68 IP69K | Plug Male Pins | UL94 V-0 | Aluminum | 50 µin | 1.27 µm | Backshell | Polyetheretherketone (PEEK) | 7 | Gold | Copper Alloy | 300 VDC | Metal | 5 A | |
0.217 in | 5.5 mm | -51 °C | 125 °C | Aluminum Ruthenium over Electroless Nickel | Push-Pull | Shielded | B | Ruthenium over Electroless Nickel | Silver | 0 | Industrial Medical Military | Free Hanging (In-Line) | IP68 IP69K | Plug Male Pins | UL94 V-0 | Aluminum | 50 µin | 1.27 µm | Backshell | Polyetheretherketone (PEEK) | 7 | Gold | Copper Alloy | 300 VDC | Metal | 2 A | |
0.217 in | 5.5 mm | -51 °C | 125 °C | Aluminum Ruthenium over Electroless Nickel | Push-Pull | Shielded | B | Ruthenium over Electroless Nickel | Silver | 0 | Industrial Medical Military | Free Hanging (In-Line) | IP68 IP69K | Plug Male Pins | UL94 V-0 | Aluminum | 50 µin | 1.27 µm | Backshell | Polyetheretherketone (PEEK) | 9 | Gold | Copper Alloy | 200 V | Metal | 5 A | |
0.217 in | 5.5 mm | -51 °C | 125 °C | Aluminum Ruthenium over Electroless Nickel | Push-Pull | Shielded | B | Ruthenium over Electroless Nickel | Silver | 0 | Industrial Medical Military | Free Hanging (In-Line) | IP68 IP69K | Plug Male Pins | UL94 V-0 | Aluminum | 50 µin | 1.27 µm | Backshell | Polyetheretherketone (PEEK) | 10 | Gold | Copper Alloy | 200 V | Metal | 5 A | |
0.217 in | 5.5 mm | -51 °C | 125 °C | Aluminum Ruthenium over Electroless Nickel | Push-Pull | Shielded | B | Ruthenium over Electroless Nickel | Silver | 0 | Industrial Medical Military | Free Hanging (In-Line) | IP68 IP69K | Plug Male Pins | UL94 V-0 | Aluminum | 50 µin | 1.27 µm | Backshell | Polyetheretherketone (PEEK) | 4 | Gold | Copper Alloy | 300 VDC | Metal | 7 A |
