CKM13EFW Series
Manufacturer: NKK Switches
Beta
⌘K

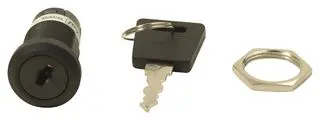

KEYLOCK SWITCH, ON-OFF-ON, SPDT, CK SERIES, 3 POSITION, SOLDER, 3 A
| Part | Electrical Life | Depth Behind Flange | Mechanical Life | Angle of Throw | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Termination Style | Key Removable Positions | Contact Finish | Contact Timing | Contact Material | Voltage Rating - AC | Mounting Type | Switch Function | Current Rating (Amps) | Features | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Cycles | 31.2 mm | 30000 Steps | 45 ° | 16 mm | -25 °C | 70 °C | SPDT | Solder Lug | 2 | Silver | Non-Shorting (BBM) | Silver (Ag) | 250 V | Panel Mount | On-Off-On | 3 A | Epoxy Sealed Terminals | Flat Key |
 NKK Switches | 10000 Cycles | 31.2 mm | 30000 Steps | 45 ° | 16 mm | -25 °C | 70 °C | SPDT | Solder Lug | 2 | Silver | Non-Shorting (BBM) | Silver (Ag) | 250 V | Panel Mount | On-Off-On | 3 A | Epoxy Sealed Terminals | Flat Key |
NKK Switches | 10000 Cycles | 31.2 mm | 30000 Steps | 45 ° | 16 mm | -25 °C | 70 °C | SPDT | Solder Lug | 2 | Silver | Non-Shorting (BBM) | Silver (Ag) | 250 V | Panel Mount | On-Off-On | 3 A | Epoxy Sealed Terminals | Flat Key |
NKK Switches | 10000 Cycles | 31.2 mm | 30000 Steps | 45 ° | 16 mm | -25 °C | 70 °C | SPDT | Solder Lug | 2 | Silver | Non-Shorting (BBM) | Silver (Ag) | 250 V | Panel Mount | On-Off-On | 3 A | Epoxy Sealed Terminals | Flat Key |
NKK Switches | 10000 Cycles | 31.2 mm | 30000 Steps | 45 ° | 16 mm | -25 °C | 70 °C | SPDT | Solder Lug | 2 | Silver | Non-Shorting (BBM) | Silver (Ag) | 250 V | Panel Mount | On-Off-On | 3 A | Epoxy Sealed Terminals | Flat Key |
