1478966 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

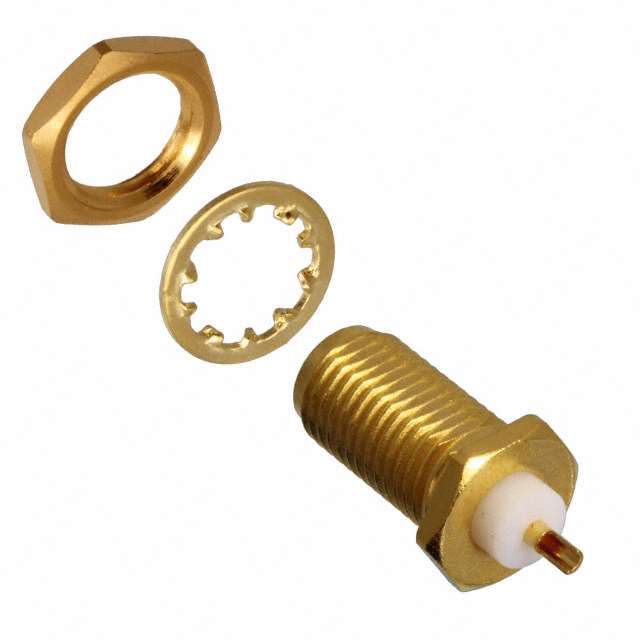

CONN SMA 0HZ TO 26GHZ 50OHM SOLDER ST PANEL MOUNT RCP GOLD OVER NICKEL OVER COPPER BOX
| Part | Body Material | Connector Style | Number of Ports | Connector Type | Frequency - Max [Max] | Contact Termination | Housing Color | Mounting Feature | Center Contact Plating | Center Contact Material | Shield Termination | Mating Cycles | Includes | Dielectric Material | Features | Impedance | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Stainless Steel | SMA | 1 | Female Socket Receptacle | 18 GHz | Solder Cup | Gold | Bulkhead - Front Side Nut | Gold | Beryllium Copper | Solder | 500 | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Extended Insulation | 50 Ohms | Gold |
