MA01R Series

Catalog

CONN RIGID SIDE R/A 120 POS

Part	Connector Type	Height Above Board [z]	Height Above Board [z]	Mounting Type	Features	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Pitch	Pitch	Mated Stacking Heights	Height Above Board	Height Above Board
JAE Electronics MA01R120HAYBR600	Receptacle Outer Shroud Contacts	6.6 mm	0.26 in	Right Angle Surface Mount	Board Guide Solder Retention	2	0.1 Ám	4 Áin	120	Gold	0.64 mm	0.025 in
JAE Electronics MA01R030VANBR200	Receptacle Outer Shroud Contacts	16.6 mm	0.654 in	Surface Mount	Board Guide Solder Retention	2	0.1 Ám	4 Áin	30	Gold	0.64 mm	0.025 in	18 mm 24 mm 30 mm

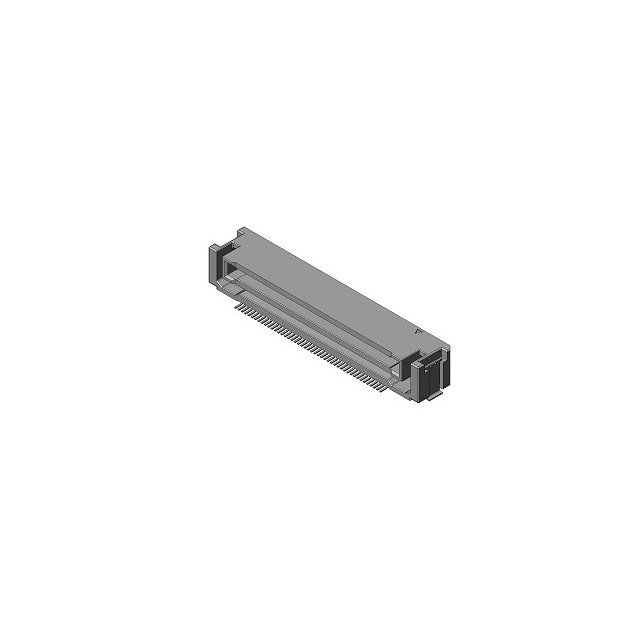

JAE Electronics MA01R090HAYBR600	Receptacle Outer Shroud Contacts	6.6 mm	0.26 in	Right Angle Surface Mount	Board Guide	2	0.1 Ám	4 Áin	90	Gold	0.64 mm	0.025 in
JAE Electronics MA01R080VABBR600	Receptacle Outer Shroud Contacts	6.6 mm	0.26 in	Surface Mount	Board Guide	2	0.1 Ám	4 Áin	80	Gold	0.64 mm	0.025 in	14 mm

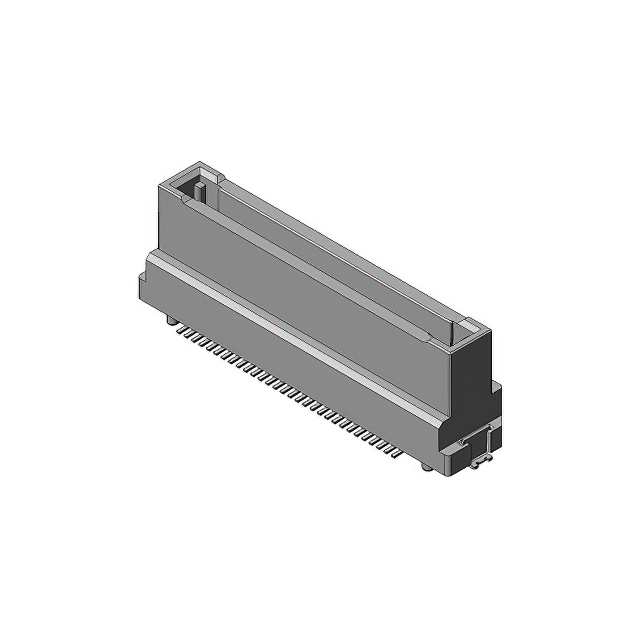

JAE Electronics MA01R060VADBR500	Receptacle Outer Shroud Contacts			Surface Mount	Board Guide Solder Retention	2	0.1 Ám	4 Áin	60	Gold	0.64 mm	0.025 in	10 mm 16 mm 22 mm	0.339 in	8.6 mm
JAE Electronics MA01R100HAYBR600	Receptacle Outer Shroud Contacts	6.6 mm	0.26 in	Right Angle Surface Mount	Board Guide	2	0.1 Ám	4 Áin	100	Gold	0.64 mm	0.025 in

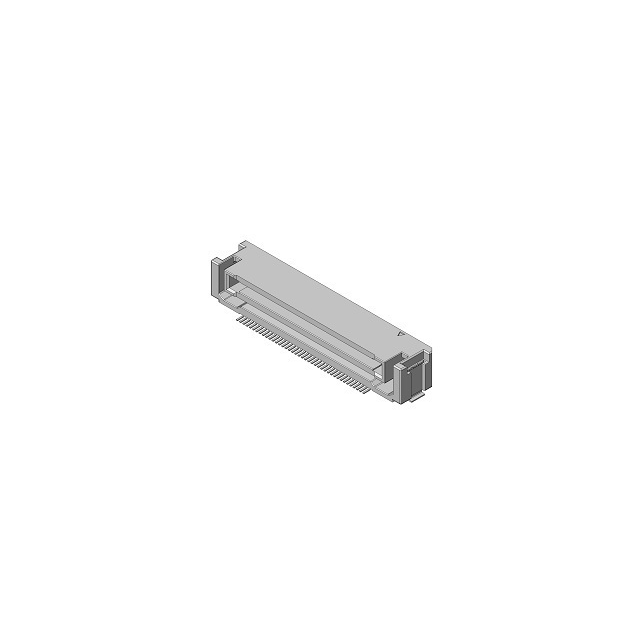

JAE Electronics MA01R080HAYBR600	Receptacle Outer Shroud Contacts	6.6 mm	0.26 in	Right Angle Surface Mount	Board Guide	2	0.1 Ám	4 Áin	80	Gold	0.64 mm	0.025 in

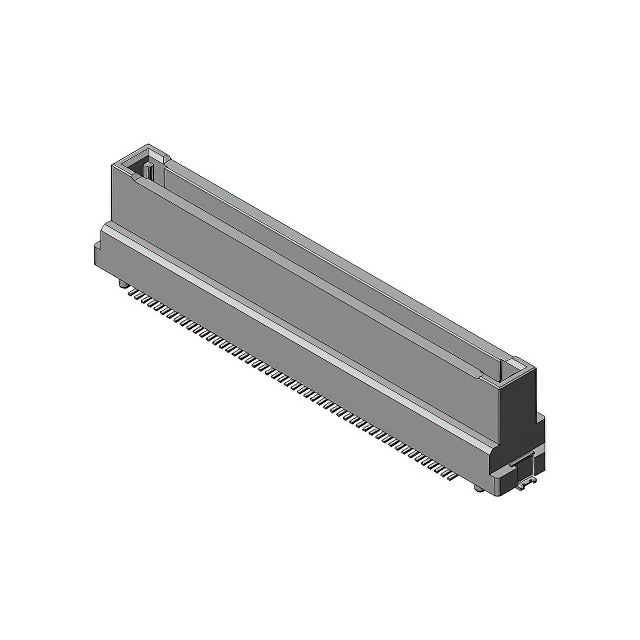

JAE Electronics MA01R100VADBR500	Receptacle Outer Shroud Contacts			Surface Mount	Board Guide Solder Retention	2	0.1 Ám	4 Áin	100	Gold	0.64 mm	0.025 in	10 mm 16 mm 22 mm	0.339 in	8.6 mm

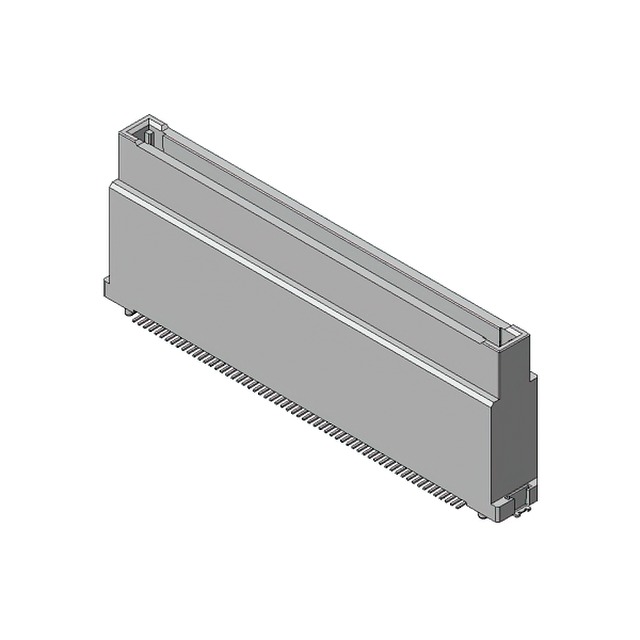

JAE Electronics MA01R120VANBR200	Receptacle Outer Shroud Contacts	16.6 mm	0.654 in	Surface Mount	Board Guide Solder Retention	2	0.1 Ám	4 Áin	120	Gold	0.64 mm	0.025 in	18 mm 24 mm 30 mm

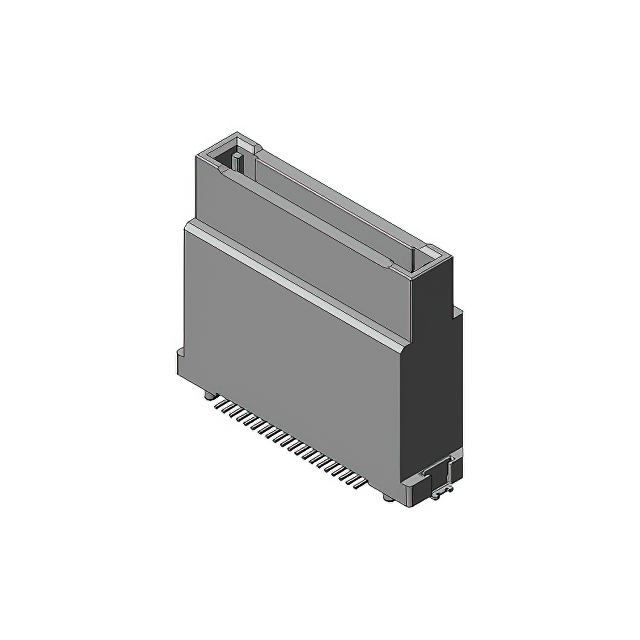

JAE Electronics MA01R040VANBR200	Receptacle Outer Shroud Contacts	16.6 mm	0.654 in	Surface Mount	Board Guide Solder Retention	2	0.1 Ám	4 Áin	40	Gold	0.64 mm	0.025 in	18 mm 24 mm 30 mm
