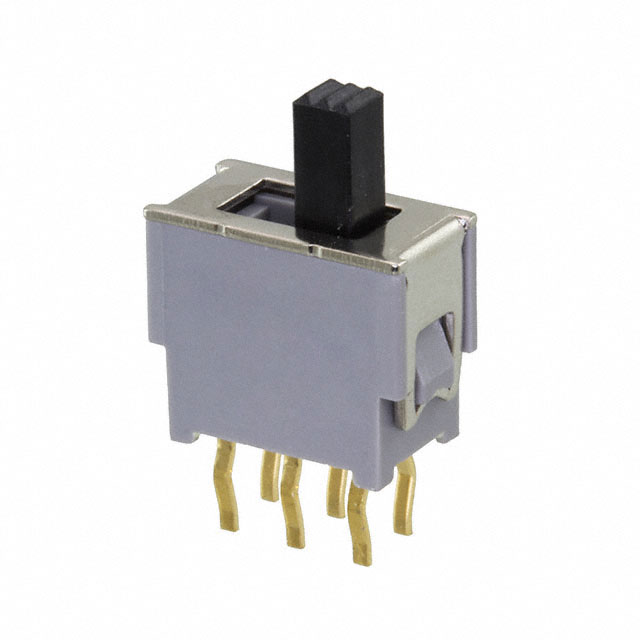

AS2D-2M Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SLIDE SWITCH, DPDT, 0.05A, 60V, TH
| Part | Electrical Life | Switch Travel | Operating Force [Min] | Operating Force [Max] | Termination Style | Voltage Rating - DC | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Switch Function | Actuator Length [x] | Contact Finish | Contact Timing | Current Rating (Amps) | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 10000 Cycles | 2.2 mm | 70 gf | 500 gf | PC Pin | 48 V | Through Hole | 85 °C | -20 ░C | 48 V | On-On | 4.3 mm | Gold | Non-Shorting (BBM) | 50 mA | Standard | DPDT |
