ECC09 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 18POS 0.100

Part	Material - Insulation	Pitch	Pitch	Card Thickness	Card Thickness	Number of Positions	Gender	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Rows [custom]	Read Out	Termination	Color	Features
Sullins Connector Solutions ECC09DJBN	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	1.57 mm	0.062 in	18	Female	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	9	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	2	Dual	Press-Fit	Black
Sullins Connector Solutions ECC09DJXN	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	1.57 mm	0.062 in	18	Female	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	9	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	2	Dual	Press-Fit	Black
Sullins Connector Solutions ECC09DJXN-S1136	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	1.57 mm	0.062 in	18	Female	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	9	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	2	Dual	Press-Fit	Black	Scoops
Sullins Connector Solutions ECC09DJBN-S1136	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	1.57 mm	0.062 in	18	Female	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	9	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	2	Dual	Press-Fit	Black	Scoops
Sullins Connector Solutions ECC09DJCB	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	1.57 mm	0.062 in	18	Female	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	9	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	2	Dual	Press-Fit	Black	Open Card Slot

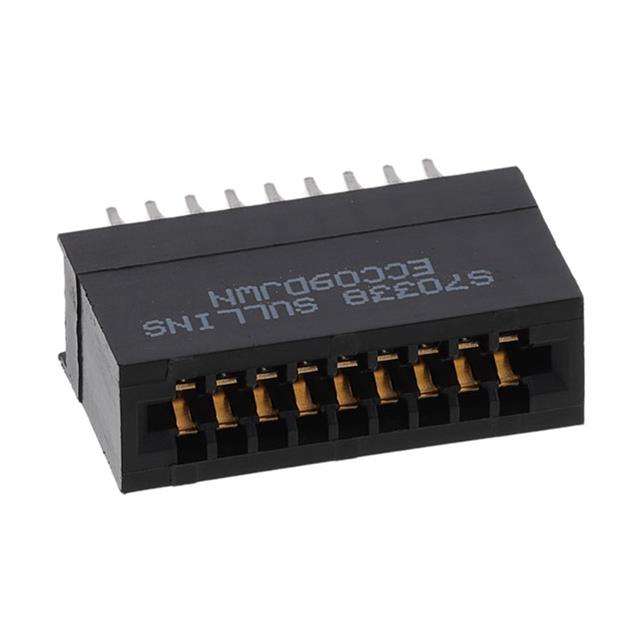

Sullins Connector Solutions ECC09DJWN	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	1.57 mm	0.062 in	18	Female	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	9	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	2	Dual	Press-Fit	Black
Sullins Connector Solutions ECC09DJCN-S1136	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	1.57 mm	0.062 in	18	Female	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	9	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	2	Dual	Press-Fit	Black	Scoops
Sullins Connector Solutions ECC09DJWN-S1136	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	1.57 mm	0.062 in	18	Female	Phosphor Bronze	Through Hole	30 Áin	0.76 Ám	9	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	2	Dual	Press-Fit	Black	Scoops
