PNDT006 Series

Catalog

DC DC CONVERTER 0.45-5.5V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Applications	Voltage - Input (Min) [Min]	Mounting Type	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Control Features	Package / Case	Number of Outputs	Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Efficiency

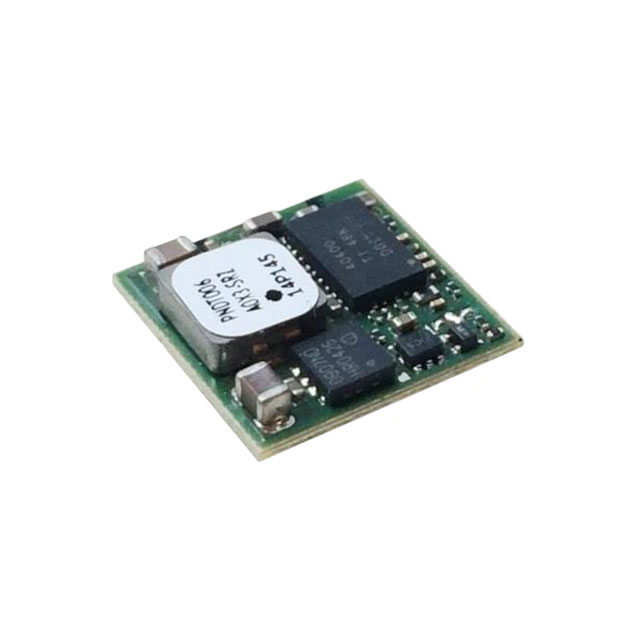

OmniOn Power™ PNDT006A0X3-SRZ	12.2 mm	0.48 in	0.48 in	2.8 mm	0.11 "	12.2 mm	ITE (Commercial)	3 V	Surface Mount	6 A	0.45 V	5.5 V	Active Low Enable	17-SMD Module	1	Non-Isolated PoL Module	14.4 V	85 °C	-40 C	OCP OTP OVP Remote On/Off UVLO	92.3 %
OmniOn Power™ PNDT006A0X3-SRZ	12.2 mm	0.48 in	0.48 in	2.8 mm	0.11 "	12.2 mm	ITE (Commercial)	3 V	Surface Mount	6 A	0.45 V	5.5 V	Active Low Enable	17-SMD Module	1	Non-Isolated PoL Module	14.4 V	85 °C	-40 C	OCP OTP OVP Remote On/Off UVLO	92.3 %
