9610 Series
Manufacturer: Belden Inc.
Beta
⌘K

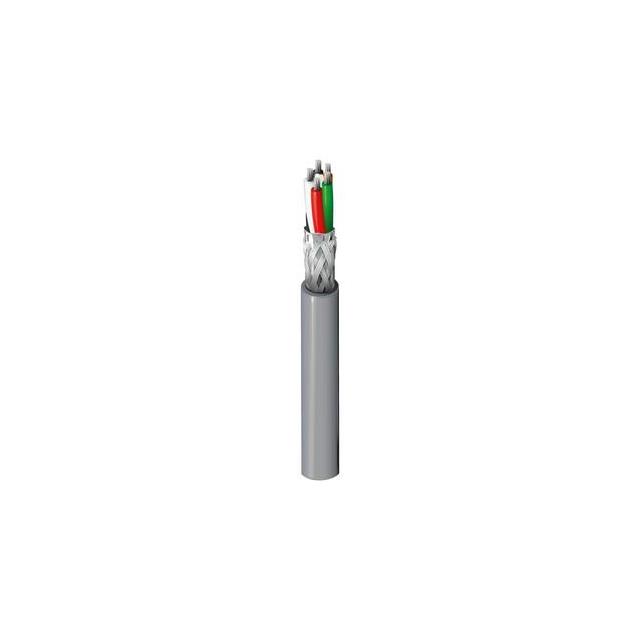

CABLE 5CON 24AWG CHROM SHLD 100'
| Part | Shield Coverage | Shield Material | Shield Type | Jacket Color | Number of Conductors | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Usage | Ratings | Wire Gauge | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | Chrome | 5 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.036 in | 0.914 mm | Multi-Conductor | 0.215 in | 5.46 mm | 100 ft | 30.5 m | Computer | UL Style 2464 | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 80 °C | -30 ░C | |||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | Chrome | 5 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.036 in | 0.914 mm | Multi-Conductor | 0.215 in | 5.46 mm | Computer | UL Style 2464 | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 80 °C | -30 ░C | 300 VDC | 304.8 m | 1000 ft |
