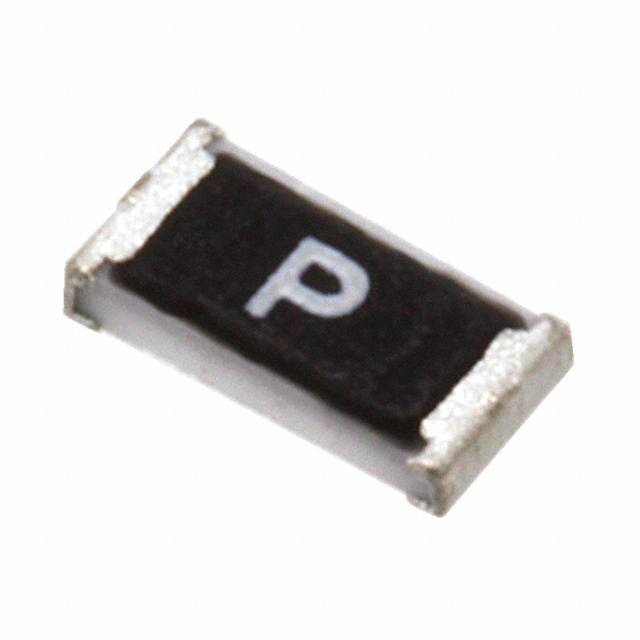

ERB-RG Series

Catalog

FUSE BOARD MNT 500MA 63VDC 1206

Part	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Fuse Type	Mounting Type	Breaking Capacity @ Rated Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Amps)	Approval Agency	Response Time
Panasonic Industrial Automation Sales ERB-RG0R50V	1206 (3216 Metric)	0.126 in	0.026 in	3.2 mm	0.063 in	1.6 mm	0.65 mm	Board Mount	Surface Mount	50 A	125 °C	-40 °C	63 VDC	0.5 A	cUL UL	Fast Blow
Panasonic Industrial Automation Sales ERB-RG1R00V	1206 (3216 Metric)	0.126 in	0.026 in	3.2 mm	0.063 in	1.6 mm	0.65 mm	Board Mount	Surface Mount	50 A	125 °C	-40 °C	63 VDC	1 A	cUL UL	Fast Blow
Panasonic Industrial Automation Sales ERB-RG3R00V	1206 (3216 Metric)	0.126 in	0.026 in	3.2 mm	0.063 in	1.6 mm	0.65 mm	Board Mount	Surface Mount	50 A	125 °C	-40 °C	32 V	3 A	cUL UL	Fast Blow
Panasonic Industrial Automation Sales ERB-RG2R00V	1206 (3216 Metric)	0.126 in	0.026 in	3.2 mm	0.063 in	1.6 mm	0.65 mm	Board Mount	Surface Mount	50 A	125 °C	-40 °C	63 VDC	2 A	cUL UL	Fast Blow
