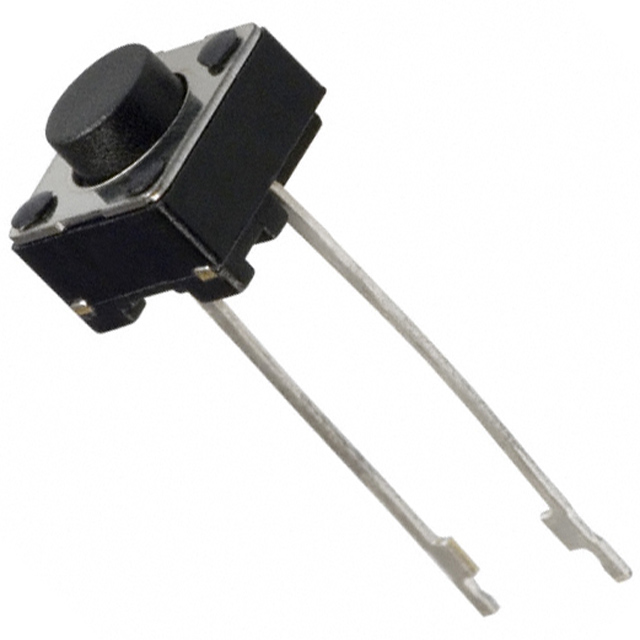

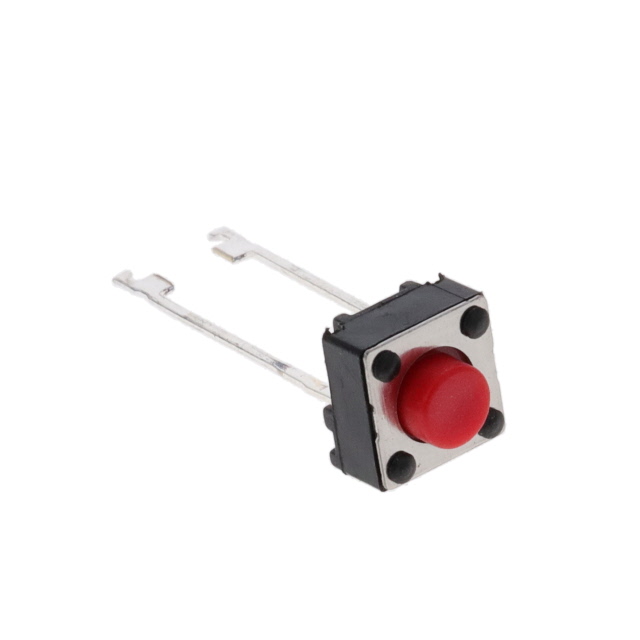

TL59A Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Actuator Material | Outline [x] | Outline [y] | Circuit | Mounting Type | Actuator Height off PCB, Vertical [z] | Actuator Orientation | Illumination | Termination Style | Actuator Type | Switch Function | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.25 mm | 100000 Cycles | Polybutylene Terephthalate (PBT) | 6.2 mm | 6.2 mm | SPST-NO | Through Hole | 5 mm | Top Actuated | Non-Illuminated | PC Pin | Standard | Off-Mom | 260 gf | -20 ░C | 70 °C | 0.05 A 12 VDC |
 E-Switch | 0.25 mm | 100000 Cycles | Polybutylene Terephthalate (PBT) | 6.2 mm | 6.2 mm | SPST-NO | Through Hole | 5 mm | Top Actuated | Non-Illuminated | PC Pin | Standard | Off-Mom | 160 gf | -20 ░C | 70 °C | 0.05 A 12 VDC |
