8059-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

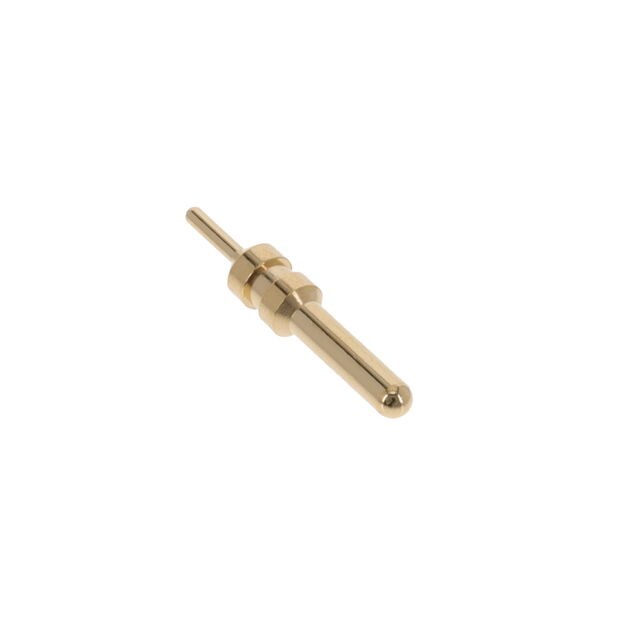

SOLDER MOUNT PCB PIN
| Part | Contact Material | Termination | Terminal Style | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Pin Size - Below Flange | Pin Size - Below Flange | Insulation | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | Solder | Double End | Gold | 0.034 in | 0.86 mm | 13.97 mm | 0.55 in | 0.03 in | 0.76 mm | 1.58 mm | 0.062 in | Non-Insulated | 0.25 Ám | 10 Áin | PC Pin | 6.86 mm | 0.27 in | 0.098 in | 2.49 mm | Through Hole |
