PPTC202 Series

Catalog

CONN HDR 40POS 0.1 TIN PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Connector Type	Contact Type	Insulation Color	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Termination	Insulation Height [z]	Insulation Height [z]	Fastening Type	Voltage Rating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Rows [custom]	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height
Sullins Connector Solutions PPTC202LJBN-RC	Phosphor Bronze	Square	Polyester	Header	Female Socket	Black	UL94 V-0	0.1 in	2.54 mm	0.124 in	3.15 mm	3 A	Solder	0.2 in	5.08 mm	Push-Pull	250 V	40	-40 C	105 ░C	Tin	0.1 "	2.54 mm	All	2	Right Angle Through Hole

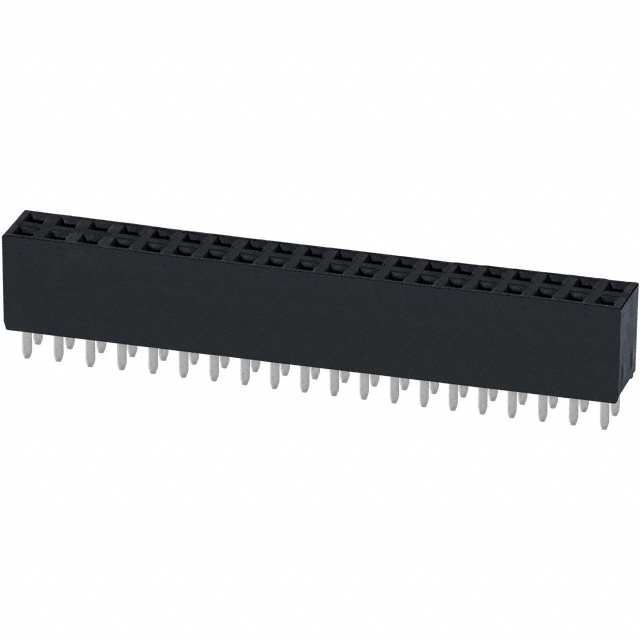

Sullins Connector Solutions PPTC202LFBN	Phosphor Bronze	Square	Polyester	Header	Female Socket	Black	UL94 V-0	0.1 in	2.54 mm			3 A	Solder			Push-Pull	250 V	40	-40 C	105 ░C	Tin	0.1 "	2.54 mm	All	2	Through Hole	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPTC202KFMS	Phosphor Bronze	Square	Polyester	Header	Female Socket	Black	UL94 V-0	0.1 in	2.54 mm			3 A	Solder	0.299 "		Push-Pull	250 V	40	-40 C	125 °C	Tin	0.1 "	2.54 mm	All	2	Surface Mount				7.6 mm
