9314 Series
Manufacturer: Belden Inc.
Beta
⌘K

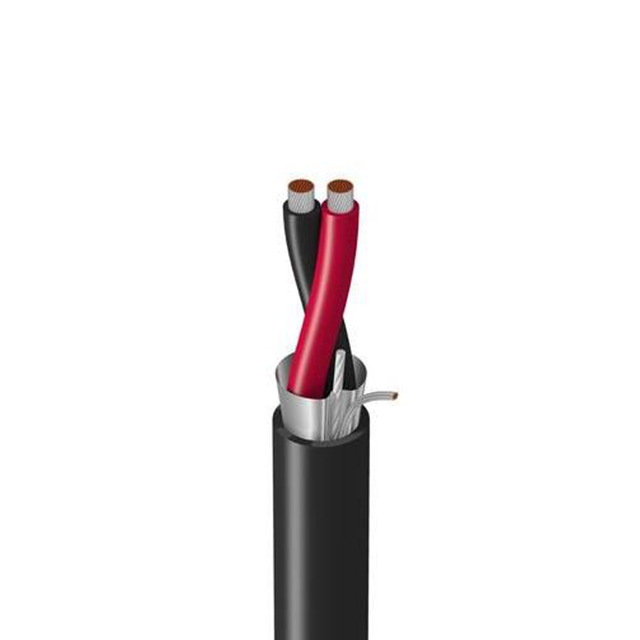

CABLE 2COND 14AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Features | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Usage | Length | Length | Shield Type | Voltage | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Number of Conductors | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Drain Wire Rip Cord | 14.5 AWG | 42 | 30 AWG | 0.042 in | 1.067 mm | Chrome | Instrumentation | 304.8 m | 1000 ft | Foil | 300 VDC | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | 0.325 in | 8.26 mm | Copper Tinned |
