GPI-151 Series
Manufacturer: CW Industries
Beta
⌘K

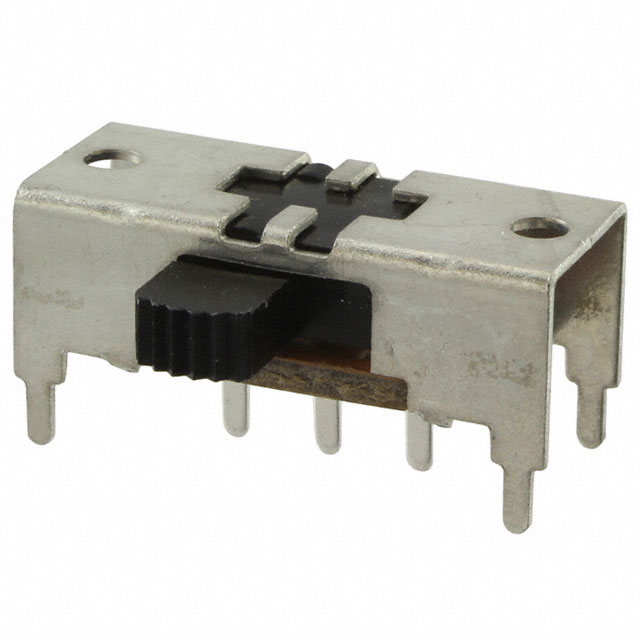

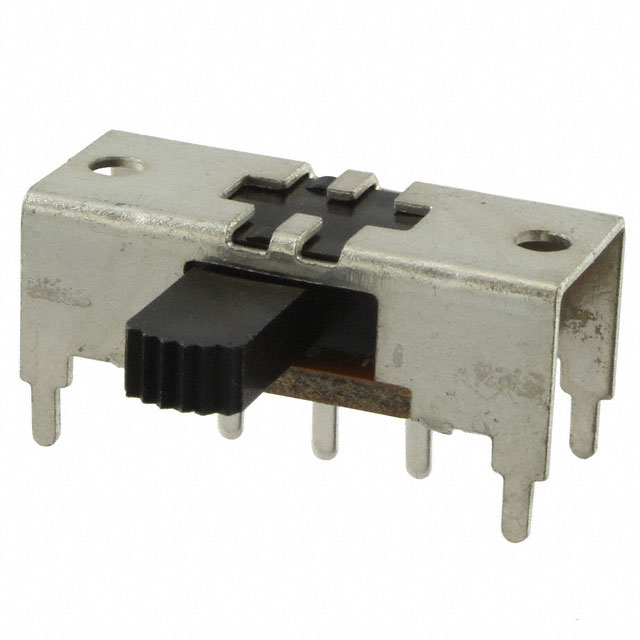

SWITCH SLIDE SPDT 500MA 125V
| Part | Actuator Material | Electrical Life | Mechanical Life | Switch Travel | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Contact Material | Voltage Rating - AC | Contact Finish | Contact Timing | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Switch Function | Circuit | Actuator Length [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | 3.3 mm | 500 mA | 125 VDC | Standard | Copper | 125 V | Silver | Not Specified | -10 °C | 104 °C | PC Pin | On-On | SPDT | 5.08 mm | Right Angle Through Hole |
 CW Industries | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | 3.3 mm | 500 mA | 125 VDC | Standard | Copper | 125 V | Silver | Not Specified | -10 °C | 104 °C | PC Pin | On-On | SPDT | 8.33 mm | Right Angle Through Hole |
