AWH 64 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

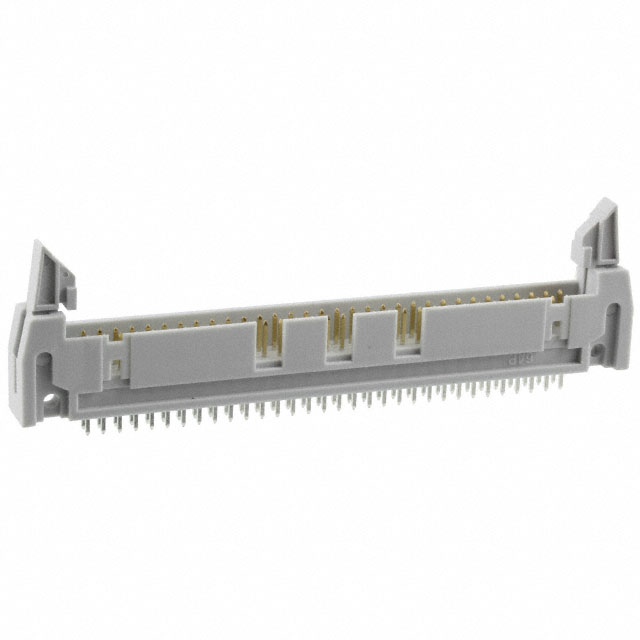

CONN HEADER VERT 64POS 2.54MM
| Part | Termination | Contact Type | Contact Material | Contact Finish Thickness - Mating | Shrouding | Contact Shape | Features | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Style | Insulation Material | Number of Positions | Contact Length - Post | Contact Length - Post | Mounting Type | Insulation Height | Insulation Height | Contact Finish - Mating | Number of Rows [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Current Rating (Amps) | Contact Finish - Post | Number of Positions Loaded | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Solder | Male Pin | Brass | Flash | Shrouded - 4 Wall | Square | Keying Slot | Latch Lock/Eject Hooks | -40 C | 105 ░C | Header | 0.1 " | 2.54 mm | UL94 V-0 | Board to Cable/Wire | Polybutylene Terephthalate (PBT) Glass Filled | 64 | 0.13 " | 3.3 mm | Through Hole | 17 mm | 0.669 in | Gold | 2 | 0.1 in | 2.54 mm | 3 A | Tin | All | Gray |
