TA2-1A Series

Catalog

VAC SPST OFF-ON, SOLDER, 15/32

Part	Actuator Length	Panel Cutout Diameter	Panel Cutout Shape	Actuator Type	Termination Style	Switch Function	Mounting Type	Current Rating	Illumination	Voltage Rating - AC	Bushing Thread	Circuit	Operating Temperature (Min)	Operating Temperature (Max)	Quick Connect Size (0.250")	Voltage Rating - DC	Ingress Protection Description	Ingress Protection IP Rating	Electrical Life (Cycles)
Switch Components TA2-1A-AC-5	16.5 mm	12.2 mm	Circular	Standard Round	Solder Lug	On-Off	Panel Mount	12 A	Non-Illuminated	250 V	15/32-32	SPST
Switch Components TA2-1A-AC-1	16.5 mm	12.2 mm	Circular	Standard Round	Quick Connect	On-Off	Panel Mount	12 A	Non-Illuminated	250 V	15/32-32	SPST	0 °C	65 °C	0.25 in
Switch Components TA2-1A-DC-1-L	34.8 mm	12 mm	Circular	Standard Round	Screw Terminal	On-Off	Panel Mount	20 A 21 A	Non-Illuminated	125 V	15/32-32	SPST	0 °C	65 °C		14 V

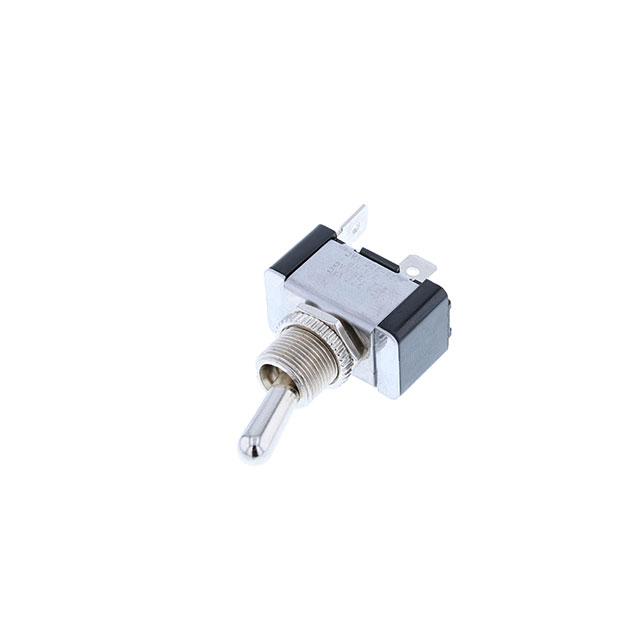

Switch Components TA2-1A-AC-1-O	16.5 mm	12.2 mm	Circular	Standard Round	Quick Connect	On-Off	Panel Mount	12 A	Non-Illuminated	250 V	15/32-32	SPST			0.25 in		Dust Protected Water Resistant	IP55
Switch Components TA2-1A-DC-1	16.5 mm	12 mm	Circular	Standard Round	Quick Connect	On-Off	Panel Mount	20 A 21 A	Non-Illuminated	125 V	15/32-32	SPST	-20 °C	85 °C	0.25 in	14 V			6000 Cycles

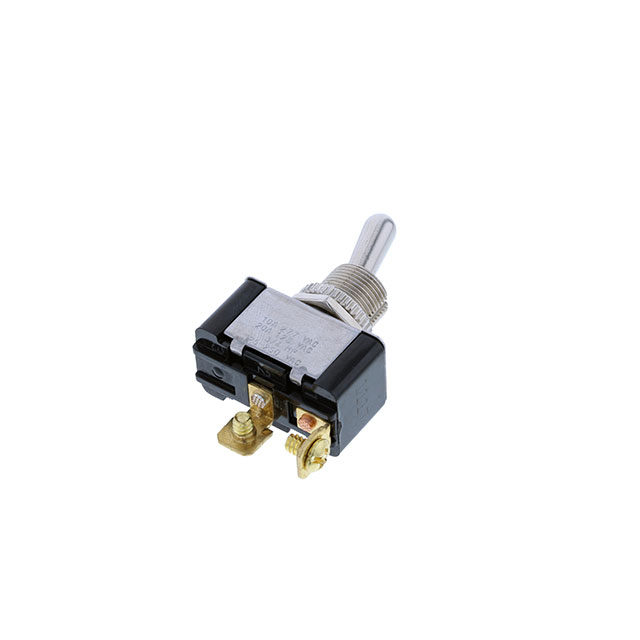

Switch Components TA2-1A-AC-6	16.5 mm	12.2 mm	Circular	Standard Round	Screw Terminal	On-Off	Panel Mount	12 A	Non-Illuminated	250 V	15/32-32	SPST	0 °C	65 °C
Switch Components TA2-1A-DC-1-O	16.5 mm	12 mm	Circular	Standard Round	Quick Connect	On-Off	Panel Mount	20 A 21 A	Non-Illuminated	125 V	15/32-32	SPST	-20 °C	85 °C	0.25 in	14 V	Dust Protected Water Resistant	IP55	6000 Cycles

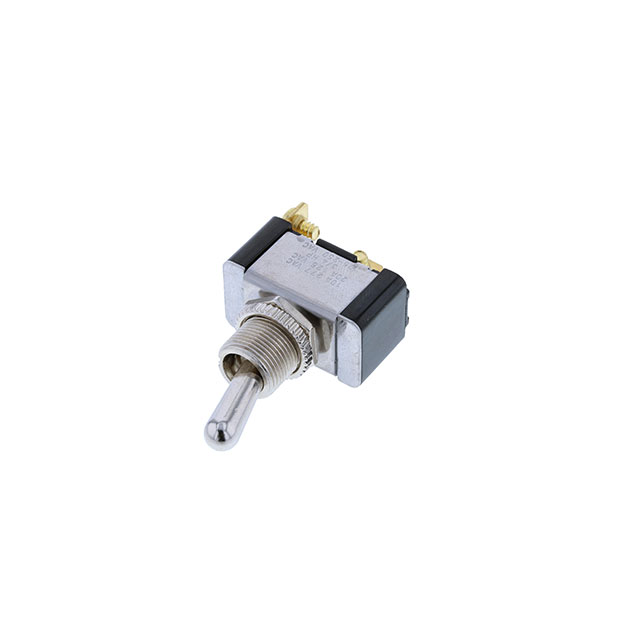

Switch Components TA2-1A-AC-6-O	16.5 mm	12.2 mm	Circular	Standard Round	Screw Terminal	On-Off	Panel Mount	12 A	Non-Illuminated	250 V	15/32-32	SPST					Dust Protected Water Resistant	IP55

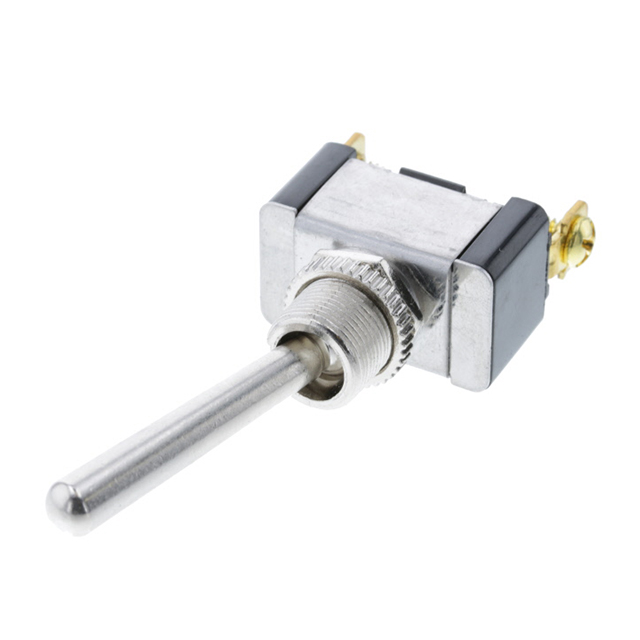

Switch Components TA2-1A-DC-6-L	34.8 mm	12 mm	Circular	Standard Round	Quick Connect	On-Off	Panel Mount	20 A 21 A	Non-Illuminated	125 V	15/32-32	SPST	0 °C	65 °C	0.25 in	14 V
Switch Components TA2-1A-AC-6-L	34.8 mm	12.2 mm	Circular	Standard Round	Screw Terminal	On-Off	Panel Mount	12 A	Non-Illuminated	250 V	15/32-32	SPST
