2842151 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 20P,2MM,BRK HDR,DRRT,2.8,0.38AU,TB

Part	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Post	Number of Rows	Shrouding	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Contact Material	Number of Positions Loaded	Material Flammability Rating	Insulation Material	Mounting Type	Contact Shape	Contact Type	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Termination	Insulation Color	Current Rating (Amps)	Number of Positions
TE Connectivity Raychem Cable Protection 1-2842151-0	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in	2 çm	78.7 çin	Push-Pull	Tin	2	Unshrouded	20	15 µin	0.38 µm	Breakaway Header	0.079 in	2 mm	125 VAC	Copper Alloy	All	UL94 V-0	Thermoplastic	Through Hole Right Angle	Square	Male Pin	Gold	0.11 in	2.79 mm	0.079 in	2 mm	Solder	Black	2 A
TE Connectivity Raychem Cable Protection 2842151-5	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in	2 çm	78.7 çin	Push-Pull	Tin	2	Unshrouded	10	15 µin	0.38 µm	Breakaway Header	0.079 in	2 mm	125 VAC	Copper Alloy	All	UL94 V-0	Thermoplastic	Through Hole Right Angle	Square	Male Pin	Gold	0.11 in	2.79 mm	0.079 in	2 mm	Solder	Black	2 A

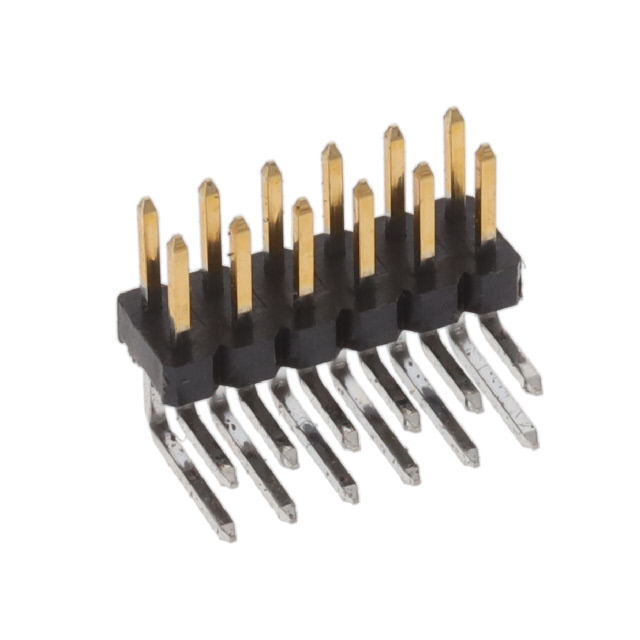

TE Connectivity Raychem Cable Protection 2842151-6	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in	2 çm	78.7 çin	Push-Pull	Tin	2	Unshrouded	12	15 µin	0.38 µm	Breakaway Header	0.079 in	2 mm	125 VAC	Copper Alloy	All	UL94 V-0	Thermoplastic	Through Hole Right Angle	Square	Male Pin	Gold	0.11 in	2.79 mm	0.079 in	2 mm	Solder	Black	2 A
TE Connectivity Raychem Cable Protection 2842151-8	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in	2 çm	78.7 çin	Push-Pull	Tin	2	Unshrouded		15 µin	0.38 µm	Breakaway Header	0.079 in	2 mm	125 VAC	Copper Alloy	All	UL94 V-0	Thermoplastic	Through Hole Right Angle	Square	Male Pin	Gold	0.11 in	2.79 mm	0.079 in	2 mm	Solder	Black	2 A	16

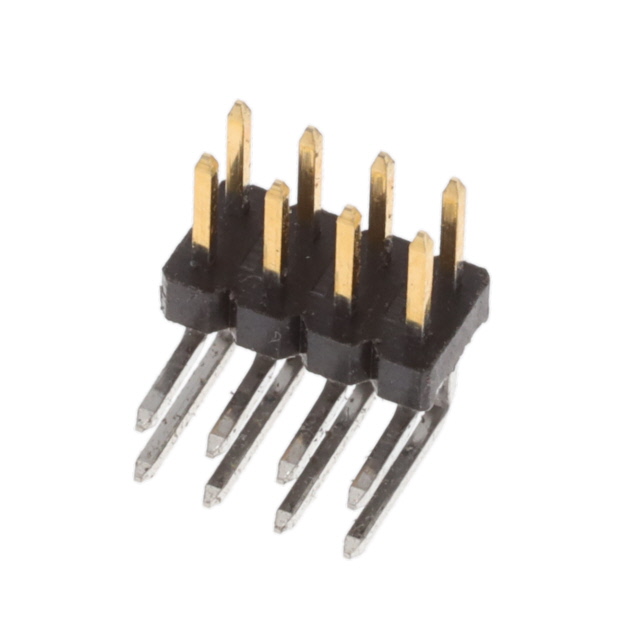

TE Connectivity Raychem Cable Protection 2842151-4	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in	2 çm	78.7 çin	Push-Pull	Tin	2	Unshrouded	8	15 µin	0.38 µm	Breakaway Header	0.079 in	2 mm	125 VAC	Copper Alloy	All	UL94 V-0	Thermoplastic	Through Hole Right Angle	Square	Male Pin	Gold	0.11 in	2.79 mm	0.079 in	2 mm	Solder	Black	2 A
