S06B-XAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

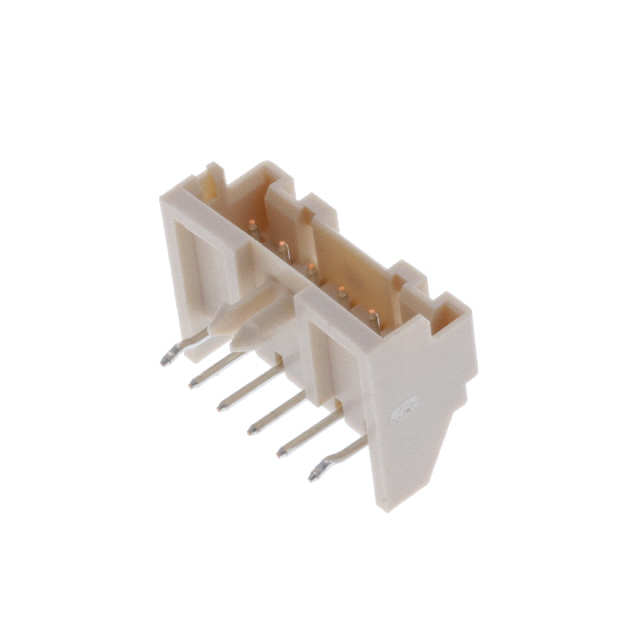

CONN HEADER R/A 6POS 2.5MM
| Part | Connector Type | Insulation Material | Voltage Rating | Number of Rows | Material Flammability Rating | Number of Positions Loaded | Shrouding | Contact Shape | Style | Insulation Height [z] | Insulation Height | Current Rating (Amps) | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Contact Material | Mounting Type | Insulation Color | Contact Finish - Post | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | 250 V | 1 | UL94 V-0 | All | Shrouded - 4 Wall | Circular | Board to Cable/Wire | 0.299 " | 7.6 mm | 3 A | Male Pin | 85 °C | -25 °C | Locking Ramp | Solder | 0.126 " | 3.2 mm | 2.5 mm | 0.098 in | Copper Alloy | Right Angle Through Hole | Natural | Tin | 6 | |
 JST Sales America Inc. | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | 250 V | 1 | UL94 V-0 | All | Shrouded - 4 Wall | Circular | Board to Cable/Wire | 0.299 " | 7.6 mm | 3 A | Male Pin | 85 °C | -25 °C | Locking Ramp | Press-Fit Solder | 0.126 " | 3.2 mm | 2.5 mm | 0.098 in | Copper Alloy | Right Angle Through Hole | Natural | Tin | 6 | Board Lock |
