3242 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN RING CIRC 400MCM #5/8 CRIMP
| Part | Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Type | Mounting Type | Contact Material | Wire Gauge | Contact Finish | Features | Stud/Tab Size | Termination | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Material - Insulation | Diameter - Barrel [diameter] | Diameter - Barrel [diameter] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Non-Insulated | 44.42 mm | 1.749 in | Circular | Free Hanging (In-Line) | Copper | 400 MCM (kcmil) | Tin | Brazed Seam | 0.625 Stud | Crimp | 2.79 in | 70.87 mm | ||||||

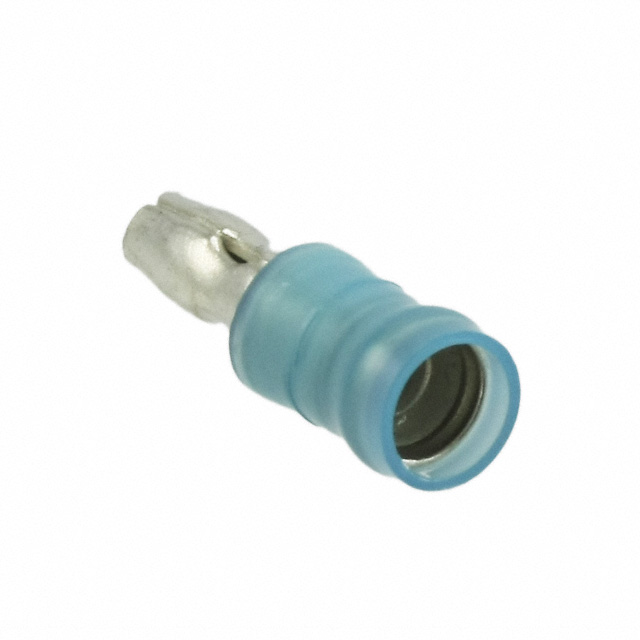

 TE Connectivity Raychem Cable Protection | Non-Mating End Insulated | Male Pin (Plug) | Copper | Tin | Crimp | 0.79 in | 20.07 mm | 0.115 in 2.92 mm | 0.17 " 4.32 mm | Nylon Polyamide (PA) | 4.09 mm | 0.161 in | Blue |
